Shacman
CLW
CLW5250JSQ5

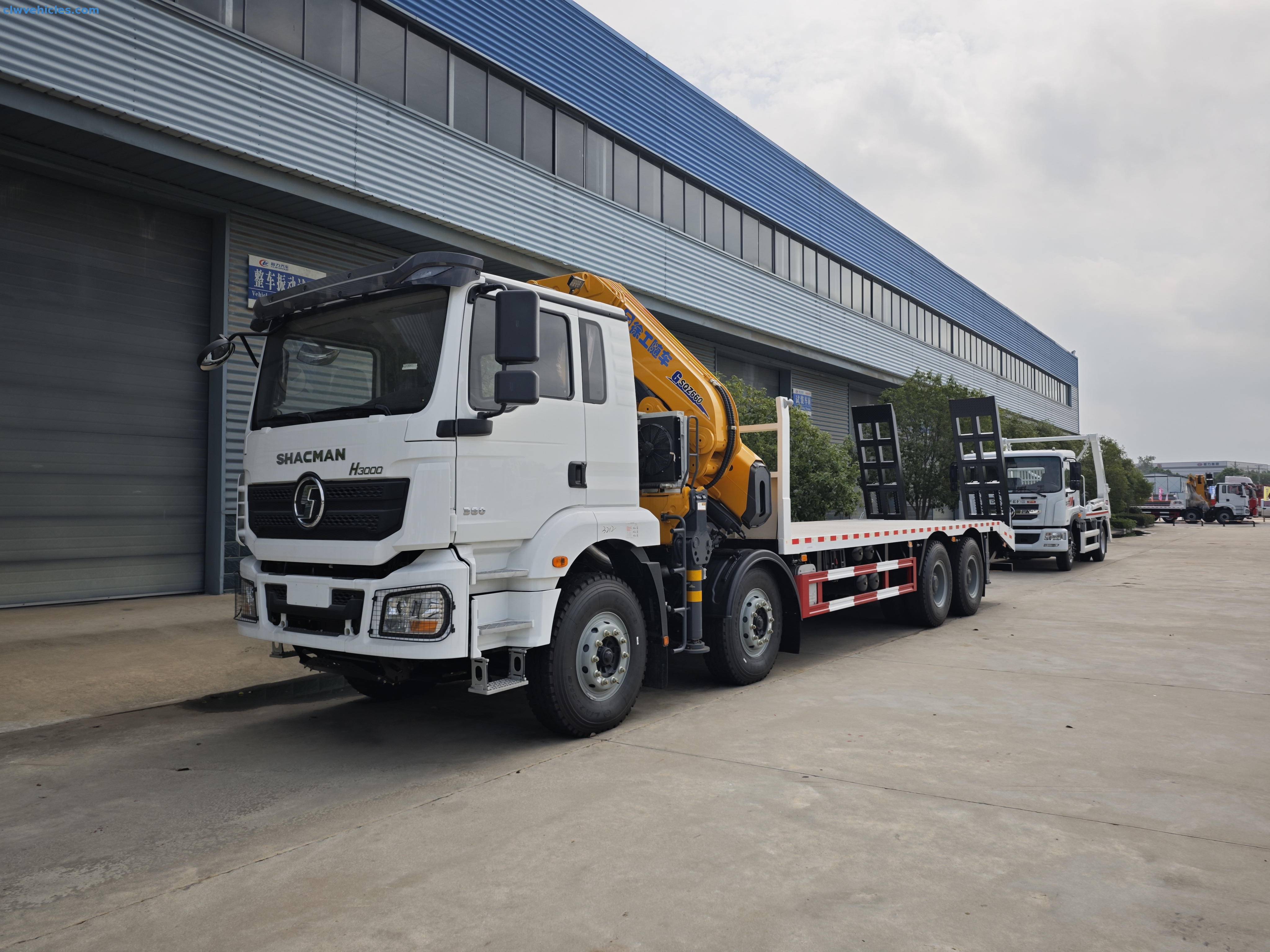

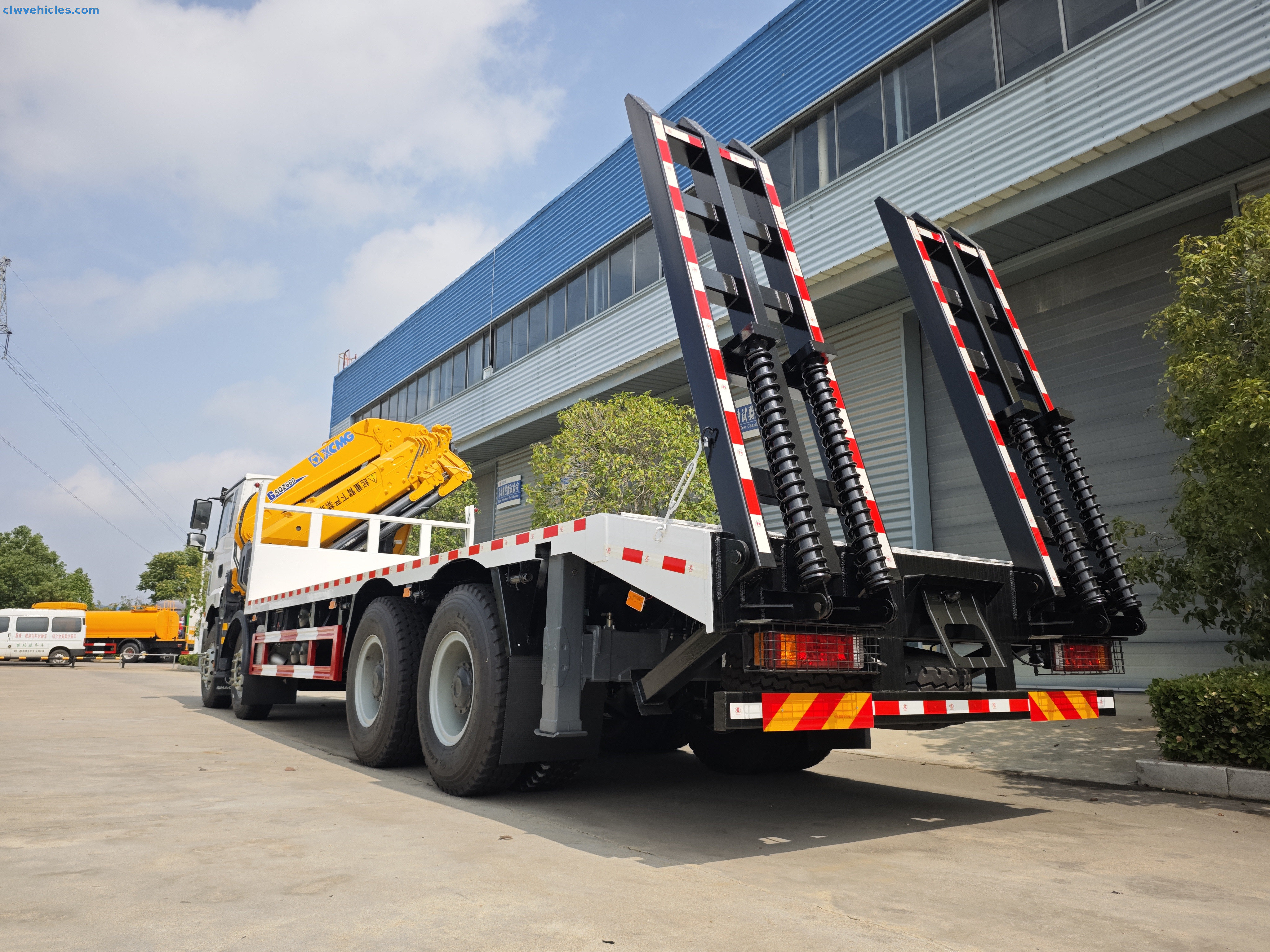

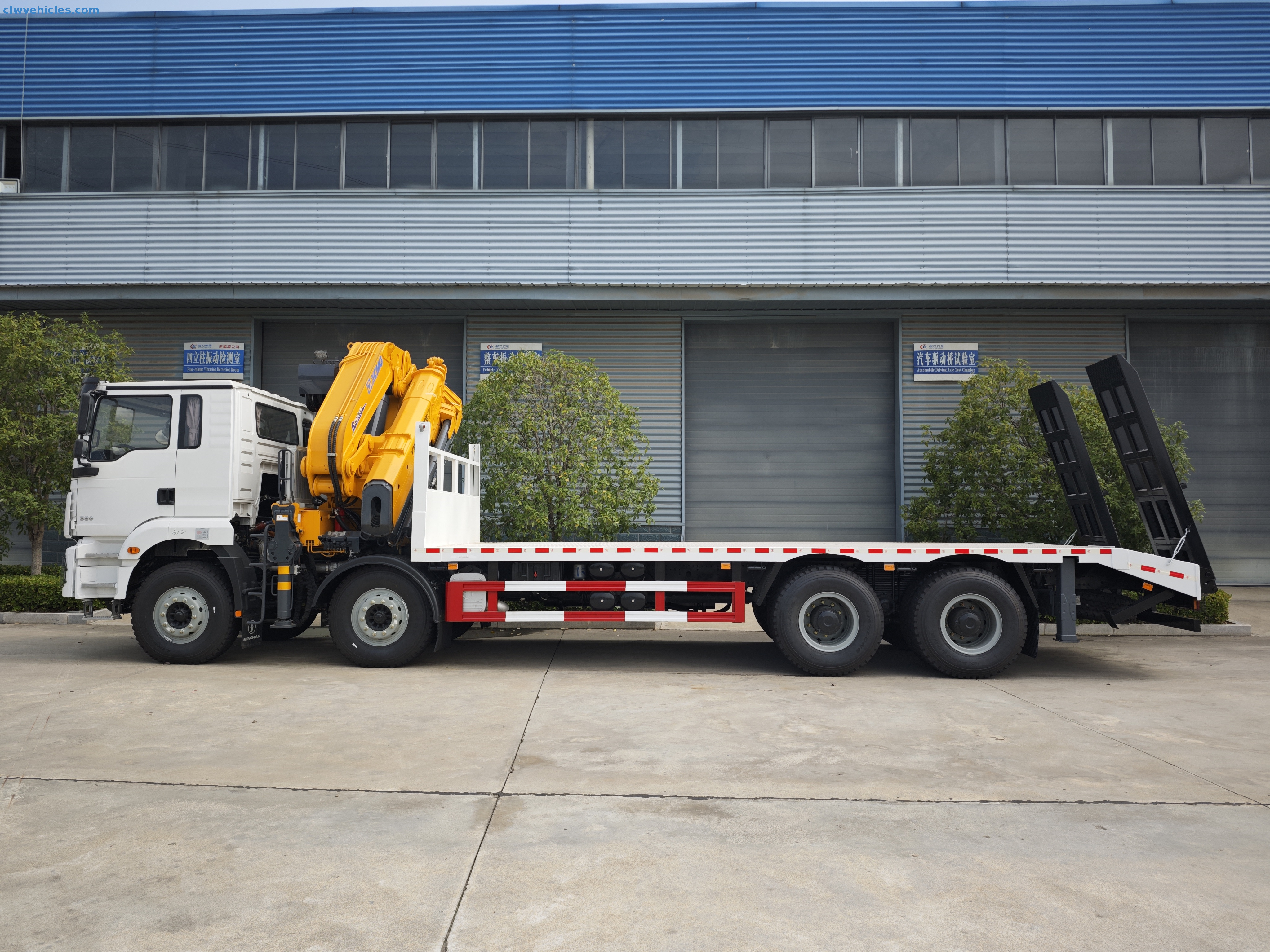

The Shacman H3000 8x4 Flatbed Truck with Knuckle Boom Crane is a high-performance heavy-duty vehicle designed for construction, logistics, utility, and infrastructure lifting operations. With a 33-ton lifting capacity and a robust Euro 3 WP12.380E32 diesel engine, it delivers superior reliability and flexibility for demanding job sites.
General Parameters
Driving Type: 8x4
Overall Dimension (mm): 12000 × 2550 × 3980
Cargo Box Size (mm): 8300 × 2450
Wheelbase (mm): 2100 + 4575 + 1400
GVW (kg): 31,000
Curb Weight (kg): 20,800
Max Speed (km/h): 85
Approach/Departure Angle (°): 16 / 10
Engine & Transmission
Engine Model: WP12.380E32, Euro 3
Type: 6-cylinder, in-line, supercharged intercooled
Displacement: 11.6L
Max Power: 380 hp (280 kW) @ 2200 rpm
Max Torque: 1600 N·m @ 1300–1400 rpm
Gearbox: FAST 12JSD200TA-B, 12 forward, 2 reverse, manual
Fuel Tank Capacity: 300 L
Axles & Tires
Front Axle: 6500 kg × 2
Rear Axle: 18000 kg
Tires: 12.00R20 18PR (10 + 1 spare)
Wheel Track (mm): Front 2011 × 2 / Rear 1860 × 2
Max Lifting Capacity: 33,000 kg
Max Lifting Moment: 607 kN·m
Hydraulic Outreach: 16.03 m
Rotation Angle: 360° continuous

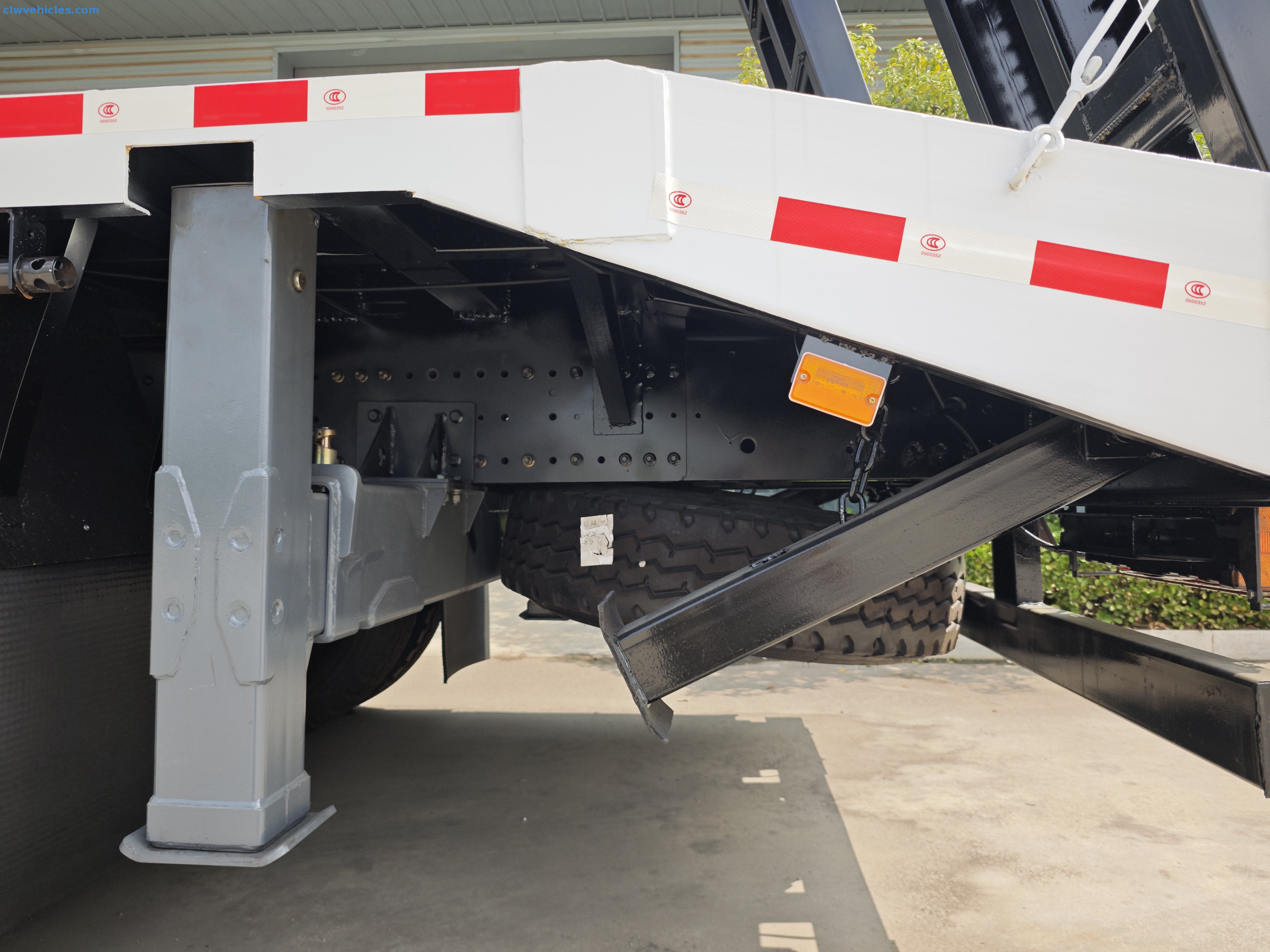

Stabilizer Spread: 8216 / 8000 mm
Pump Capacity: 80 L/min
Operating Pressure: 33 MPa
Crane Weight: 7,100 kg
High Lifting Power – 33-ton capacity with 16m outreach for steel, machinery, and construction materials.
Durable Chassis – Shacman H3000 heavy-duty platform ensures stability and long service life.
Efficient Operation – FAST 12-speed gearbox and Euro 3 WP12 engine for smooth driving and crane performance.
Versatile Applications – Ideal for construction projects, logistics, utility maintenance, and infrastructure lifting tasks.
360° Continuous Rotation – Provides full operational flexibility on job sites.
Q1: What is the lifting capacity of the Shacman H3000 knuckle boom crane?
A1: It can lift up to 33,000 kg with a maximum lifting moment of 607 kN·m.
Q2: How far can the crane reach?
A2: The maximum hydraulic outreach is 16.03 meters.
Q3: What engine powers this truck?
A3: It is powered by the WP12.380E32 Euro 3 diesel engine with 380 hp.
Q4: Is the crane suitable for continuous heavy-duty operation?
A4: Yes, the 360° continuous rotation, strong stabilizers, and 33 MPa hydraulic system ensure reliable heavy-duty performance.
Q5: What industries commonly use this truck?
A5: It is widely used in construction, heavy logistics, infrastructure projects, utility maintenance, and material transportation.
Shacman H3000 8x4 Flatbed Truck mounted Knuckle boom Crane | ||
Emission Standard | EUR 3 | |
Driving Type | 8x4 | |
Dimensions | ||
Wheelbase(mm) | 2100+4575+1400 | |
Overall Dimension(mm) | 12000x2550x3980 | |
cargo box size(mm) | 8300x2450 | |
Weights | ||
GVW(kg) | 31000 | |
Curb weight(kg) | 20800 | |
Front axle(kg) | 6500/6500 | |
Rear axle(kg) | 18000 | |
Wheel track front/rear(mm) | 2011/2011/1860/1860 | |
Front/rear overhang(mm) | 1525/2400 | |
Approach angle(°) | 16 | |
Departure angle(°) | 10 | |
Max speed(km/h) | 85 | |
Engine | ||
Engine model | WP12.380E32 | |
Engine type | Six-cylinder, in-line, supercharged inter | |
No. of cylinders | straight-6 cylinders | |
Displacement(L) | 11.596L | |
Max. output (kw/Ps/rpm) | 280kw(380ps)/2200 rpm | |
Max torque/Speed(N.m/rpm) | 1600 N.m/1300-1400rpm | |
Drive Line | ||
Transmission | Transmission model: FAST 12JSD200TA-B 12 forwarder,2 reverse gear,manual operation | |
Tire | 12.00R20 18PR; 10+1 spare tire | |

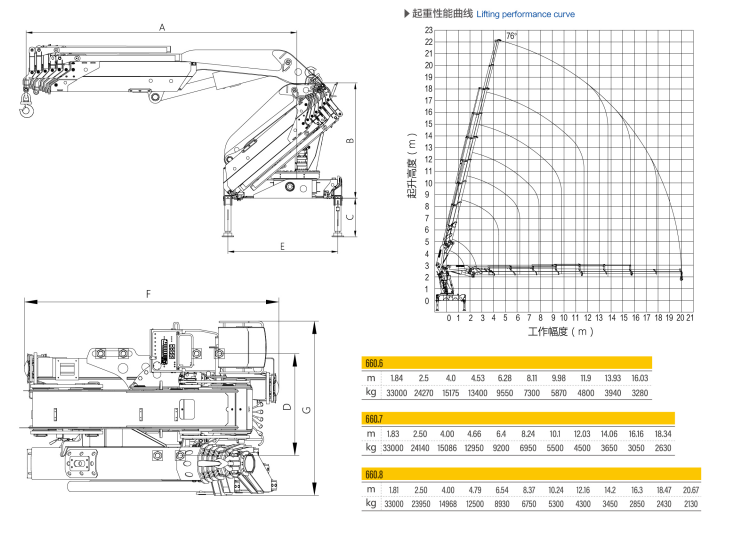

Crane specification
| Item | Unit | Parameter |
| Max Lifting Capacity | kg | 33000 |
| Max Lifting Moment | kN.m | 607 |
| Max hydraulic outreach | m | 16.03 |
| Recommended Pump Capacity | L/min | 80 |
| Max operating pressure | Mpa | 33 |
| Oil Tank Capacity | L | 300 |
| Crane Weight | kg | 7100 |
| Stabilizer spread | mm | 8216/8000 |
| Rotation Angle | ° | 360° continuous |



Operation notice
1. Working radius on the chart has taken loading deflection into account. So we can calculate the allowed loading weight by this actual working radius.
2. When the length of boom is between two data’s shown in the table, you should take the loading weight data of bigger working radius as a standard value.
3. When crane boom extends longer than 6.5m, the legs should fully stretch out.
4. When crane boom is operated at the front of the supporting leg, the loading weight value on the table decreases to 25% or less.
5. The table on the right does not consider the influence of boom deflection.
6. The maximum total loading weight on the table takes that leg standing on solid level ground as a level ground condition and includes the weight of hook and pulley (40kg).
7. When the ground clearance of the heavy goods is over 300mm, please don’t stretch the arm down or out. But can stretch the cable of the crane.
Attention: This data of the rated lifting load is based on the good stability of crane. When the stability of the crane is insufficient, please reduce the lifting weight properly.
