Shacman L3000
CLW
CLW5180GC6
Product Description：
Overview

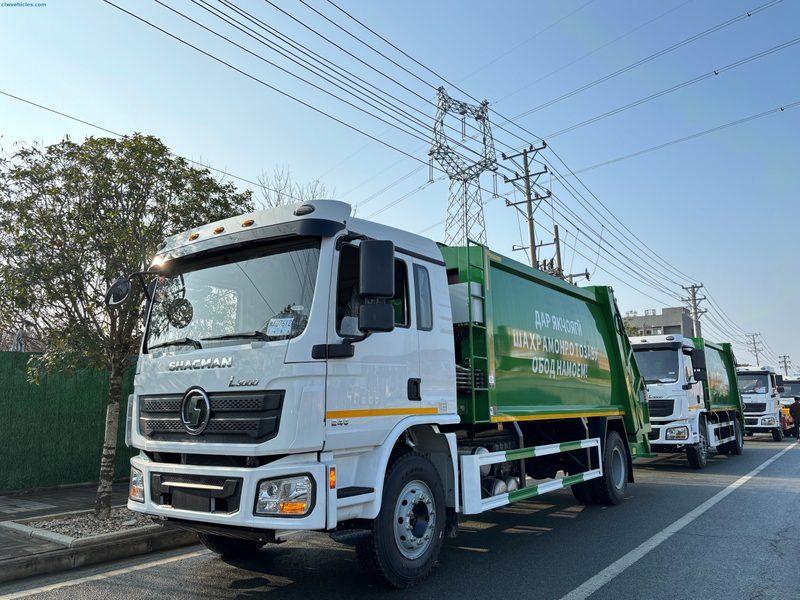

The Shacman L3000 4x2 12CBM Compressed Garbage Truck is a robust and efficient waste management solution engineered to meet the demanding environmental and operational conditions of the Middle East. Built on the reliable Shacman L3000 4*2 chassis, this vehicle combines durability, advanced technology, and user-friendly design to deliver exceptional performance in urban and industrial waste collection.
---
Key Features
1. High-Performance Chassis & Powertrain
- Chassis: Shacman L3000 4*2 chassis, optimized for heavy-duty operations.
- Engine: B210 33 engine ensures powerful output and fuel efficiency, suitable for long-haul waste transportation in arid climates.
- Transmission: 8-speed Fast manual gearbox for smooth power delivery and reliability.
- Tires: 10.00R20 18PR tires with a spare tire included, designed to withstand rough terrains and high temperatures.
2. Advanced Compression System
- Body Material: The garbage compartment is constructed with T700L high-strength steel, featuring 4mm sidewalls and a 5mm reinforced floor for enhanced durability and corrosion resistance.
- Compression Mechanism: Hydraulic lift system ensures efficient garbage compaction, maximizing load capacity (10 cubic meters) while minimizing transportation frequency.
3. Multi-Control Operation
- Triple Control Modes: Operate seamlessly via in-cab controls, side-panel buttons, or remote control for flexibility in diverse working environments.

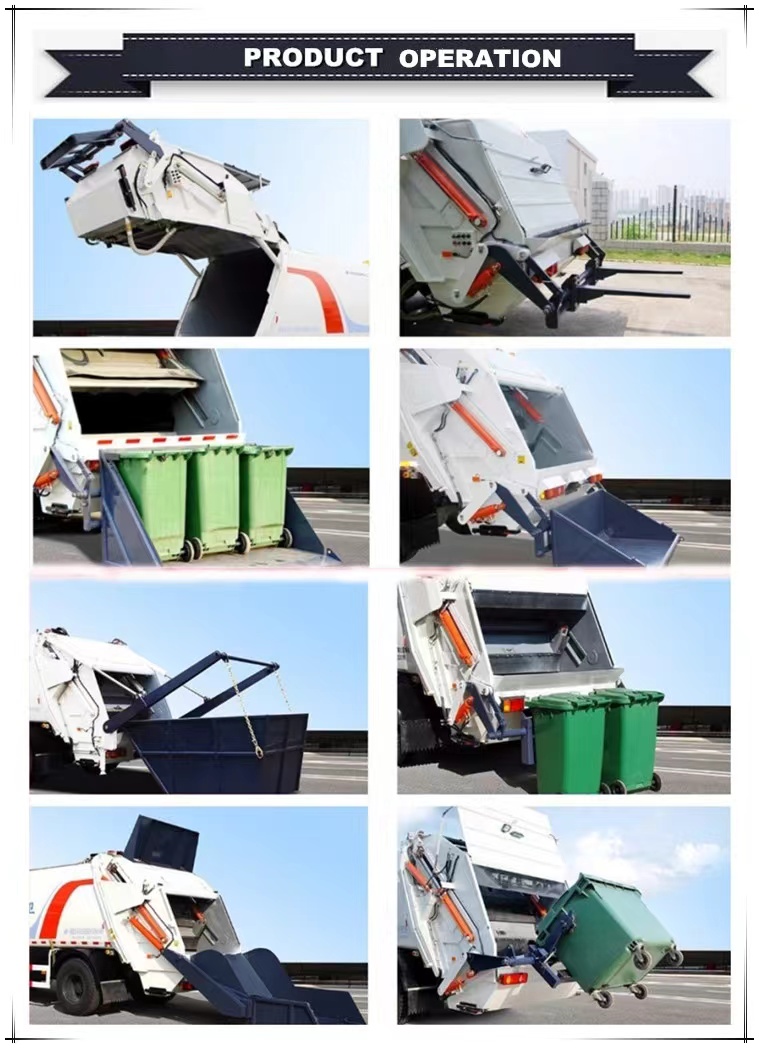

- Rear-Loading Design: Ergonomically designed rear hydraulic lift system simplifies waste loading and unloading, reducing labor intensity.
---
Advantages for the Middle East Market
- Heat & Dust Resistance: Reinforced cooling systems and sealed electrical components ensure reliability in temperatures exceeding 45°C.
- Low Maintenance: Modular design simplifies repairs, while widely available spare parts reduce downtime.
- Customizable Options: Optional upgrades include enhanced air filtration, sand-resistant coatings, and extended warranty packages.
Technical Specifications of the CLW 12cbm garbage compactor truck：
| Main Technology Parameter | |
| Model Name | CLW Brand Shacman L3000 4x2 12cbm Garbage Compactor truck |
| Driving Type | 4x2 |
| Color | White color or based on client’s request. |
| Weights | |
| GVW(kg) | 18000 |
| Rated payload weight(kg) | 7185 |
| Curb weight(kg) | 10620 |
| Dimensions | |
| Wheelbase(mm) | 4700 |
| Overall Dimension(mm) | 8830x2500x3300 |
| Max speed(km/h) | 89 |
| Engine | |
| Engine model | B210 33 |
| Emission standard | Euro 3 |
| Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of cylinders | straight-6 cylinders, diesel |
| Displacement(L) | 5.9 |
| Max. output (kw) | 155(210hp) |
| Drive Line | |
| Transmission | Fast Brand;8 forwards,2 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Air brake with vacuum pump |
| Axle | |
| Front axle | Dena 6.5 tons |
| Rear axle | Dena 11 tons |
| Tire specification | |
| Tire specification | 10.00R20 18PR |
| Garbage compactor box | |
| Volume | 12 cbm |
| Raw material | T700L, side is 4mm, and bottom is 5mm. |
| Loading Method | Rear loader, waste bins flipover mechanism, can match 2 units 240 L, or 1 unit 180L and 1 unit 300L waste bins |

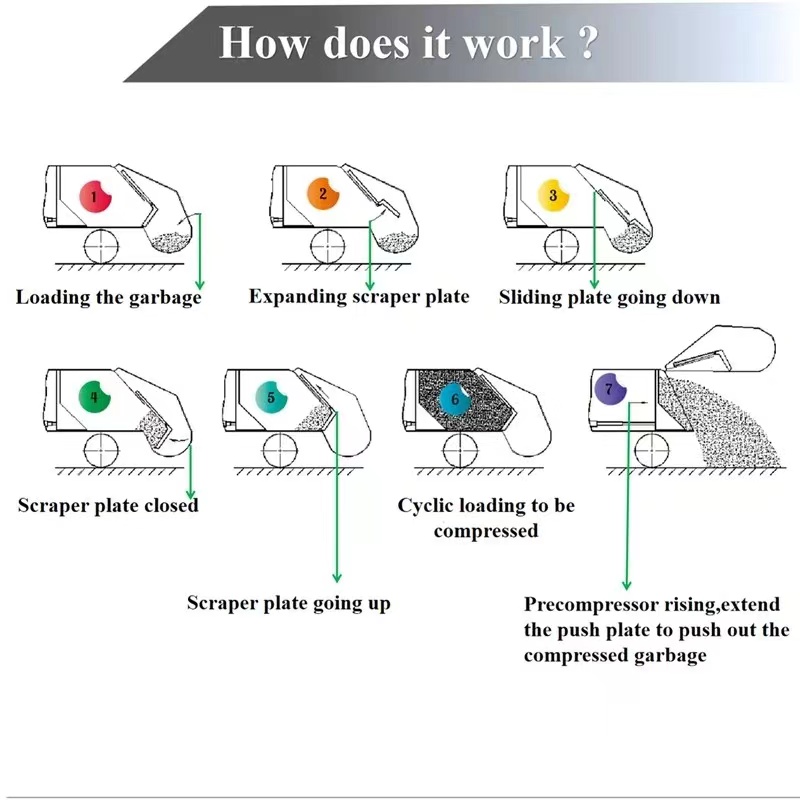

| Unloading Method | The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate |
| Compacted Ratio | 0.6-0.8t/m³ |
| Control Method | Double side control box + manual levers |
| PLC; one-key cycling + half-auto control | |
| Sewage Tank | One unit |
