Shacman L3000
CLW
CLW5180GC18
Technical Specifications of the CLW 12cbm garbage compactor truck：
| Main Technology Parameter | |
| Model Name | CLW Brand Shacman L3000 4x2 12cbm Garbage Compactor truck |
| Driving Type | 4x2 |
| Color | White color or based on client’s request. |
| Weights | |
| GVW(kg) | 18000 |
| Rated payload weight(kg) | 7185 |
| Curb weight(kg) | 10620 |
| Dimensions | |
| Wheelbase(mm) | 4700 |
| Overall Dimension(mm) | 8275*2550*3500 |
| Max speed(km/h) | 89 |
| Engine | |
| Engine model | WP6.210E32 |
| Emission standard | Euro 3 |
| Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of cylinders | straight-6 cylinders, diesel |
| Displacement(L) | 6.23 |
| Max. output (kw) | 155(210hp) |
| Drive Line | |
| Transmission | Fast Brand;8 forwards,2 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Air brake with vacuum pump |
| Axle | |
| Front axle | Dena 6.5 tons |
| Rear axle | Dena 11 tons |
| Tire specification | |
| Tire specification | 10.00R20 18PR |
| Garbage compactor box | |
| Volume | 10cbm |
| Raw material | T700L, side is 4mm, and bottom is 5mm. |
| Loading Method | Rear loader, waste bins flipover mechanism, can match 2 units 240 L, or 1 unit 180L and 1 unit 300L waste bins |
| Unloading Method | The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate |
| Compacted Ratio | 0.6-0.8t/m³ |
| Control Method | Double side control box + manual levers |
| PLC; one-key cycling + half-auto control | |
| Sewage Tank | One unit |
Product Description：

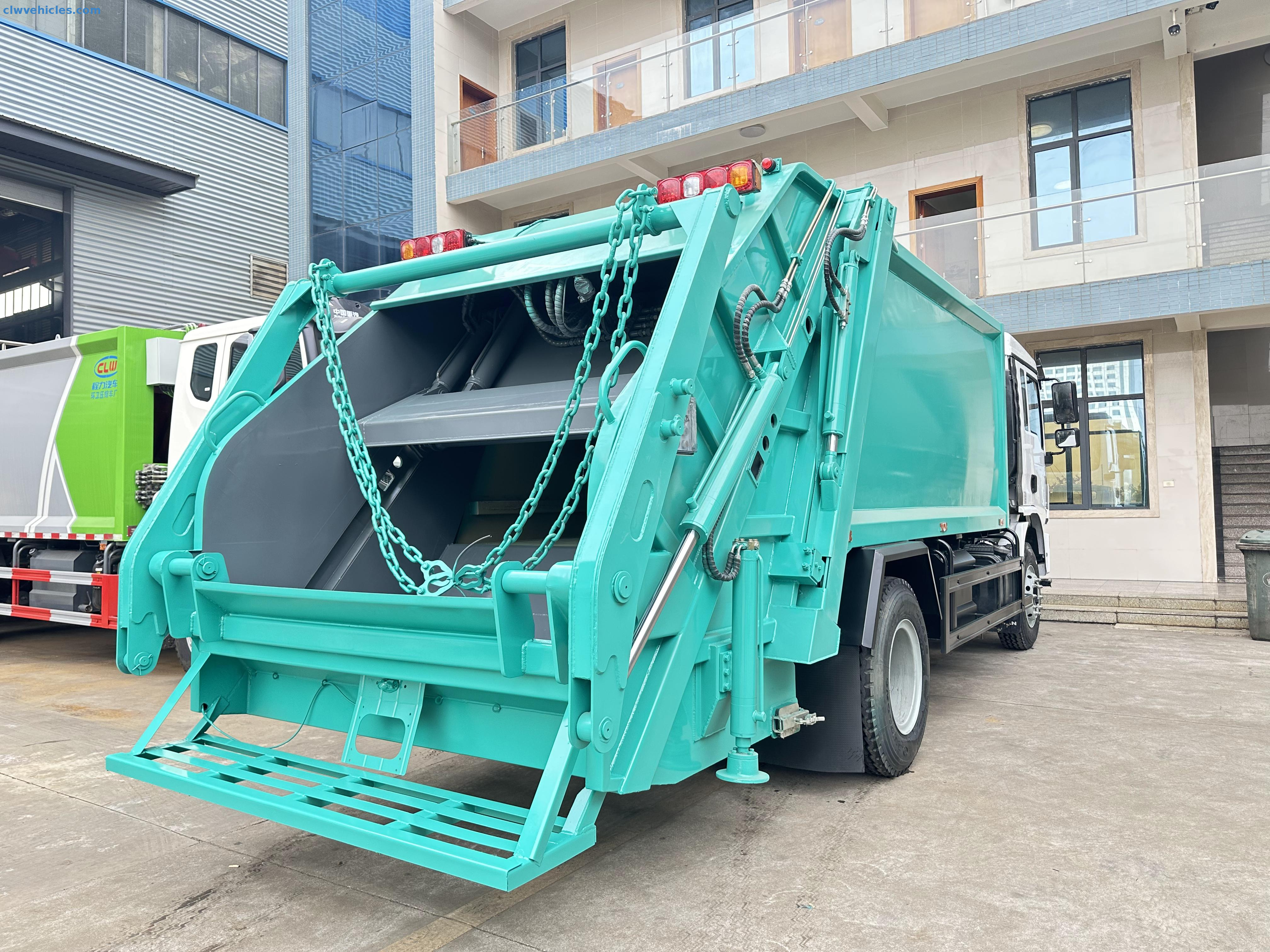

SHACMAN L3000 4×2 Refuse Compactor Truck – Professional Overview
Designed for Efficiency, Built for Durability
Model: SHACMAN L3000 4×2 Refuse Compactor Truck
Application: Urban waste collection, residential/commercial garbage compression and transport.
Key Strengths: High power output, customizable design, robust construction.
Chassis: SHACMAN L3000 Heavy-Duty Chassis
Rugged structure, corrosion-resistant finish.
Color: Fully customizable (standard or client-specific options).
Engine: WP6.210E32 Engine (China III Emission Standard)
Power: 210 HP – Delivers reliable performance under heavy loads.
Transmission: FAST Gear 8-Speed Manual Transmission
Smooth shifting, optimized for urban driving conditions.
Material: T700L High-Strength Steel
Sidewall Thickness: 4mm
Base Thickness: 5mm
Capacity: 10 m³ – Ideal for high-volume residential waste collection.
Customizable Features:
Adjustable compression mechanisms.
Optional hydraulic system upgrades.
Tailored body dimensions or reinforcement based on operational needs.
✔️ Power & Efficiency: Combines 210 HP engine with 8-speed transmission for seamless power delivery.
✔️ Durability: Reinforced steel body and chassis ensure long-term reliability.
✔️ Flexibility: Customizable color, compaction settings, and add-on accessories.
Urban Adaptability: Compact design navigates narrow streets effortlessly.
Low Maintenance: Engineered for minimal downtime and easy servicing.
Eco-Friendly: Complies with China III emission standards for reduced environmental impact.
Contact us for tailored configurations or bulk order discounts!
