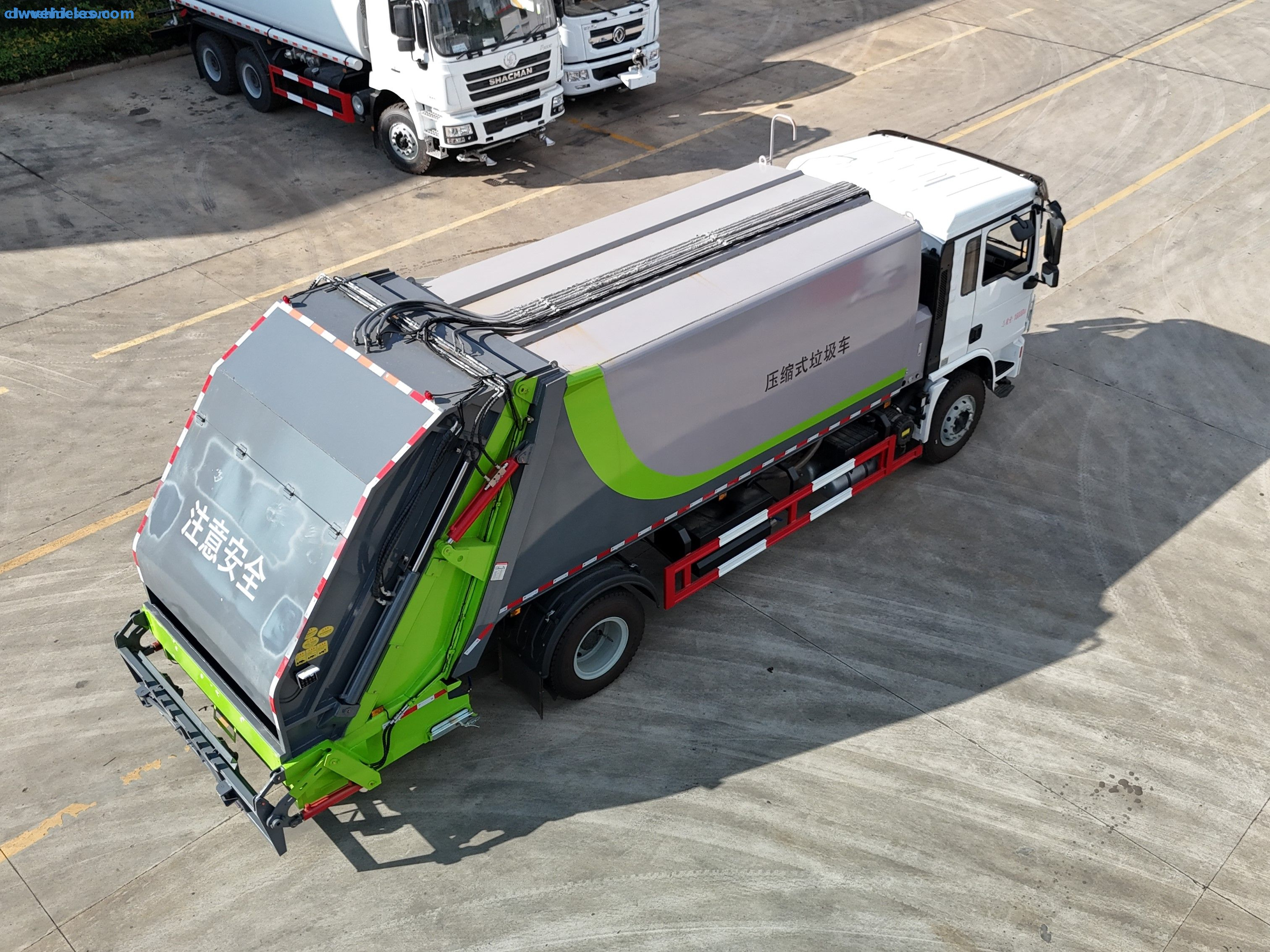

Shacman L3000 garbage compactor truck

Model Name

CLW brand 13~18cbm garbage compactor truck

Driving Type

4*2,

Cabin

Flat proof, one and half row, L3000 ,Hydraulic main seat, four-point hydraulic suspension cab, electric window lifter, manual flip, electric air conditioner, telescopic shaft control, ordinary vertical air filter, metal bumper, two-stage boarding pedal, 165Ah maintenance-free battery, spare Tire frame, SHACMAN logo, full English logo, remote throttle controller (electronically controlled engine) shipped with the vehicle

Color

White color or based on client’s request.

Weights

Rated payload weight(kg)

18000

Curb weight(kg)

6440

Dimensions

Wheelbase(mm)

5100

Overall Dimension(mm)

9540×2560×3520

Max speed(km/h)

89

Engine

Engine model

YCS06245-60

Emission standard

waste bins flipover mechanismEuro 6

Engine type

6 cylinders, Water-cooled, four-stroke, brake with exhaust valve, direct injection, supercharged and intercooled, electronically controlled high pressure common rail + SCR

No. of cylinders

straight-6 cylinders, diesel

Displacement(L)

6.23L

Max. output (kw)

180KW (245HP)

Drive Line

Transmission

FAST brand 8JS85TM ; 8 forwards,1 reverse gear, manual operation

Steering

Power steering

Brake

Oil brake with vacuum pump

Axle

Front axle

6.5 tons MAN technology

Rear axle

11.5Tons Man technology

Tire specification

Tire specification

10.00R20 standard tire,6 tires+1 spare tire

Volume

13~18 cbm

Raw material

Q235 carbon steel, side is 5mm, and bottom is 5mm.

Loading Method

Rear loader, waste bins flipover mechanism, can match 2 units 120 L, or 1 unit 240L and 1 unit 770L  and 1100 L waste bins

Unloading Method

The back garbage filler unit is lifting up first, then garbage is pushed out by pushing plate

The working pressure of the hydraulic system

150-180Mpa

Compacted Ratio

1:0.75

Crushing Force

13.5tons

Control Method

Double side control box + manual levers

PLC and wireless remote control; one-key cycling + half-auto control

Sewage Tank

One unit

Others

The bottom box and filler unit are made of thick steel plate. The back filler unit lifting cylinder is equipped with a locking device. The upper part is equipped with a function of repeated compression and bidirectional peristaltic compression, an integrated flashlight operation mode, and a double-sided control box.

Camera

2 units; one is for reverse image, and one is for checking the working condition.

Paint

Electrophoretic coatings (The anti-rust ability is close to the cabin)
