Shacman
CLW
CLW5180AWP11

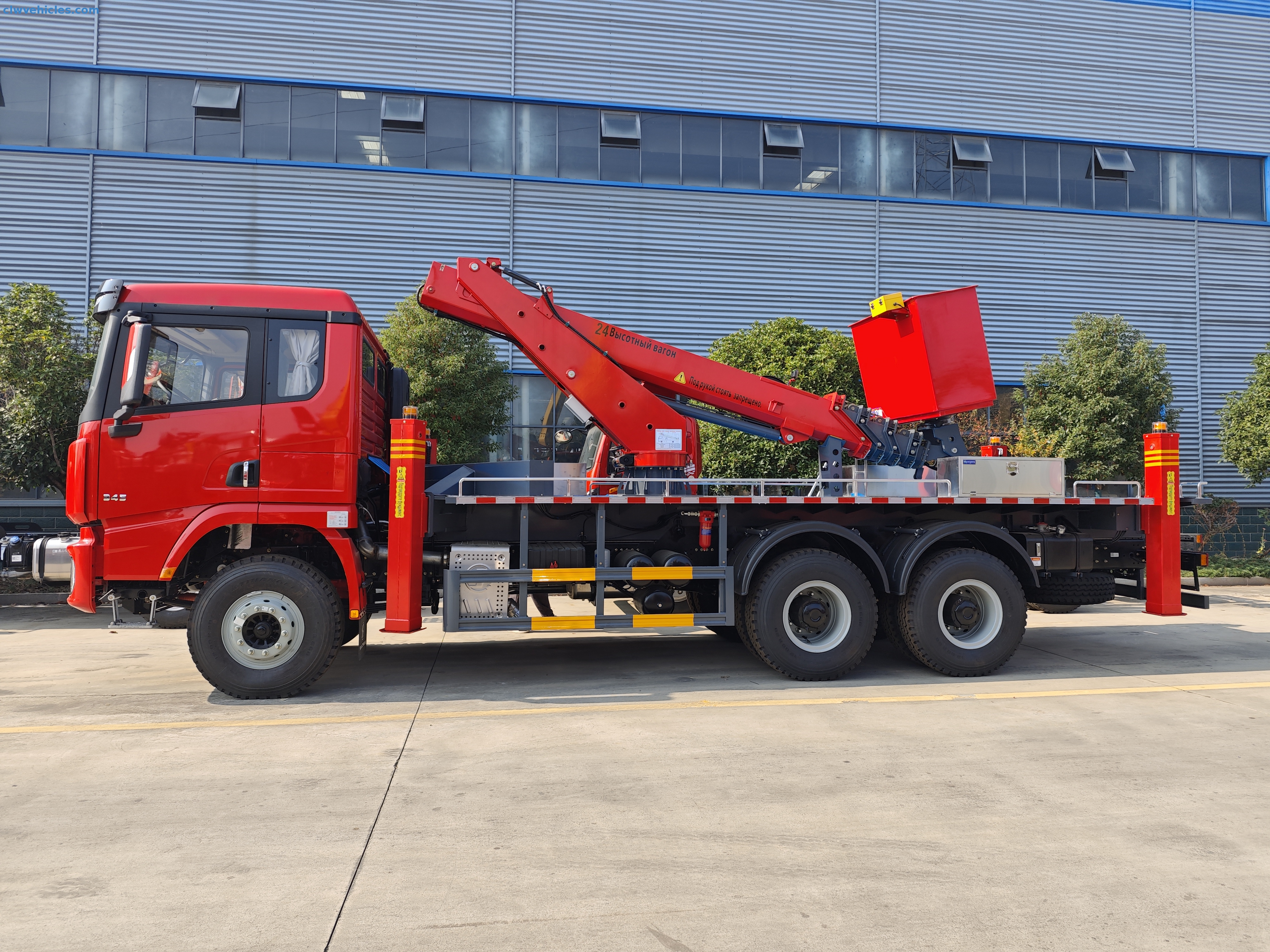

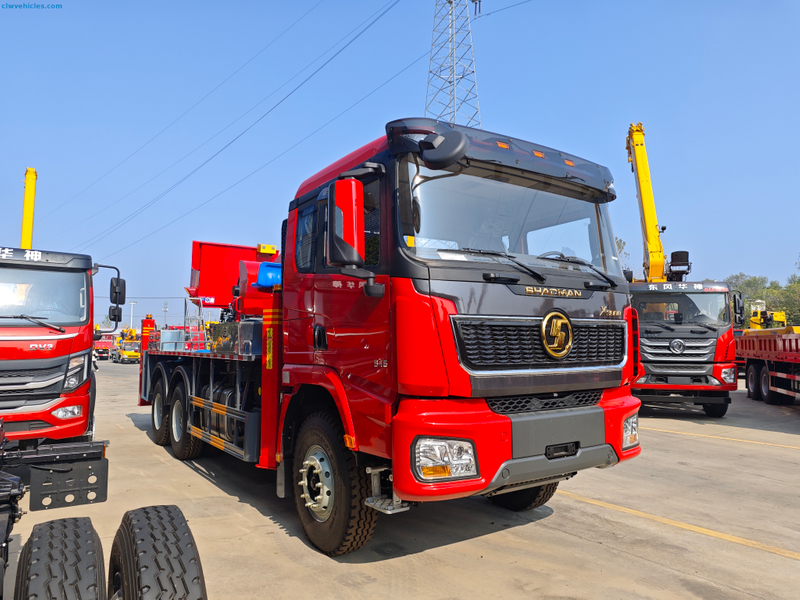

The Shacman X3000 24m Aerial Work Platform Truck is a heavy-duty high-altitude operation vehicle purpose-built for electric power maintenance, telecommunication installation, municipal lighting repair, and construction site operations. Engineered by CLW Group and mounted on the durable Shacman X3000 6x4 chassis, this truck combines power, precision, and safety to handle the toughest aerial jobs efficiently.
Driven by a WP10.340E32 340HP Euro 3 diesel engine, the truck delivers stable performance under full load while maintaining smooth control through its 10-forward/2-reverse manual transmission. The advanced hydraulic lift system and four-section telescopic hexagonal boom enable the platform to reach 24 meters working height with a 12-meter horizontal outreach, ensuring maximum accessibility even in complex environments.
Its 360° continuous slewing system and dual operation modes (ground and bucket controls) offer unmatched flexibility, while the V+H type hydraulic outriggers provide superior balance and safety during operation. Optional features such as insulated buckets and wireless remote control further enhance usability for electrical and utility companies.
From urban maintenance to industrial installation, the Shacman 24m aerial platform truck delivers dependable elevation solutions that meet international safety and efficiency standards.
Outstanding Working Height: 24m maximum working height and 12m outreach ensure access to streetlights, communication towers, and power poles.
⚙️ Powerful Engine: Equipped with the WP10.340E32 (340HP) engine for reliable performance in any terrain.
Strong and Stable Design: Heavy-duty Shacman X3000 6x4 chassis with 25,000kg GVW guarantees durability and load capacity.
360° Continuous Rotation: Hydraulic slewing device enables smooth, all-around operation without repositioning the truck.
Multi-Mode Control System: Operate from ground, platform, or via wireless remote — ensuring efficiency and safety.
All-Weather Operation: Equipped with lighting lamps, warning systems, and Class 4 wind resistance, suitable for night or stormy conditions.
Versatile Outriggers: Front V-type and rear H-type hydraulic outriggers (4200mm horizontal span, 4000mm vertical) ensure full stability on uneven terrain.
⚡ Custom Options: Optional insulated bucket, lighting kits, and color customization available for different industries.
Municipal Maintenance: Streetlight, signal light, and CCTV installation.
Power Line Work: Electrical line inspection, transformer maintenance, and pole installation.
Telecommunication Projects: Tower wiring, fiber-optic setup, and antenna repair.
Construction & Infrastructure: Bridge inspection, building façade maintenance, and signage installation.
Emergency Operations: Firefighting support, rescue missions, and nighttime inspection.
Q1: What is the maximum working height of this Shacman aerial platform truck?
A1: It offers a 24-meter maximum working height with a 12-meter horizontal outreach, suitable for most urban and industrial maintenance tasks.
Q2: Can the platform rotate freely?
A2: Yes. The truck features a 360° continuous hydraulic slewing system, enabling flexible positioning at any angle.
Q3: Is the bucket insulated for electrical work?
A3: An optional insulated bucket is available for power grid and utility operations to ensure operator safety.
Q4: How is stability ensured during operation?
A4: The vehicle is equipped with V+H type hydraulic outriggers and an anti-tilt hydraulic system, providing exceptional stability even on uneven surfaces.
Q5: Can it be operated remotely?
A5: Yes. It supports wireless remote control, ground panel operation, and in-bucket control, ensuring maximum safety and efficiency.
Main Technical Parameters：
| Main Technology Parameter | |
| Model Name | CLW Brand Shacman Aerial Work Platform Truck |
| Driving Type | 6x4 |
| Color | Red or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 25000 |
| Curb Weight(kg) | 22880 |
| Dimensions | |
| Wheelbase(mm) | 4350+1350 |
| Front/Rear Overhang(mm) | 1480/1665 |
| Approach/Departure Angle | 23/15 |
| Overall Dimension(mm) | 9210x2500x3980 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | WP10.340E32 |
| Engine Type | Water-cooled, four-stroke, with exhaust valve brake, direct injection,turbocharged and itercooled |
| Rated Torque(Nm) | 1250 |
| Rated Speed(rpm) | 2200 |
| Max.Output(kw) | 250(340hp) |
| Drive Line | |
| Transmission | 10 forwards,2 reverse gear |
| Steering | Power steering |
| Brake | Air brake system |
| Axle | |
| Axle | 7000/18000/18000 |
| Tire Specification | |
| Tire Specification | 315/80R22.5 18PR; 10+1spare tire |
| Front Wheel Track(mm) | 1965 |
| Rear Wheel Track(mm) | 1860/1860 |
| Number of Leaf Springs | 9/10 |
| Upper Body Configuration | |
| Platform Working Height | 24m |
| Maximum Operating Height | 3m |
| Maximum Operating Range | 12m |
| Boom Type | 4-section hexagonal working arm,synchronous telescopic |
| Outtrigger | 4 pcs,front V+rear H type hydraulic outtriggers |
| Span:4200mm horzontal,4000mm vertical | |
| Bucket(kg) | 200 (optional insulation buket) |
| Slewing Device | Two-way 360° continuous slewing |
| 360° slewing bucket | |
| Operating System | Up and down operation both on ground and in bucket |
| Wireless remote control+platform operatio+manual 3 groups of operating | |
| Control Voltage | 12V |
| Maximum Working Wind Speed | Class 4 wind |
| Emergency Device | yes |
