Shacman
CLW
CLW5180SS2
Main Technical Parameters：
| Main Technology Parameter | |

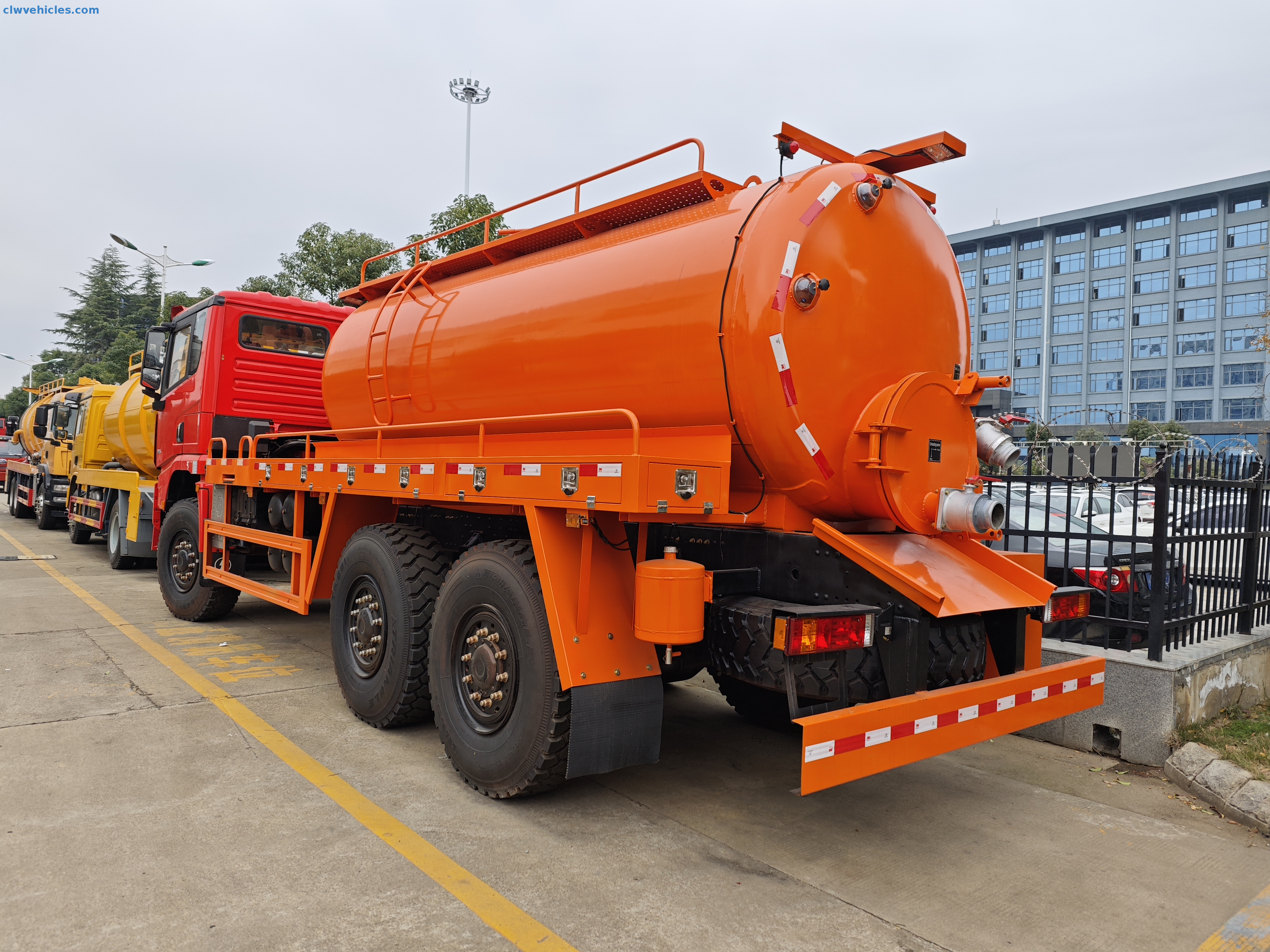

| Model Name | CLW Brand Shacman X3000 6x4 Sewage Suction Truck |
| Driving Type | 6x4 |
| Color | Red and orange or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 25000 |
| Rated Payload Weight(kg) | 11070 |
| Curb Weight(kg) | 13800 |
| Dimensions | |
| Wheelbase(mm) | 4375+1400 |
| Front/Rear Overhang(mm) | 1525/1850 |
| Approach/Departure Angle | 16/14 |
| Overall Dimension(mm) | 9150x2550x3650 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | WP10.340E32 |
| Engine Type | Water-cooled,four-stroke,with exhaust valve braking, direct injection turbocharged with intercooling |
| Max.Output(kw) | 250(340hp) |
| Drive Line | |
| Transmission | 10 forwards,2 reverse gear,10JSD180 |
| Axle | |
| Axle | 7000/18000 |
| Tire Specification | |
| Tire Specification | 11.00R20 18PR; 10+1 spare tire |
| Front Wheel Track(mm) | 2036 |
| Rear Wheel Track(mm) | 1860/1860 |
| Number of Leaf Springs | 10/12 |
| Upper Body | |
| Van Box Size(mm) | 5650x1900 |
| Box Material | Carbon Steel,Stainless Steel,According to Customer needs |
| Sewage Tank Volume | 13.82m³ |
| SewageTank Material | 5mm thickness;Q235A |
| Pump | Weilong double pump 65QZDH-110/7000, Power rate :12KW; Pumping speed: 110L/S; Absolute pressure:7000Pa;Suction depth: 7 meters, |
| Other Key Parts | Power-take-off, hydraulic cylinders, multi-way valve , pressure gauges, water-gas separator , oil-gas separator, level inspection window, suction hose |
Product Description：
1. The special devices mainly consist of tanks, pumps and pipeline systems, which are used for the suction operation of liquid waste.
2. The total capacity of the tank is 14.52 cubic meters, and the effective volume of the tank is 13.82 cubic meters. The medium is liquid waste, and the density is 800 kilograms per cubic meter.
3. The external dimensions of the tank (length × diameter) (in millimeters) are 5650 (including the straight section length of 5050) × 1900.
4. The materials for the side and rear guards are Q235, and the connection methods are all welding connections. The cross-sectional dimension of the rear guard is 200 mm × 50 mm, and the height from the ground is 460 mm.
5. Cab pictures can be selected according to the chassis. Pictures of the exterior on both sides of the vehicle body and the rear exterior can be selected. Different layout styles of the rear processors, fuel tanks, batteries, air reservoirs and urea tanks on both sides of the vehicle body can be selected according to the chassis.
Suction operation:
1. Slowly insert the suction pipe into the sewage well or sewage pool. The insertion depth should be appropriate to avoid the pipe mouth being blocked.
2. Start the vacuum pump and control the suction speed by operating the valve. Pay attention to observing the liquid level of the suction tank.
3. During the suction process, always pay attention to the working sound and temperature of the vacuum pump. If there is any abnormality, stop the machine immediately for inspection.
Discharge operation:
1. After arriving at the designated discharge location, stop the vehicle and pull the handbrake.
2. Open the discharge valve and slowly discharge the sewage. Pay attention to controlling the discharge speed and direction.
3. After the discharge is completed, close the discharge valve and clean the discharge pipe.
