Shacman
CLW
CLW5250JSQ4

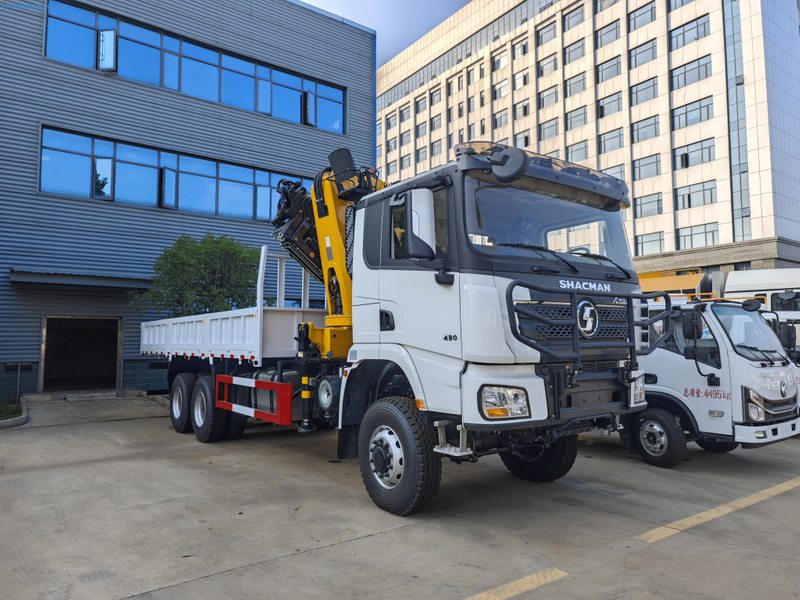

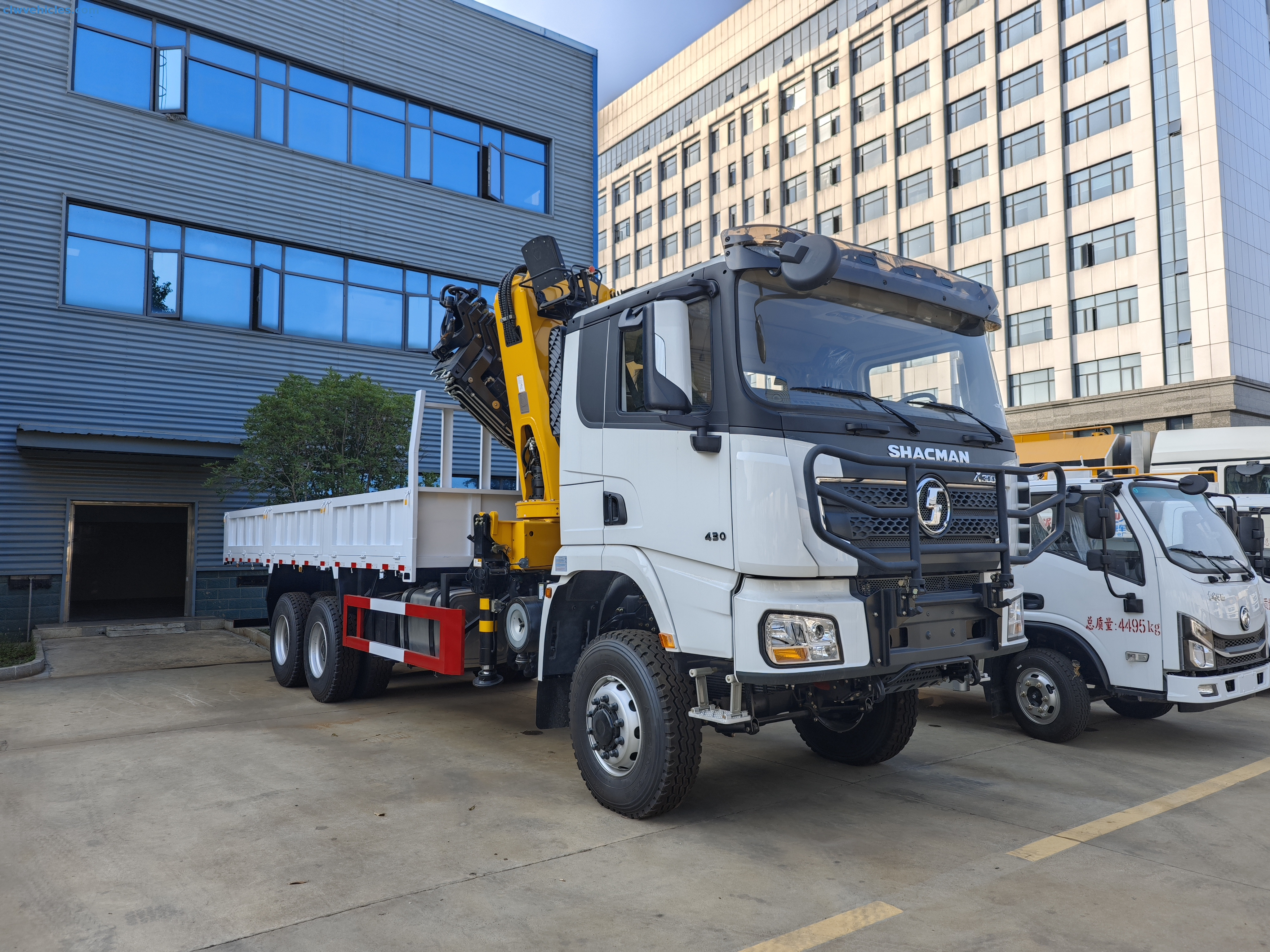

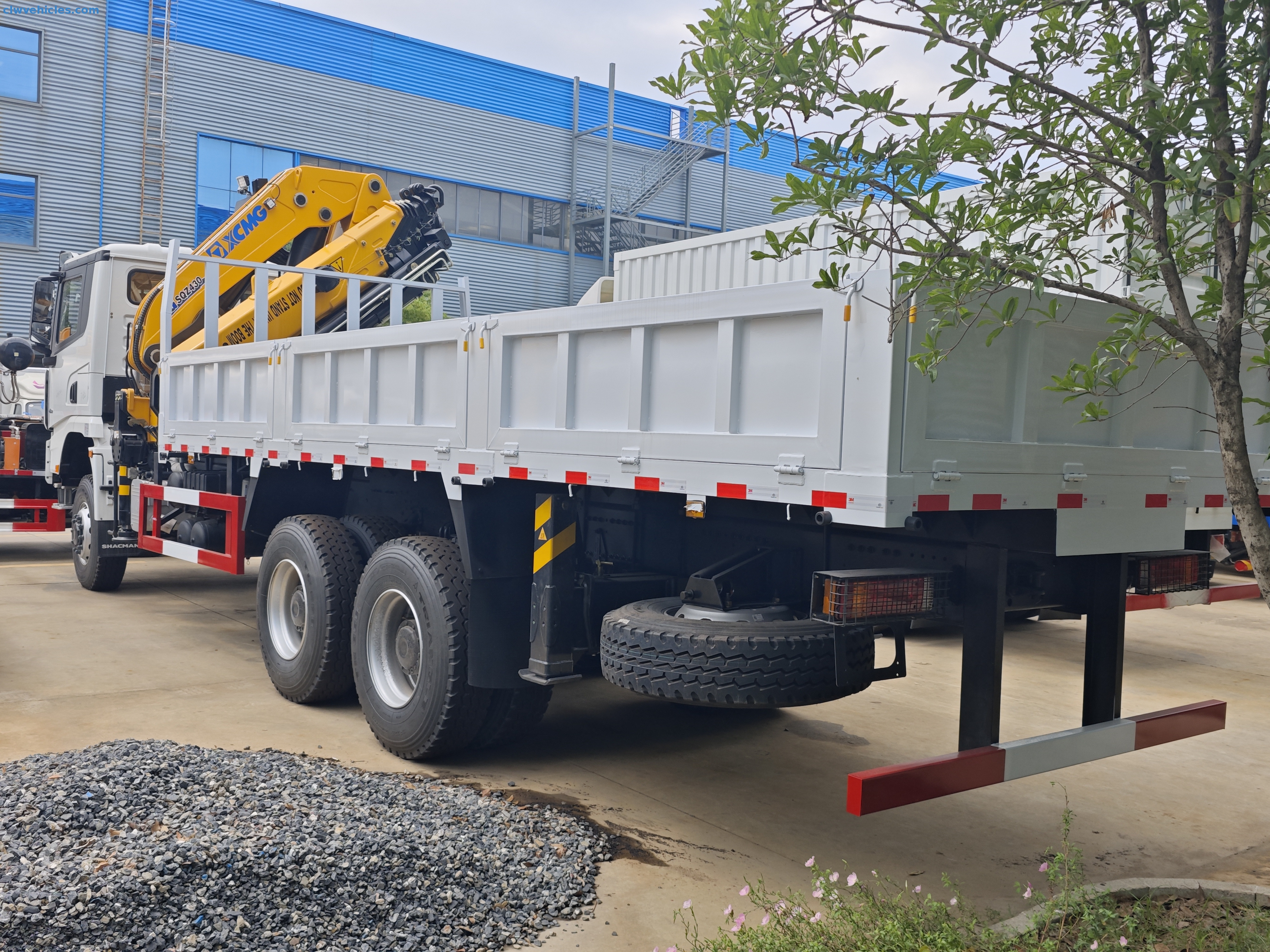

The Shacman 6×6 Cargo Truck with Knuckle Boom Crane is built for industries that demand strength, versatility, and reliability. Manufactured by CLW Group, this truck combines the heavy-duty performance of a Shacman cargo vehicle with the advanced lifting capability of a knuckle boom crane—making it an all-terrain powerhouse for lifting, loading, and hauling.
Powered by the WP12.430E50 engine (430HP, 11.6L, 2060 N·m torque) and equipped with a FAST 12-speed manual gearbox, it delivers robust pulling power and smooth control in any condition. The 6×6 drivetrain ensures superior traction across mud, gravel, and steep inclines—ideal for mining, construction, and off-road delivery operations.

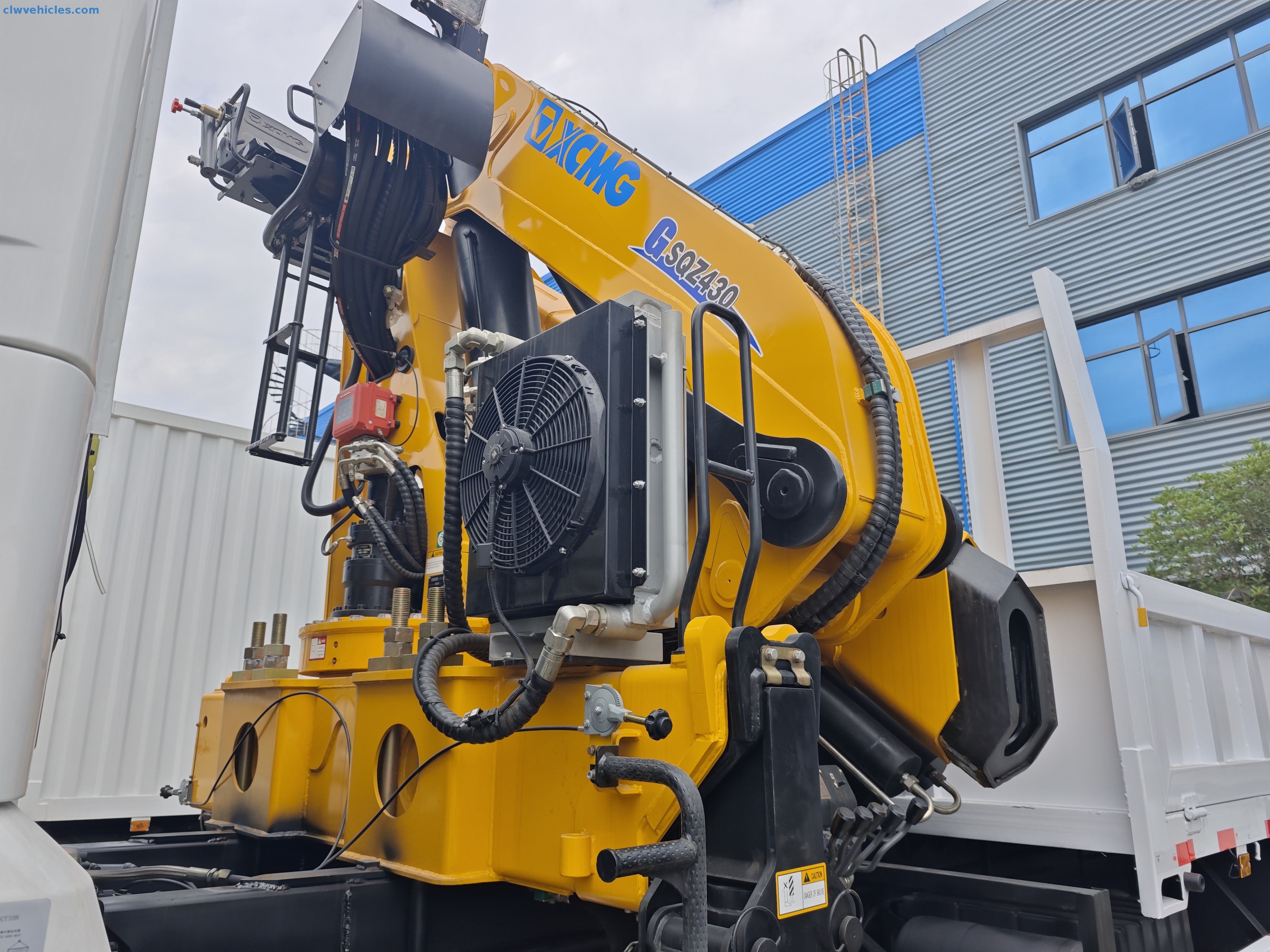

The integrated knuckle boom crane offers up to 21,500 kg lifting capacity and a 14.52 m hydraulic outreach, capable of 360° continuous rotation for efficient handling in tight spaces. With its sturdy stabilizers (7750 mm spread) and 270L hydraulic tank, operators can perform precise, stable lifting under demanding conditions.

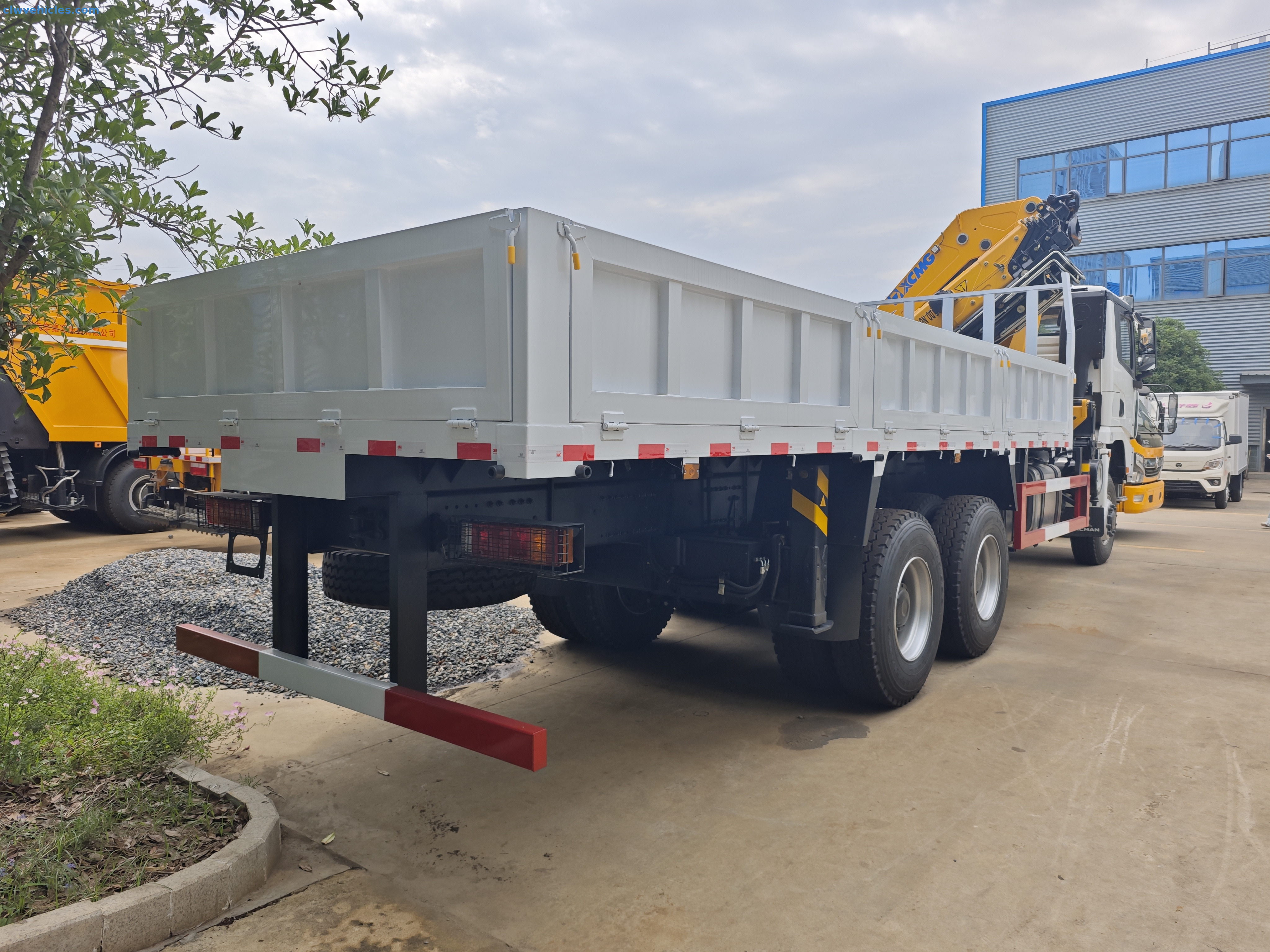

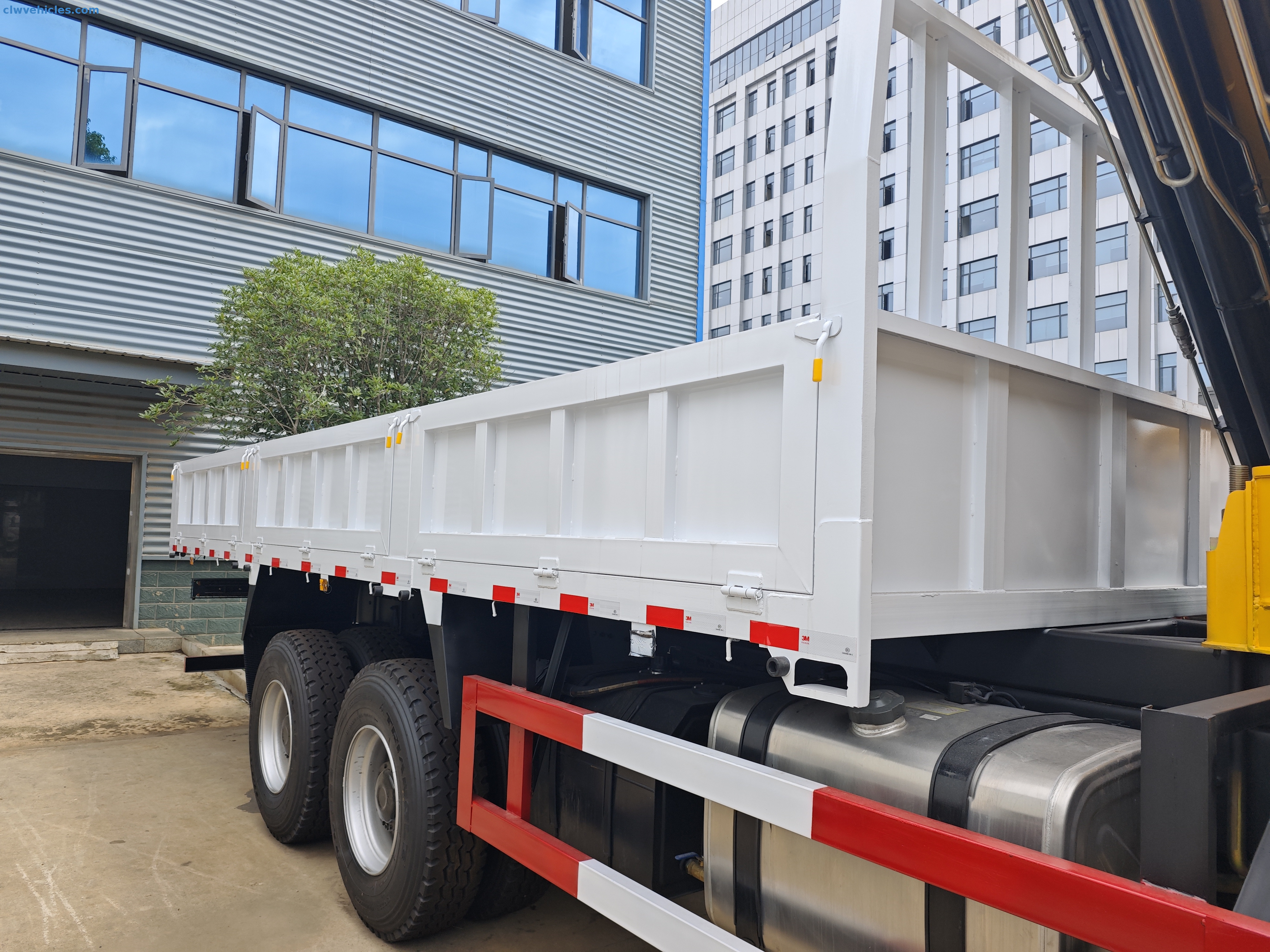

The cargo body (6540×2400×600 mm) provides generous space for materials, tools, or machinery, enabling seamless delivery-and-lift operations with one vehicle. From loading heavy construction components to deploying field equipment, this truck performs multiple roles in one efficient system.
Built and tested by CLW Group, one of China's most trusted specialized truck manufacturers, this model ensures long-term performance, reliability, and value for professional fleets worldwide.
Dual Functionality: Combines high-capacity cargo transport and powerful hydraulic lifting.
Strong Off-Road Performance: 6×6 drivetrain conquers rough terrain and remote sites.
High Lifting Capacity: 21.5 tons with 14.52 m outreach and 360° continuous rotation.
Efficient Operation: One vehicle performs loading, lifting, and transport tasks.
Proven Power: 430HP WP12 engine with 2060 N·m torque ensures steady performance.
Reliable Build Quality: Manufactured by CLW Group for global industrial use.
Safe and Stable: 7750 mm stabilizer spread and heavy-duty construction for safety during crane operation.
| Category | Item | Specification |
|---|---|---|
| Basic Info | Emission Standard | Euro V |
| Drive Type | 6×6 | |
| Dimensions | Wheelbase | 4375 + 1350 mm |
| Overall Dimension | 10900 × 2500 × 3980 mm | |
| Cargo Box Size | 6540 × 2400 × 600 mm | |
| Weights | GVW | 25,000 kg |
| Curb Weight | 16,000 kg | |
| Front Axle Load | 7,500 kg | |
| Rear Axle Load | 16,000 kg | |
| Performance | Max Speed | 85 km/h |
| Approach/Departure Angle | 20° / 12° | |
| Engine | Model | WP12.430E50 |
| Type | 6-Cylinder Inline Turbocharged Diesel | |
| Displacement | 11.6 L | |
| Power | 430 HP / 316 kW @1900 rpm | |
| Max Torque | 2060 N·m @1000–1400 rpm | |
| Transmission | Model | FAST 12JSD200TA-B |
| Gear | 12 Forward / 2 Reverse, Manual | |
| Tires | Specification | 315/80R22.5 ×10 + 1 Spare |
| Crane | Max Lifting Capacity | 21,500 kg |
| Max Lifting Moment | 430 kN·m | |
| Max Hydraulic Outreach | 14.52 m | |
| Operating Pressure | 32 MPa | |
| Oil Tank Capacity | 270 L | |
| Weight | 5920 kg | |
| Stabilizer Spread | 7750 mm | |
| Rotation Angle | 360° Continuous |
Q1: What makes the Shacman 6×6 knuckle boom truck suitable for off-road use?
A1: The truck's full-time 6×6 drivetrain ensures excellent traction and control across uneven and rugged terrain, making it ideal for off-road logistics, mining, and construction work.
Q2: Can the crane and truck operate simultaneously?
A2: Yes, the powerful WP12 engine and large hydraulic system allow smooth, simultaneous operation of both transport and crane functions.
Q3: What's the maximum lifting capacity of the knuckle boom crane?
A3: The crane can lift up to 21,500 kg with a maximum hydraulic outreach of 14.52 meters.
Q4: Is this truck customizable?
A4: Absolutely. CLW Group offers customization options including cargo box dimensions, crane configuration, and optional attachments for specific industrial applications.
Q5: What industries use this truck the most?
A5: It's widely used in construction, oilfield logistics, rescue operations, equipment deployment, and military engineering.
CLW Group Shacman 6x6 Cargo Truck with Knuckle Boom Crane | ||
Emission Standard | EUR 5 | |
Driving Type | 6x6 | |
Dimensions | ||
Wheelbase(mm) | 4375+1350 | |
Overall Dimension(mm) | 10900x2500x3980 | |
cargo box size(mm) | 6540x2400x600 | |
Weights | ||
GVW(kg) | 25000 | |
Curb weight(kg) | 16000 | |
Front axle(kg) | 7500 | |
Rear axle(kg) | 16000 | |
Wheel track front/rear(mm) | 2055/1878/1878 | |
Front/rear overhang(mm) | 1250/3545 | |
Approach angle(°) | 20 | |
Departure angle(°) | 12 | |
Max speed(km/h) | 85 | |
Engine | ||
Engine model | WP12.430E50 | |
Engine type | Six-cylinder, in-line, supercharged inter | |
No. of cylinders | straight-6 cylinders | |
Displacement(L) | 11.6L | |
Max. output (kw/Ps/rpm) | 316kw(430ps)/1900 rpm | |
Max torque/Speed(N.m/rpm) | 2060 N.m/1000-1400rpm | |
Drive Line | ||
Transmission | Transmission model: FAST 12JSD200TA-B 12 forwarder,2 reverse gear,manual operation | |
Tire | 315/80R22.5; 10+1 spare tire | |
Crane specification
| Item | Unit | Parameter |
| Max Lifting Capacity | kg | 21500 |
| Max Lifting Moment | kN.m | 430 |
| Max hydraulic outreach | m | 14.52 |
| Recommended pump capacity | L/min | 80 |
| Max operating pressure | Mpa | 32 |
| Oil Tank Capacity | L | 270 |
| Crane Weight | kg | 5920 |
| Stabilizer spread | mm | 7750 |
| Rotation Angle | ° | 360 continuous |
Operation notice
1. Working radius on the chart has taken loading deflection into account. So we can calculate the allowed loading weight by this actual working radius.
2. When the length of boom is between two data's shown in the table, you should take the loading weight data of bigger working radius as a standard value.
3. When crane boom extends longer than 6.5m, the legs should fully stretch out.
4. When crane boom is operated at the front of the supporting leg, the loading weight value on the table decreases to 25% or less.
5. The table on the right does not consider the influence of boom deflection.
6. The maximum total loading weight on the table takes that leg standing on solid level ground as a level ground condition and includes the weight of hook and pulley (40kg).
7. When the ground clearance of the heavy goods is over 300mm, please don't stretch the arm down or out. But can stretch the cable of the crane.
Attention: This data of the rated lifting load is based on the good stability of crane. When the stability of the crane is insufficient, please reduce the lifting weight properly.
