Shacman
CLW
CLW5180FFT1

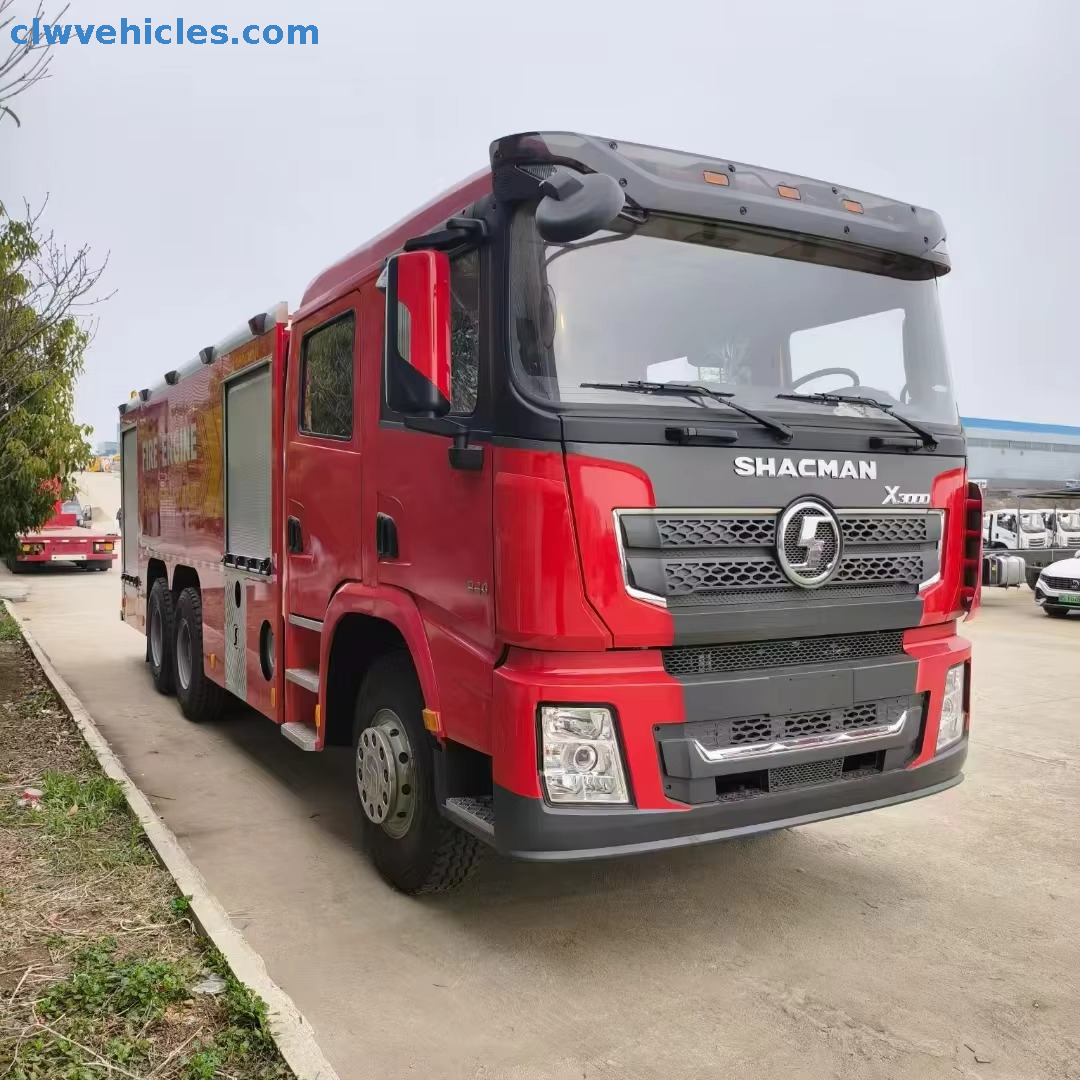

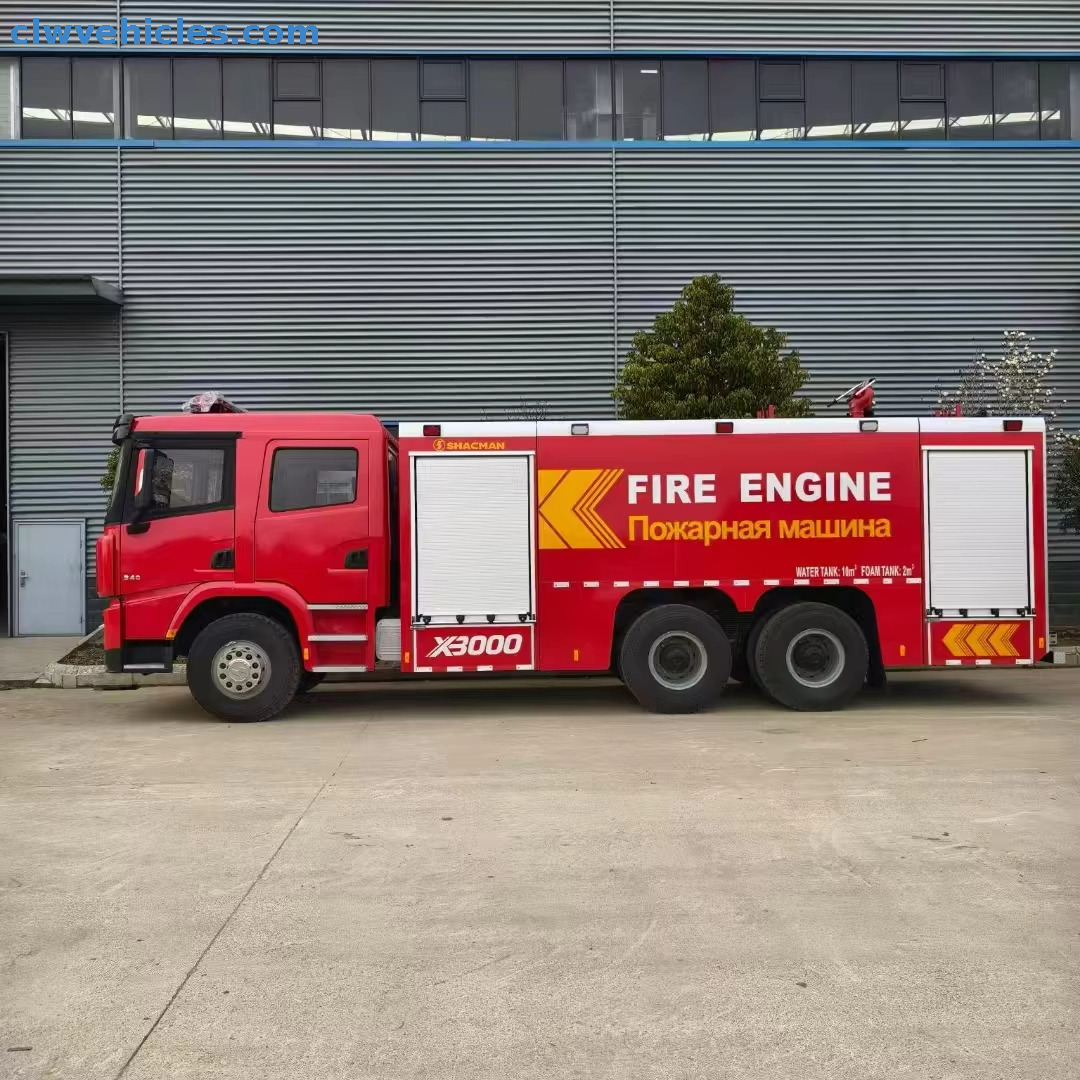

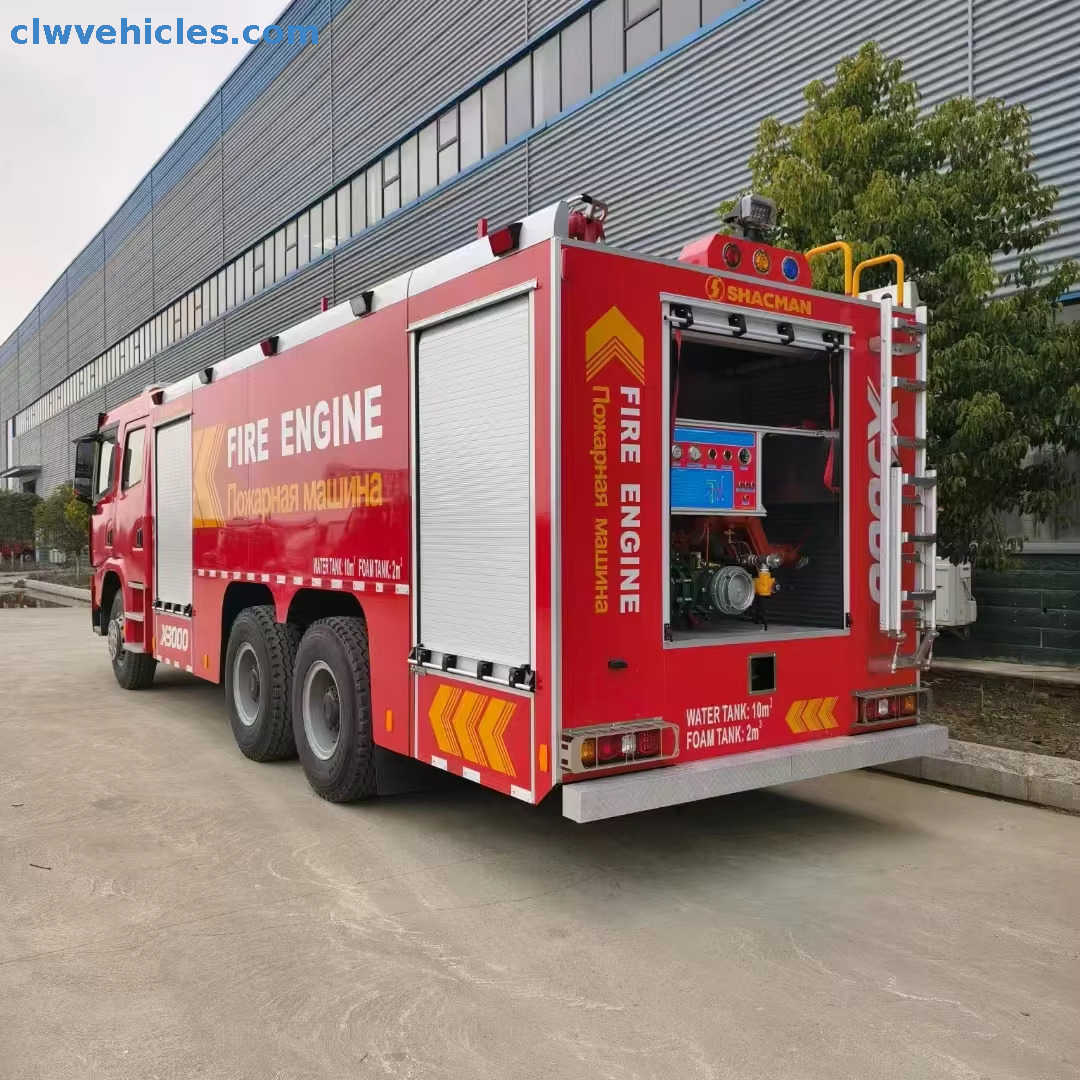

When facing industrial fires where every second matters, the Shacman X3000 Foam Fire Fighting Truck stands as the ultimate responder. Built on the Shacman X3000 6x4 chassis and equipped with CLW Group's advanced firefighting system, it's purpose-designed for oil depots, refineries, airports, and chemical plants where foam-based suppression is essential.
This heavy-duty fire engine integrates high-capacity water and foam tanks, a CB10/60 high-pressure fire pump, and a roof-mounted PS60 water/foam cannon to deliver outstanding reach, flow, and precision. It's a professional-grade solution trusted for industrial safety and emergency rescue worldwide.
At its heart lies the Weichai WP12.430E201 engine, generating 316 kW (430 HP) of unstoppable power. The FAST 10-speed transmission allows operators to maintain perfect control during rapid deployment, while MAN-technology axles (9.5-ton front / 16-ton rear) and 315/80R22.5 20PR tires ensure balanced handling under full load.
The air brake system with a vacuum pump provides instant, reliable braking during high-speed operations, and the 16°/9° approach and departure angles allow smooth navigation over rough or uneven terrain—making it mission-ready for complex emergency zones.
The Shacman Foam Fire Truck is equipped with a 10,000L water tank and 2,000L foam tank, both made from 4mm-thick Q235 carbon steel for corrosion resistance and long service life.

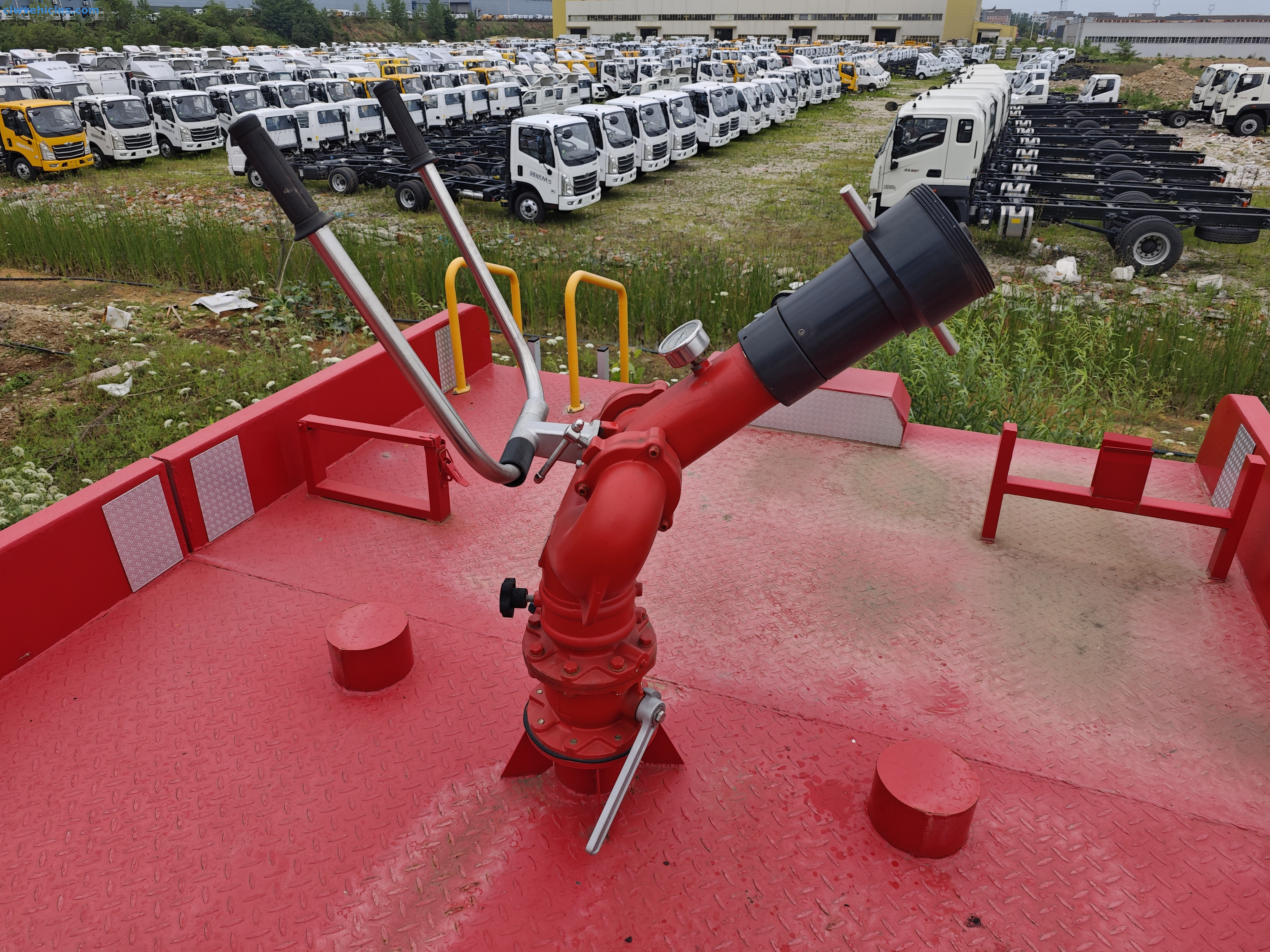

The CB10/60 fire pump delivers a 60L/s flow rate at 1MPa pressure, achieving a ≤35-second suction time from a 7m depth. On the roof, the PS60 fire cannon projects a jet over 65 meters, with 360° horizontal rotation and -30° to 80° pitch angle for full control and coverage of any fire zone.
The integrated sandwich-type PTO system ensures seamless power transfer from the chassis to the firefighting system, maximizing pump efficiency while minimizing operator fatigue.

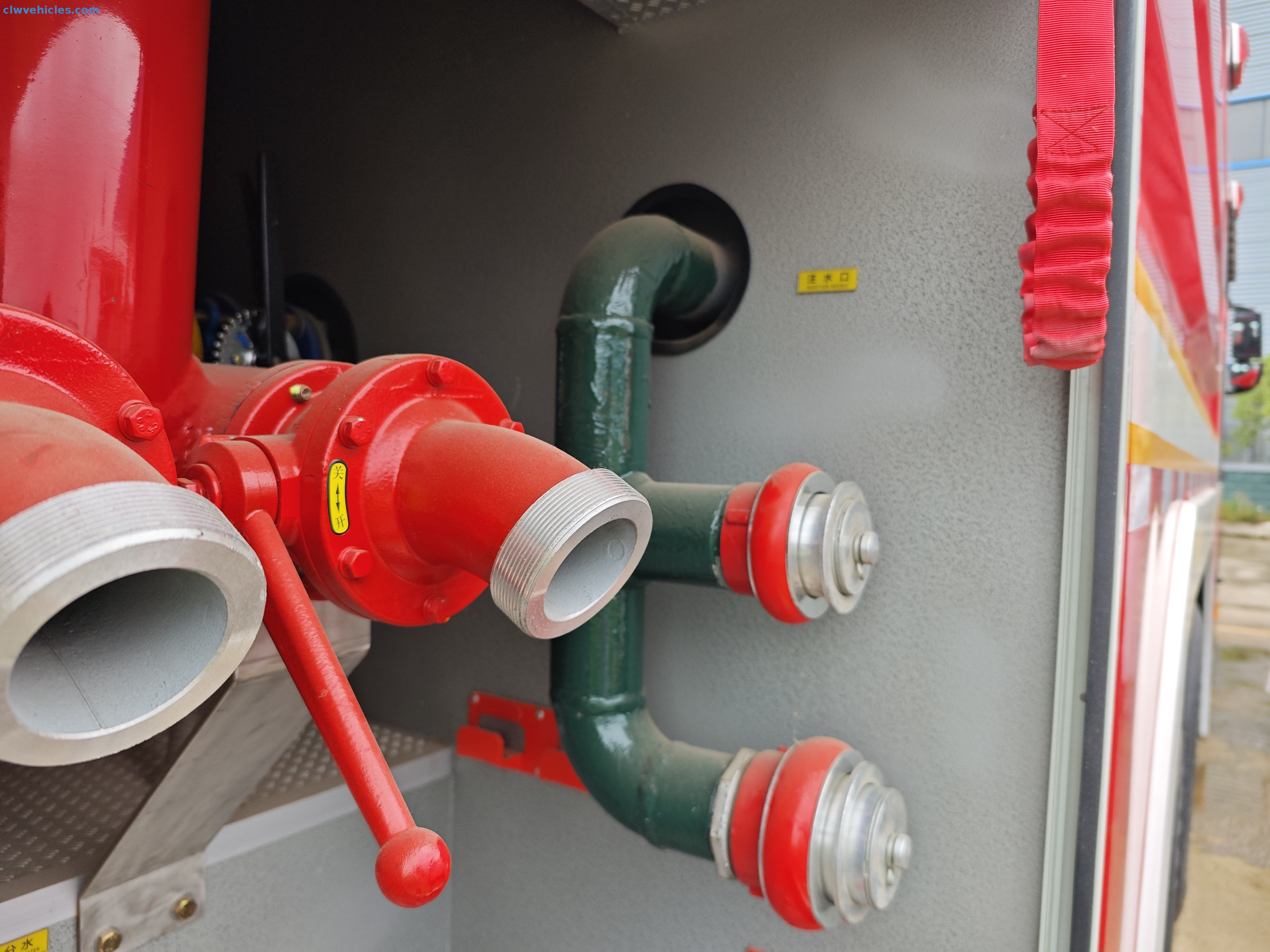

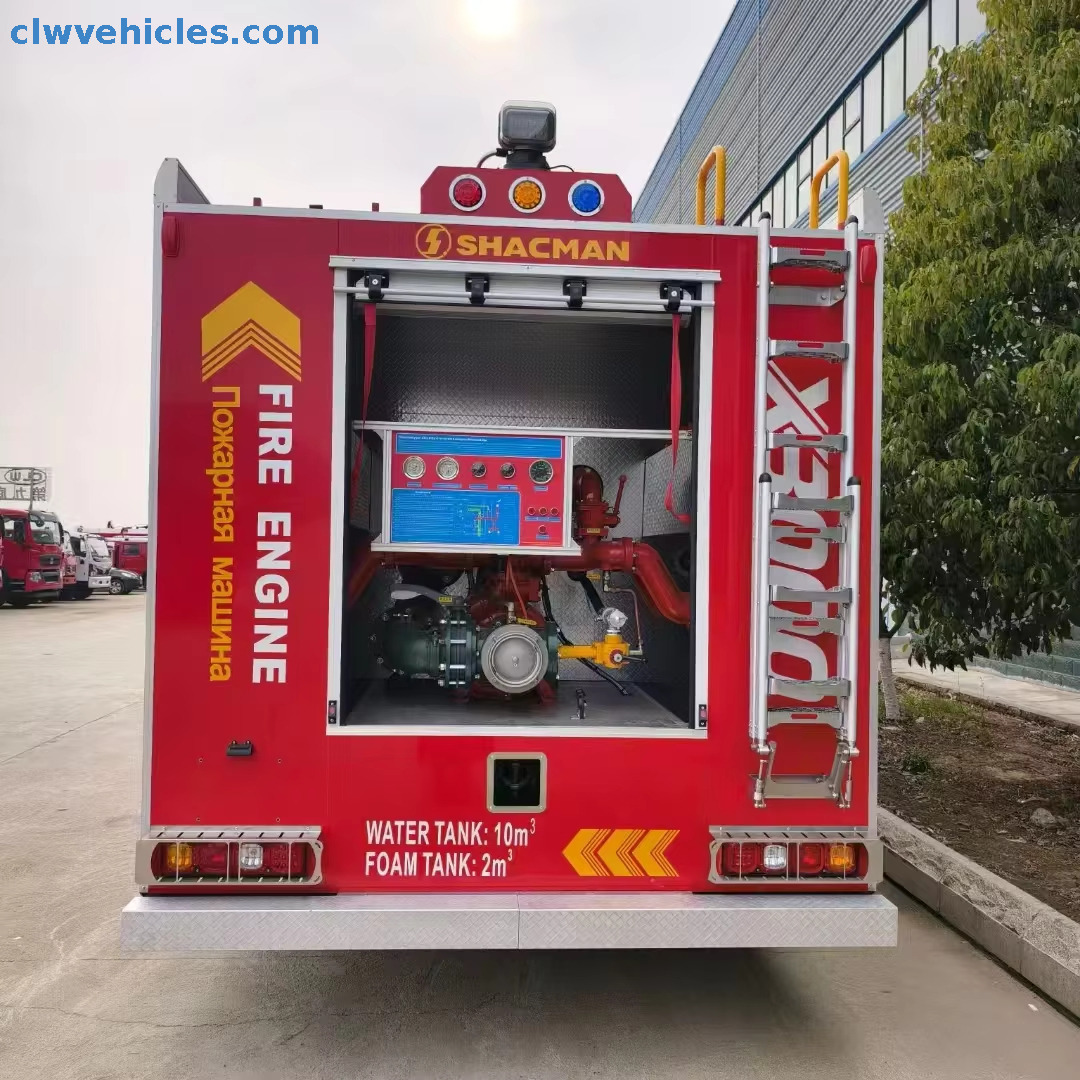

Every detail is designed with firefighters in mind. The ergonomic control console, 12V 60W roof-mounted emergency lights, and complete fire hose system enable rapid deployment under extreme conditions. The dual-cabin layout (2+4 seats) provides room for the entire response team, while the 4575+1400mm wheelbase offers stability without sacrificing mobility.
Whether battling industrial blazes, fuel fires, or chemical hazards, this Shacman X3000 Foam Fire Truck delivers uncompromising performance, safety, and reliability—when lives and assets are on the line.
High-Capacity Tanks: 10,000L water and 2,000L foam tanks for large-scale firefighting.
Powerful 430HP Engine: Weichai WP12.430E201 delivers fast acceleration and long-term reliability.
Efficient Fire Pump System: CB10/60 pump with 60L/s flow at 1MPa pressure and ≤35s suction time.
Long-Range Fire Cannon: PS60 model shoots over 65 meters with 360° rotation.
Durable Construction: 4mm Q235 carbon steel tanks resist corrosion and high temperature.
Enhanced Safety: Air brake system with vacuum pump and robust MAN axles.
Operational Comfort: Dual cabin, ergonomic console, and 12V 60W roof lights for night operations.
Customizable Options: Tank size, foam proportioner, lighting, and control system can be configured per user requirements.
| Item | Description |
|---|---|
| Model Name | CLW Group Shacman X3000 Foam Fire Fighting Truck |
| Driving Type | 6x4 |
| Color | Fire Red (custom colors available) |
| Cabin | 2+4 crew seats |
| GVW (kg) | 24,480 |
| Rated Payload (kg) | 11,050 |
| Curb Weight (kg) | 12,980 |
| Wheelbase (mm) | 4575 + 1400 |
| Overall Dimensions (mm) | 10,100 × 2,500 × 3,600 |
| Approach / Departure Angle (°) | 16 / 9 |
| Max Speed (km/h) | 90 |
| Engine Model | WP12.430E201 |
| Engine Type | Turbocharged, Intercooler, Water-cooled, 6-Cylinder |
| Max Output | 316 kW (430 HP) |
| Transmission | FAST 10JSD180 + QH50, 10 Forward / 2 Reverse |
| Brake System | Air Brake with Vacuum Pump |
| Front / Rear Axle (tons) | 9.5 / 16 |
| Tires | 315/80R22.5 (10+1 Spare) |
| Water Tank Volume | 10 m³ |
| Foam Tank Volume | 2 m³ |
| Tank Material | Q235 Carbon Steel, 4mm thick |
| Fire Pump Model | CB10/60 |
| Flow / Pressure | 60L/s @ 1MPa |
| Suction Time | ≤35s (7m depth) |
| Fire Cannon Model | PS60 |
| Range / Pressure | ≥65m @ 1MPa |
| Rotation Angle | 360° Horizontal, -30° to 80° Pitch |
| Power Take-off | Sandwich-type full power PTO |
Q1: What makes the Shacman X3000 suitable for industrial firefighting?
A1: It combines a 430HP high-power engine with a 10m³ water and 2m³ foam system, designed for oil, gas, and chemical fire suppression.
Q2: What is the fire pump model used in this truck?
A2: The truck uses the CB10/60 fire pump, providing 60L/s at 1MPa with rapid suction capability.
Q3: How far can the roof-mounted fire cannon spray?
A3: The PS60 cannon can project water or foam over 65 meters with a full 360° rotation.
Q4: Can the tanks be made from stainless steel or aluminum alloy?
A4: Yes, optional materials are available depending on client requirements and application environments.
Q5: What are the main applications for this truck?
A5: It's ideal for oil refineries, chemical plants, airports, and industrial safety departments handling hazardous materials.
Main Technical Parameters
| Main Technology Parameter | |
| Model Name | CLW Group Shacman Fire Fighting Truck |
| Driving Type | 4x2 |
| Color | Red or based on client's request. |
| Number of Cabs | 2+4 |
| Weights | |
| GVW(kg) | 24480 |
| Rated Payload Weight(kg) | 11050 |
| Curb Weight(kg) | 12980 |
| Dimensions | |
| Wheelbase(mm) | 4575+1400 |
| Front/Rear Overhang(mm) | 1160/1960 |
| Approach/Departure Angle | 16/9 |
| Overall Dimension(mm) | 10100*2500*3600 |
| Max Speed(km/h) | 90 |
| Engine | |
| Engine Model | WP12.430E201 |
| Emission Standard | Euro 5 |
| Engine Type | Water-cooled, four-stroke, with exhaust valve braking, direct injection, and turbocharged intercooling. |
| Max.Output(kw) | 316(430hp) |
| Drive Line | |
| Transmission | FAST Brand: 10JSD180+ QH50; 10Forward/2Reverse Gear, manual operation |
| Steering | Power steering |
| Brake | Air brake system(front and rear drum brakes or air brakes) |
| Axle | |
| Axle | 9.5tons/16tons |
| Tire Specification | |
| Tire Specification | 315/80R22.5 20PR |
| Front Wheel Track(mm) | 2036 |
| Rear Wheel Track(mm) | 1860/1860 |
| Number of Leaf Springs | 3/4+3 |
| Upper Body | |
| Water Tank Volume | 10m³ |
| Foam Tank Volume | 2m³ |
| Raw Material | Water tank material is high quality carbon steel Q235,thickness 4mm. |
| Fire Pump | CB10/60 |
| Fire Cannon | PS60 |
| Standard Configuration | With pipe line, with PTO(power take-off), 12V 60W fire lights on the cabin roof. With full set of fire fighting equipment. |
| Fire Pump | |
| Model | CB10/60 |
| Flow | 60L/s |
| Pressure | 1Mpa |
| Water Diversion time | ≤35s(7m suction depth) |
| Power Take-off | Sandwich type full power take-off |
| Fire Cannon | |
| Model | PS60 |
| Flow | 50L/s |
| Pressure | 1Mpa |
| Water range | ≥65m |
| Rotation angle | 360° horizontal, -30° to 80° pitch |
