Dump trucks and super dumps are critical workhorses in the construction, mining, and heavy-haul industries. Both serve the same general purpose: hauling large loads of loose materials like sand, gravel, or demolition waste. However, there are significant structural, capacity-related, and legal distinctions that differentiate a standard dump truck from its "super" counterpart. Understanding these differences is essential for contractors, fleet managers, and logistics professionals looking to optimize payload efficiency, fuel consumption, and operational costs.

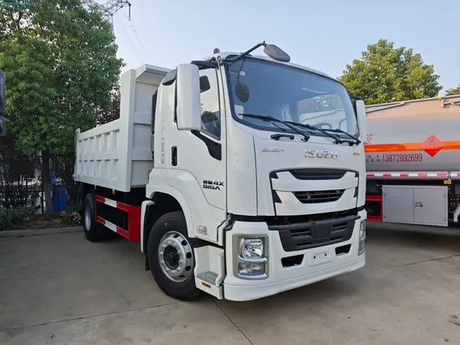

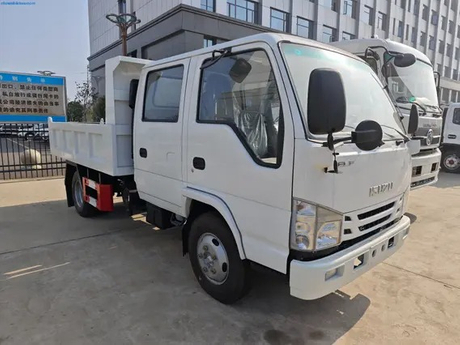

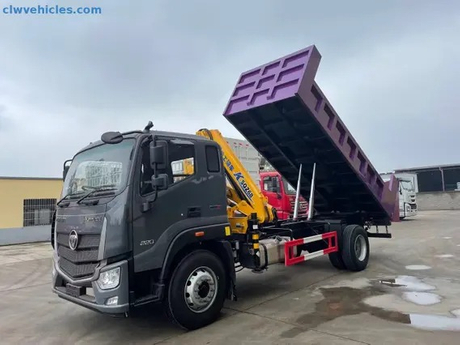

A dump truck is a heavy-duty vehicle equipped with an open-box bed that is hinged at the rear and lifted by hydraulic rams to unload its contents. This design allows quick, efficient unloading of materials with minimal manual labor. Dump trucks come in various configurations, typically ranging from 2-axle to 6-axle designs depending on regional laws and desired payload.
Typical Gross Vehicle Weight (GVW): 33,000 to 80,000 lbs.
Capacity: 10–16 cubic yards.
Applications: Construction sites, landscaping, municipal work, and material transport.
Dump trucks are prized for their versatility, maneuverability, and simplicity. However, they're limited by axle weight laws, which constrain how much material can be legally carried over the road. The more axles a dump truck has, the more weight it can legally carry—but adding axles adds cost and complexity.
A super dump is an advanced version of the traditional dump truck, designed to maximize legal payload capacity by using a trailing axle that extends behind the truck. This "stinger" axle increases the overall axle spacing, allowing for much higher legal weight limits under bridge formula laws in the United States.
Axle Count: Typically 7 or 8, including a trailing axle.
Legal Payload Capacity: Up to 80,000 lbs or more.
Extended Length: Often 20+ feet of axle spacing for bridge compliance.
Capacity: 19–26 cubic yards.
The trailing axle on a super dump automatically lifts and lowers depending on speed, load, and terrain, allowing the truck to function efficiently both on highways and job sites. This feature drastically improves the payload-to-weight ratio, making the super dump a preferred option for high-volume material hauls.
| Feature | Dump Truck | Super Dump |
|---|---|---|
| Axle Count | 2 to 6 | 7 to 8 (includes trailing axle) |
| Payload Capacity | 10–16 cubic yards | 19–26 cubic yards |
| Legal GVW | Up to 80,000 lbs (varies) | Up to 80,000+ lbs with compliance |
| Bridge Formula Compliance | Limited | Fully compliant with extended axle spacing |
| Operating Costs | Lower upfront cost | Higher upfront cost, better ROI |
| Maneuverability | High | Moderate (due to added length) |
| Ideal Use Case | Short hauls, tight sites | Long hauls, high-volume loads |
Standard dump trucks are constrained by bridge laws, which limit axle weight and spacing. Most traditional dump trucks carry between 13 and 15 tons legally. In contrast, the super dump’s trailing axle increases legal spacing, enabling it to carry up to 26 tons while remaining road legal. This extended axle configuration is a game-changer in maximizing payload without violating transportation laws.
While a super dump may cost more upfront due to added components like hydraulic trailing axles, reinforced suspension, and larger beds, the increased hauling capacity can significantly improve operational ROI. Fewer trips mean lower fuel usage per ton, reduced driver hours, and increased job site productivity.
One area where standard dump trucks shine is tight maneuvering. Their shorter wheelbase makes them ideal for urban or congested sites. Super dumps, due to their length, may face challenges in confined spaces. However, on long-distance hauls and highway use, super dumps shine due to their efficiency and legal payload advantages.
Choosing between a dump truck and a super dump depends on your specific operational needs. If your work involves short hauls and frequent stops in tight spaces, a traditional dump truck may be more suitable. However, if your operations require high-volume transport over long distances with minimal trips, a super dump is the better investment.
Project Scope and Volume
Travel Distance
Local Highway Regulations
Initial Budget vs. Long-term ROI
Site Accessibility and Road Widths
Technically, yes. Retrofitting a trailing axle system onto an existing dump truck is possible, but it involves significant mechanical work and cost. It’s often more practical to purchase a purpose-built super dump if high payload is a constant requirement.
Most states in the U.S. recognize bridge formula compliance, making super dumps road legal. However, it's essential to check with your state’s Department of Transportation (DOT) to ensure local compliance.
A standard dump truck can range from $100,000–$150,000, while a super dump can exceed $180,000–$250,000 depending on customization. Though the super dump is more expensive, the cost per load delivered is significantly lower over time.
Though heavier, super dumps require fewer trips to deliver the same volume as multiple dump trucks. This reduces overall fuel consumption per ton transported, improving fleet efficiency.
Understanding the distinction between a dump truck and a super dump is crucial for companies aiming to optimize their material transport strategies. While dump trucks offer flexibility and affordability, super dumps bring unmatched efficiency in legal payloads and long-haul operations. By carefully assessing project needs, budget constraints, and compliance factors, businesses can make informed decisions that significantly boost productivity and profitability.
