CLW5150KBC1
CLW
CLW5150KBC1
Product Description：

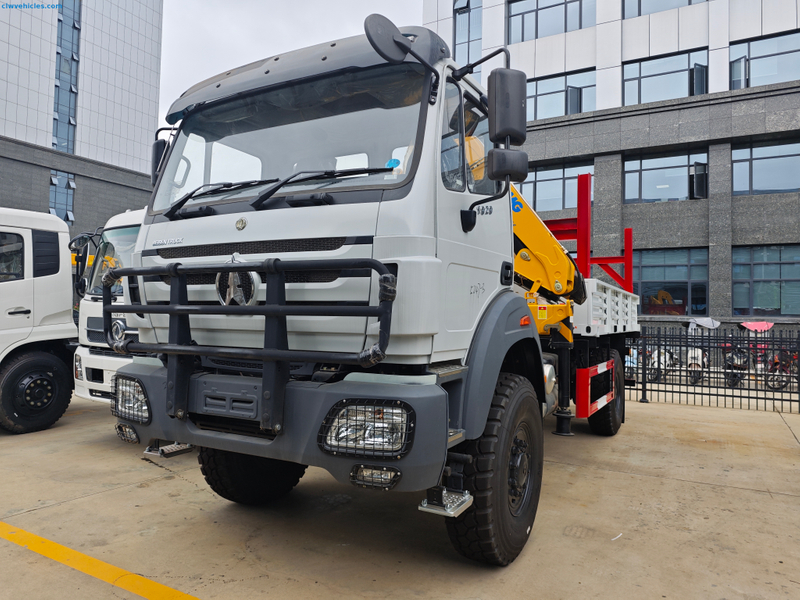

XCMG Q6.3ZK2Q 6.3 Ton Knuckle Boom Crane on Beiben 4x4 Truck – Rugged Precision for Off-Road Mastery
Engineered to Conquer Tough Terrains and Heavy Lifts
The XCMG Knuckle Boom Crane mounted on a Beiben 4x4 chassis is built for extreme environments, from remote construction sites to rugged mining zones. This CLW Group Knuckle Boom Truck combines off-road capability with precise lifting power, ideal for loading/unloading materials, positioning equipment, or handling logistics in challenging conditions. Whether navigating mud, gravel, or steep inclines, it delivers reliability where conventional trucks falter.
Unstoppable Chassis: Power Meets Durability
Built on Beiben's robust 4x4 platform, this knuckle boom crane truck thrives where others struggle. The WP10.290E32 engine delivers 213kW (290hp) of raw power, optimized for steep grades and heavy payloads. Paired with a 9-speed manual transmission, drivers maintain full control over gear shifts, even on uneven terrain. Reinforced 9-ton front/16-ton rear axles and 14.00R20 tube tires (6+1 spare) provide unmatched traction and stability, while the drum brake system ensures reliable stopping power in harsh conditions.
XCMG Q6.3ZK2Q Crane: Precision in the Wild
At its core lies the Q6.3ZK2Q knuckle boom crane, engineered for heavy lifting in confined or unstable spaces. With a 13.2-ton-meter max lifting moment and 6,300kg max capacity, it handles industrial equipment, construction modules, or bulk materials effortlessly. The 8.01-meter hydraulic outreach and 0.96-ton-meter rotational torque allow precise 360° positioning, while the 5,210mm outrigger span and 1,050mm installation space ensure stability on soft or sloped ground.
Smart Design for Demanding Environments
Operators benefit from hydraulic power steering, reducing fatigue during long shifts, and a compact 6,850mm frame with a 14°/12° approach/departure angle for navigating tight trails or rocky paths. The crane’s knuckle boom design folds compactly, minimizing transport height while maximizing reach around obstacles. Dual-stage outriggers and reinforced stabilizers provide a rock-solid base, even on uneven surfaces.
Why Choose This Knuckle Boom Crane on Beiben Truck?
From XCMG's industry-leading crane tech to Beiben's off-road prowess, this CLW Group Knuckle Boom Truck excels in durability, adaptability, and raw power. Its 4x4 drivetrain conquers mud, snow, or sand, while the corrosion-resistant build withstands harsh weather. Whether servicing oil fields, forestry projects, or disaster relief, this XCMG Knuckle Boom Crane is built to lift, move, and deliver—anywhere, anytime.
Main Technical Parameters：
| Beiben crane truck（4x2,240hp）XCMG Sq6.3zk2q 6.3 Ton Knuckle Boom crane mounted on beiben cargo truck | ||
| Vehicle Description | Brand | CLW |
| GVW(kg) | 25000 | |
| Curb Weight(kg) | 11590 | |
| Loading Weight(kg) | 13150 | |
| Overall Dimension(mm) | 6850x2500x3385 | |
| Wheelbase(mm) | 4500 | |
| Axle Load(kg) | 9000/16000 | |
| Top Speed(km/h) | 80 | |
| Chassis Brand | Beiben | |
| Chassis Model | ND1180AD6J6Z02 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | WP10.290E32 |
| HP | 290 | |
| Emission Standard | Eu 3 | |
| Displacement/Output(ml/kw) | 9726/213 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2200 | |
| Maximum Torque(N·m) | 1100 | |
| Maximum Torque Speed(rpm) | 1200-1600 | |
| Gearbox | Fuller 9JS150T transmission | |
| Tyre | 14.00R20 Tube; 6+1 spare tire | |
| Cargo Box Size(mm) | 4000*2300*500 | |
| Crane | Crane Model | Q6.3ZK2Q |
| Max. lifting moment(T.m) | 13.2 | |
| Max lifting capacity(kg) | 6300 | |
| Max hydaulic outreach(m) | 8.01 | |
| Slewing angle(°) | 360 | |
| Rotational moment(T.m) | 0.96 | |
| Outrigger span(mm) | 5210 | |
| Installation space(mm) | 1050 | |
| Transport width(mm) | 2480 | |
| Max operating pressure(MPa) | 28 | |
| Recommended pump capacity(L/min) | 25 | |
Precautions during operation:
1. Operate slowly.
- When operating the folding boom crane Q6.3ZK2Q, operate slowly and smoothly to avoid sudden acceleration or deceleration. Especially when lifting and lowering the suspended object, control the speed well to prevent the object from swaying or falling.
- When operating the extension, contraction and rotation of the boom, also proceed slowly to avoid the boom swaying or colliding with surrounding objects due to too fast movements.
2. Maintain good visibility.
- The operator should always maintain good visibility and be able to clearly see the suspended object and the working condition of the crane. If the line of sight is blocked, stop the operation, adjust the position or take other measures to ensure safe operation.
- During the operation, pay attention to observing the surrounding environment to avoid collisions with other objects or people.
3. Pay attention to safety distance.
- When operating the folding boom crane Q6.3ZK2Q, maintain a safe distance from the suspended object, surrounding buildings and people. Generally speaking, the safety distance should be not less than 1.5 times the height of the suspended object.
- Avoid staying or walking under the boom and the suspended object to prevent accidents. If it is necessary to work under the boom, reliable protective measures such as setting up guardrails or warning signs should be taken.
4. Avoid overloading and uneven loading.
- Strictly abide by the rated lifting weight and working range of the folding boom crane Q6.3ZK2Q, and do not overload or have uneven loading. If it is found that the suspended object is overweight or unbalanced, immediately stop lifting and take corresponding measures for adjustment.
- During the lifting process, always pay attention to the load condition of the crane. If any abnormality is found, immediately stop the operation and conduct inspection and treatment.
5. Pay attention to weather conditions.
- In bad weather conditions such as strong wind, heavy rain and thick fog, stop operating the folding boom crane Q6.3ZK2Q. Strong wind may cause the crane to sway and increase the accident risk; heavy rain and thick fog will affect visibility and reduce operational safety.
- If operating outdoors, pay attention to the weather forecast and take preventive measures in advance. After wind and rain, inspect the crane to ensure that its performance and safety devices are normal.
6. Regular inspection and maintenance.
- Regularly inspect and maintain the folding boom crane Q6.3ZK2Q to ensure that its performance and safety devices are always in good condition. The inspection contents include the wear, damage and looseness of various parts such as the boom, wire rope, hydraulic system and safety device.
- Conduct maintenance according to the specified time and mileage, and replace wearing parts such as lubricating oil and filter elements. If any problem is found, repair or replace it in time and do not operate with faults.
