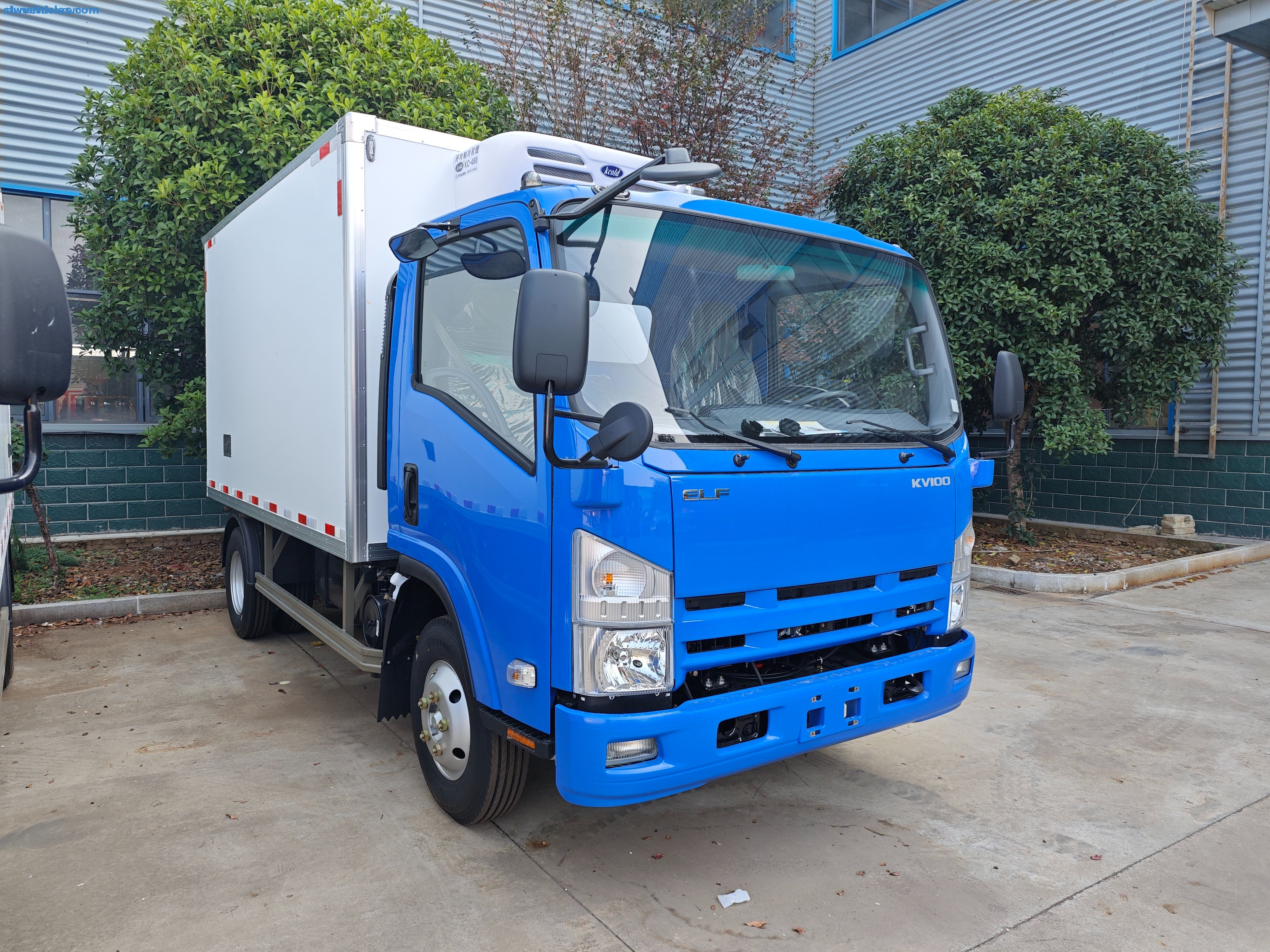

ISUZU KV100 4x2 KC-480 Cooling Reefer Truck

The following is the description of this ISUZU KV100 4x2 Cooling Reefer Truck:
This reefer truck is based on the ISUZU KV100 4x2 chassis and is equipped with 7.00R16LT 14PR. The refrigeration unit uses KC-480, with a refrigeration capacity of 2300W and an air supply volume of 1500m³/h.
Availability:
Quantity:
Inquire Add to Basket

  • ZU ELF

  • CLW

  • CLW5180RV8

Previous:
Next:
Refrigerator Truck Cooling Box Truck ISUZU reefer truck freezer truck truck refrigerator truck fridge Cooling Freezer Truck Refrigerated Truck howo reefer truck
Product Description
Features
Details
Benefits

Customizable and Reliable Refrigerated Transport Solution

The ISUZU 4x2 Refrigerator Van Truck offers a robust and customizable solution for transporting temperature-sensitive goods. With flexible features and cutting-edge technology, this refrigerated van is designed to meet the needs of businesses in logistics, food, pharmaceuticals, and more. Explore the key features and options below to find the perfect refrigerated vehicle for your business.


Main Technical Parameters:


Vehicle DescriptionBrandCLW
GVW(kg)7300
Curb Weight(kg)3750
Loading Weight(kg)3355
Overall Dimension(mm)6010x1920x2880
Wheelbase(mm)3360
Front/Rear Overhang(mm)1110/1625
Approach/Departure Angle19/12
Axle Load(kg)2580/4720
Number of Cabs3
Top Speed(km/h)95

Chassis BrandISUZU
Chassis ModelQL1073BUHAY
CabinSingle,LHD,with A/C
EngineModel4KH1CN6LB
HP132
Emission StandardEuro 5
Displacement/Output(ml/kw)2999/97
Fuel TypeDiesel
Maximum Torque(N·m)290
Gearbox5Forward/1Reverse Gear
Tyre6+1spare tire;7.00R16LT 14PR

VanBox Size(mm)4060x2100x2000
MaterialFiberglass
Insulating Layer8cm polyurethane foam
RefrigeratorBrandKcold
Applicable Temperature`-25~+30°C
Air Volume(m³/h)2300
Air Speed(m/s)3.3
Condenser Dimensions(mm)1023x435x316
Evaporator Dimensions(mm)1080x627x220
RemarksPart Optional:Ventilation Slot
Hook
External Power Supply
Side Door



Key Features of the ISUZU 4x2 Refrigerator Van Truck

  • Customizable Refrigeration Systems: Tailor your refrigeration needs with various options, including underfloor refrigeration units, backup systems, and standby refrigeration units. This Refrigerator Van Truck ensures optimal temperature control for perishable goods.

  • Insulated Doors and Side Protection: Choose from insulated roller shutter doors or standard insulated doors. The side protection is available in durable 6063 aluminum alloy or Q235 steel, ensuring high-strength and impact resistance. The truck is designed to keep goods cool and safe during transport.


  • Hydraulic Tailgate Option: For easy loading and unloading, opt for a hydraulic tailgate. The retracted horizontal length of the tailgate is 290mm, with a mass of 450kg, providing a smooth and efficient operational flow.


Additional Customization Options for Your ISUZU Refrigerator Van Truck


  • Chassis and Front Design: Customize the front signage, lamps, and bumper based on your chassis selection. The vehicle can be configured with a one-and-a-half-row cab and mirrors. Side doors are also customizable: choose from a single door, double door, or no door, as per your needs.

  • Insulated Composite Panels: The Refrigerator Van Truck comes equipped with insulated composite panels, enhancing temperature retention and making it an ideal solution for industries requiring strict temperature control.

  • Flexible Fuel and Tank Installation: Depending on the chassis, fuel tanks, batteries, urea tanks, and air storage cylinders can be installed on either side, offering flexibility in layout and design.

  • Refrigerator van inside

Material and Protection Details for Durability

  • Durable Construction Materials: The side protection and rear lower protection are made of high-quality Q235 steel or 6063 aluminum alloy, both bolted securely to the vehicle’s frame for added strength and protection.

  • Rear Protection Design: The rear protection is available in a three-segment welded structure when a hydraulic tailgate is selected. The cross-section of the rear protection measures 120mm × 75mm (Q235) or 120mm × 50mm (6063 aluminum alloy), ensuring strong defense against impacts.

Why Choose the ISUZU 4x2 Refrigerator Van Truck?

The ISUZU 4x2 Refrigerator Van Truck is engineered for businesses requiring a reliable and customizable refrigerated transport solution. Whether you're transporting food, pharmaceuticals, or other temperature-sensitive goods, this truck provides flexibility, reliability, and durability.

Refrigerator van truck details

type of Refrigerator van truck

cooling system


Key Benefits Include:

  • Flexible refrigeration units to suit various power requirements.

  • Customizable side doors and tailgate options for easy access.

  • High-quality materials ensuring long-lasting protection and performance.

  • Flexible fuel tank and battery installation options to fit your operational needs.

This ISUZU Refrigerator Van Truck is the perfect solution for companies looking to optimize their refrigerated transportation needs.
