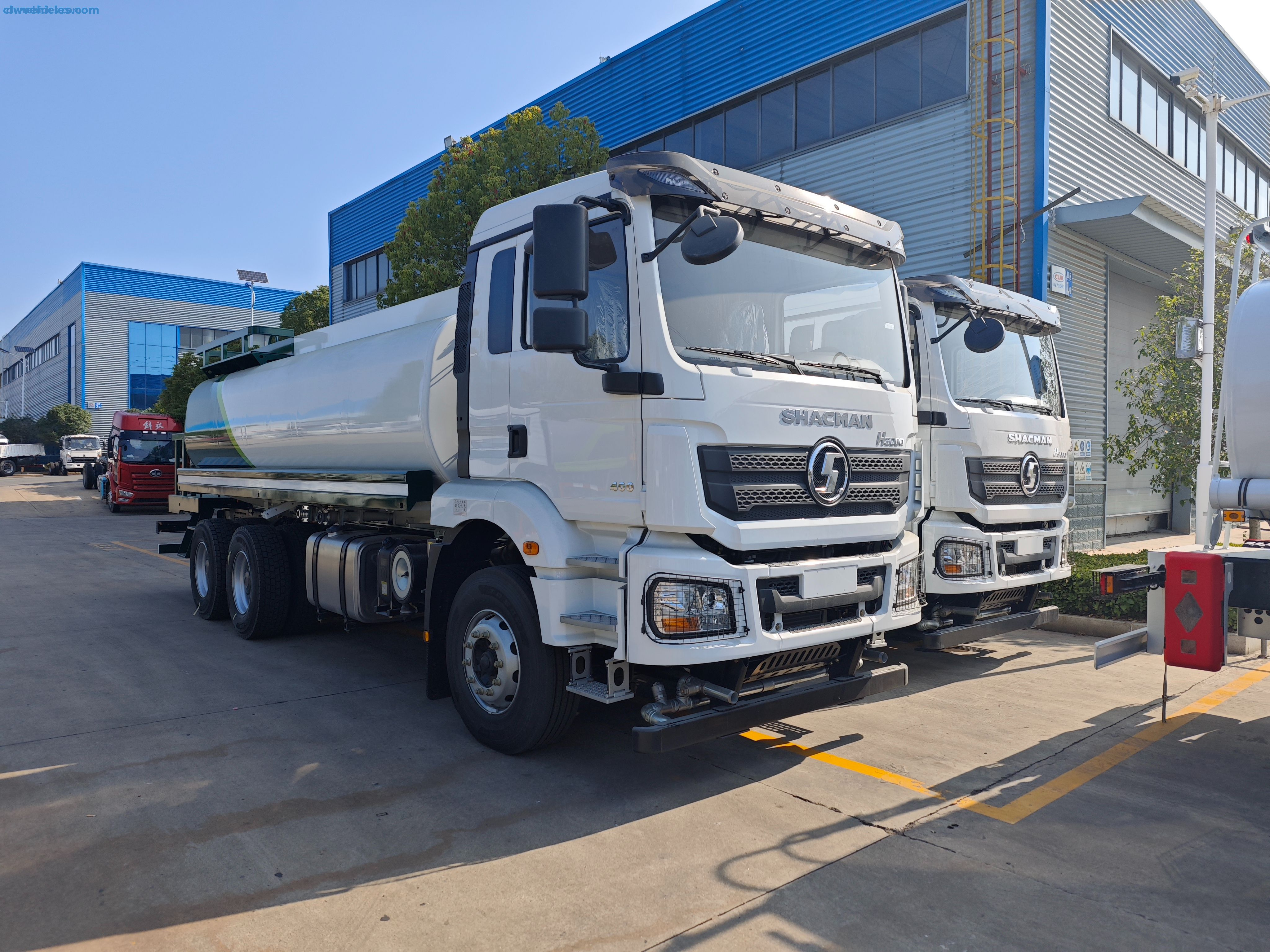

Shacman H3000 Watering Truck – Product Specifications and Customization
High-Capacity Water Tank for Efficient Transport
The Shacman H3000 watering truck is designed for optimal water transport, featuring a total tank capacity of 21.2 cubic meters and an effective tank volume of 20 cubic meters. This robust capacity allows for the transport of water with a density of 800 kilograms per cubic meter, ensuring reliable performance in demanding applications.
Precise Tank Dimensions and Modifications
The tank dimensions are carefully crafted to meet operational needs, measuring 7200 mm (length) × 2400 mm (width) × 1700 mm (height). For enhanced adaptability, this truck is modified exclusively for chassis with a wheelbase of 4375+1400 mm, providing a secure and efficient fit for seamless performance.
Durable Protection and Secure Connections
The side and rear protections of the Shacman H3000 are made from high-quality Q235 steel, ensuring durability and safety.
Side Protection: Connected using a bolt connection method for easy maintenance.
Rear Protection: Welded for robust and secure attachment. The rear protection has cross-sectional dimensions of 120 mm × 50 mm, with a ground clearance of 470 mm, ensuring compliance with safety standards.
Customizable Paint Finish for Regional and Customer Needs
The paint finish of this drinking water tanker truck is tailored specifically for the Saudi Arabian market, offering superior durability and aesthetic appeal under local conditions. Additionally, the vehicle paint finish can be fully customized to match individual customer preferences, ensuring both functionality and style.
Why Choose the Shacman H3000 Watering Truck?
High-capacity tank for large-scale water transport.
Adaptable design for specific chassis configurations.
Durable construction with secure and reliable protection systems.
Customizable paint options to suit regional and individual requirements.
Contact us today to learn more about the Shacman H3000 Watering Truck and customize it to meet your operational needs!
Main Technical Parameters
| Vehicle Description | Brand | CLW |
| GVW(kg) | 25000 |
| Curb Weight(kg) | 11130 |
| Loading Weight(kg) | 13970 |
| Overall Dimension(mm) | 10270*2550*3260 |
| Wheelbase(mm) | 4375+1400 |
| Axle Load(kg) | 7500/13000 |
| Front/Rear Overhang(mm) | 1525/2700 |
| Approach/Departure Angle | `16/9 |
| Top Speed(km/h) | 80 |
|
| Chassis Brand | Shacman |
| Chassis Model | SX5315GYYHR456 |
| Cabin | Single,LHD,with A/C |
| Engine | Model | WP12.400E62 |
| HP | 400 |
| Emission Standard | Euro 5 |
| Displacement/Output(ml/kw) | 11600/294 |
| Fuel Type | Diesel |
| Rate Speed(rpm) | 1900 |
| Maximum Torque(N·m) | 2000 |
| Maximum Torque Speed(rpm) | 1000-1400 |
| Engine Type | Water-cooled, four-stroke, with exhaust valve braking, direct injection, and turbocharged intercooling. |
| Gearbox | 10JSD180T+QH50; 10Forward/2Reverse Gear |
| Tyre | 10tires+1spare tire; 315/80R22.5 |
| Front Wheel Track(mm) | 2070 |
| Rear Wheel Track(mm) | 1860 |
|
| Tanker Description | Actual Volume(cbm) | 21 |
| Effective Volume(cbm) | 20 |
| Tanker Material | Carbon Steel,Stainless Steel,According to Customer needs |
| Thickness(mm) | 5 |
| Standard configuration | Equipped With |
| 1.Front Sprinkler(rear and side,sprinkling width>14m) |
| 2.Rear Working Platform With Water Cannon(range>28m) |
| 3.Pump(suction Lift>6m) |
| 4.Fire Valve,Water Valve,and Filter Gauze |
| Optional Configuration | 1.Fog Cannon Could Be Available |
| 2.Tanker Material Could Be Customized |
