Dongfeng
CLW
CLW5180TBC4
Product Description：

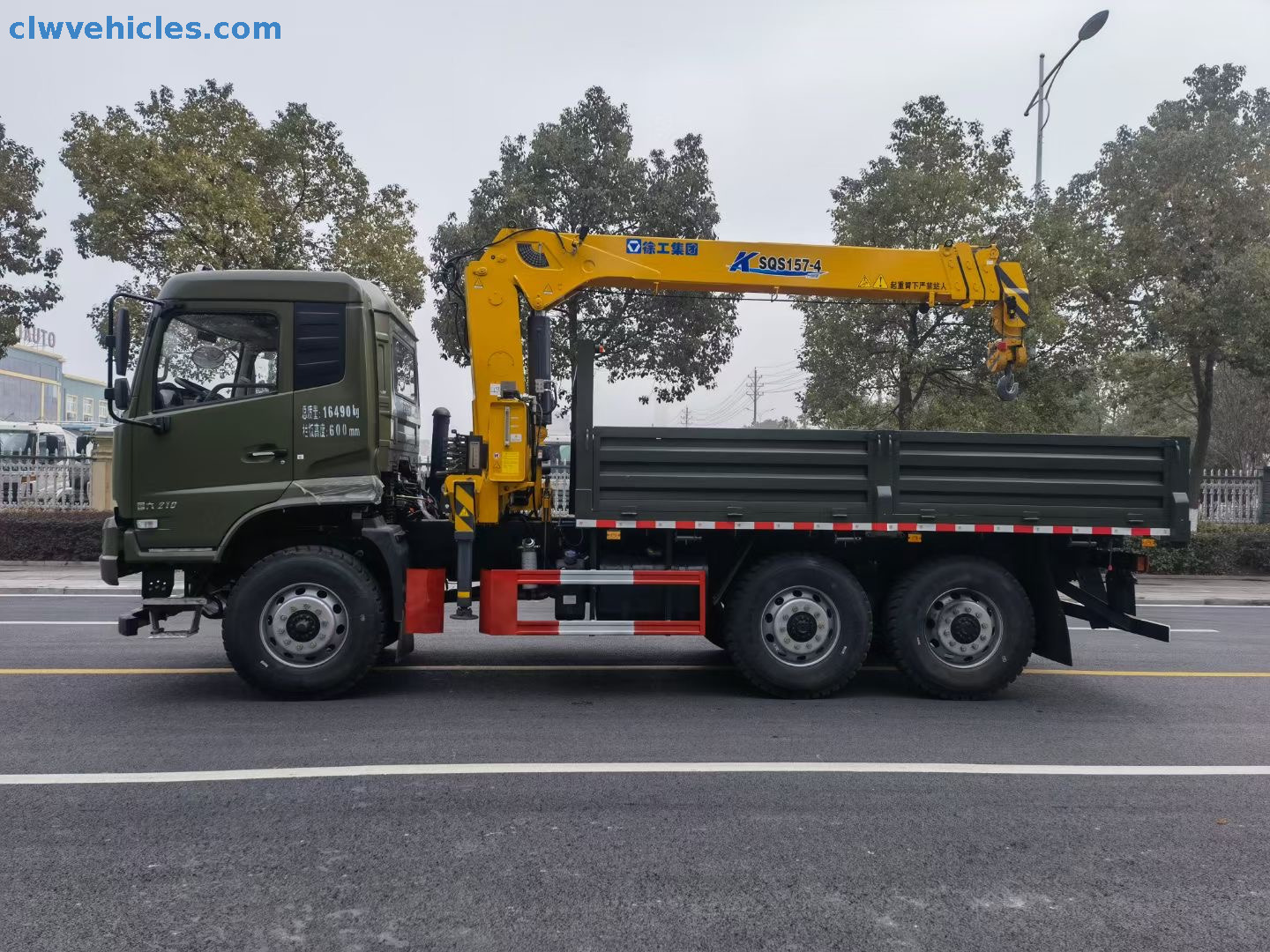

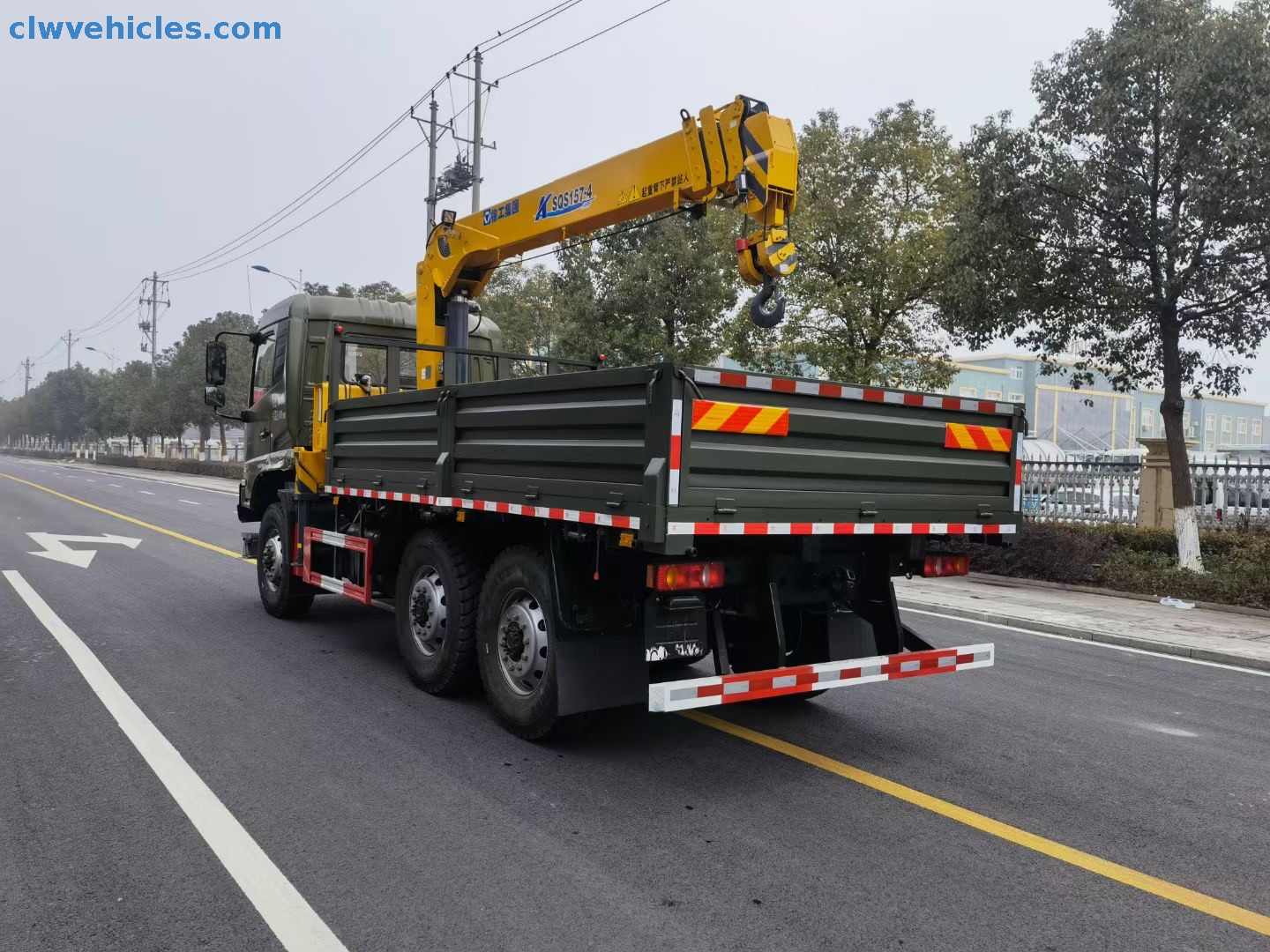

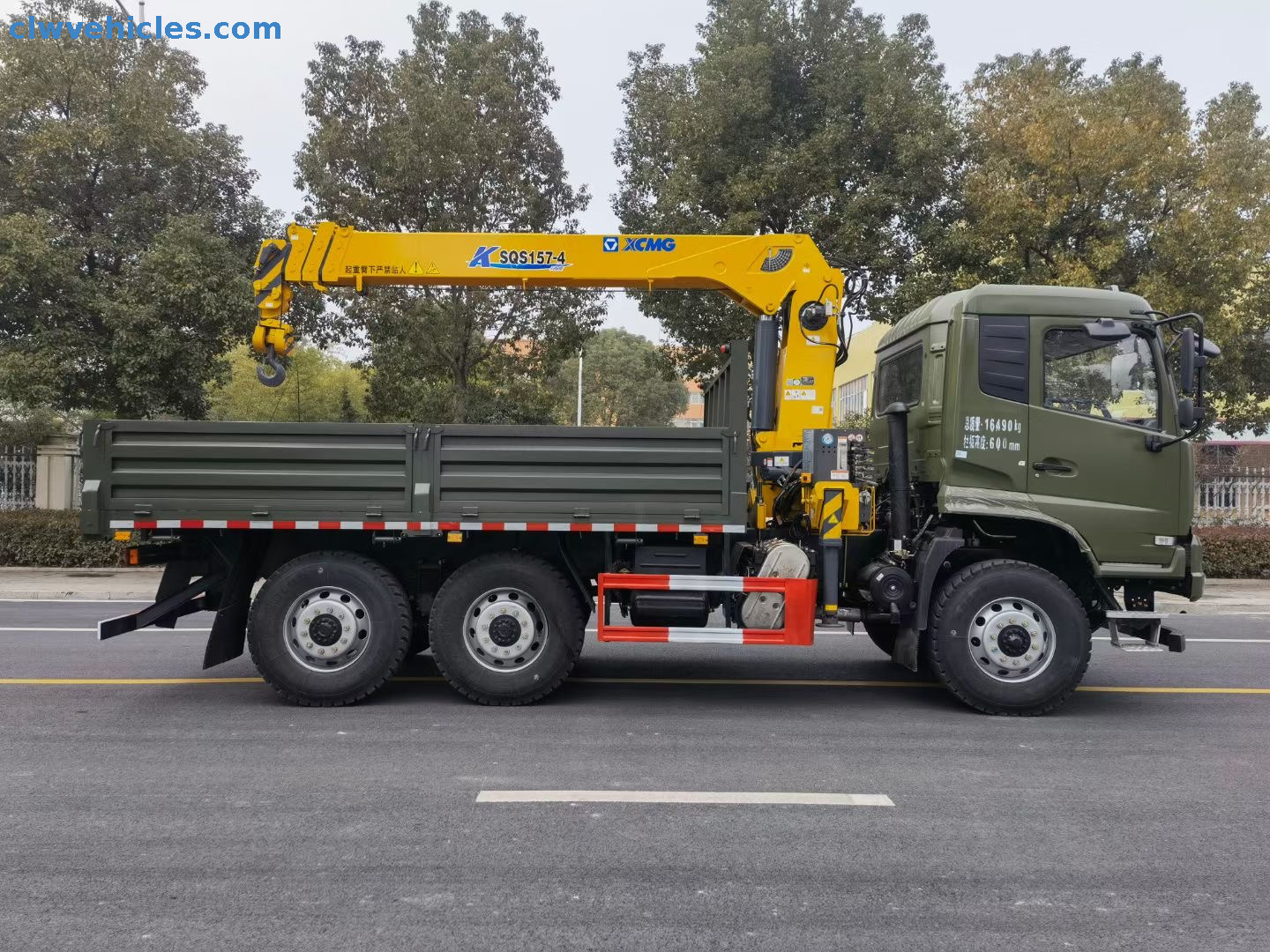

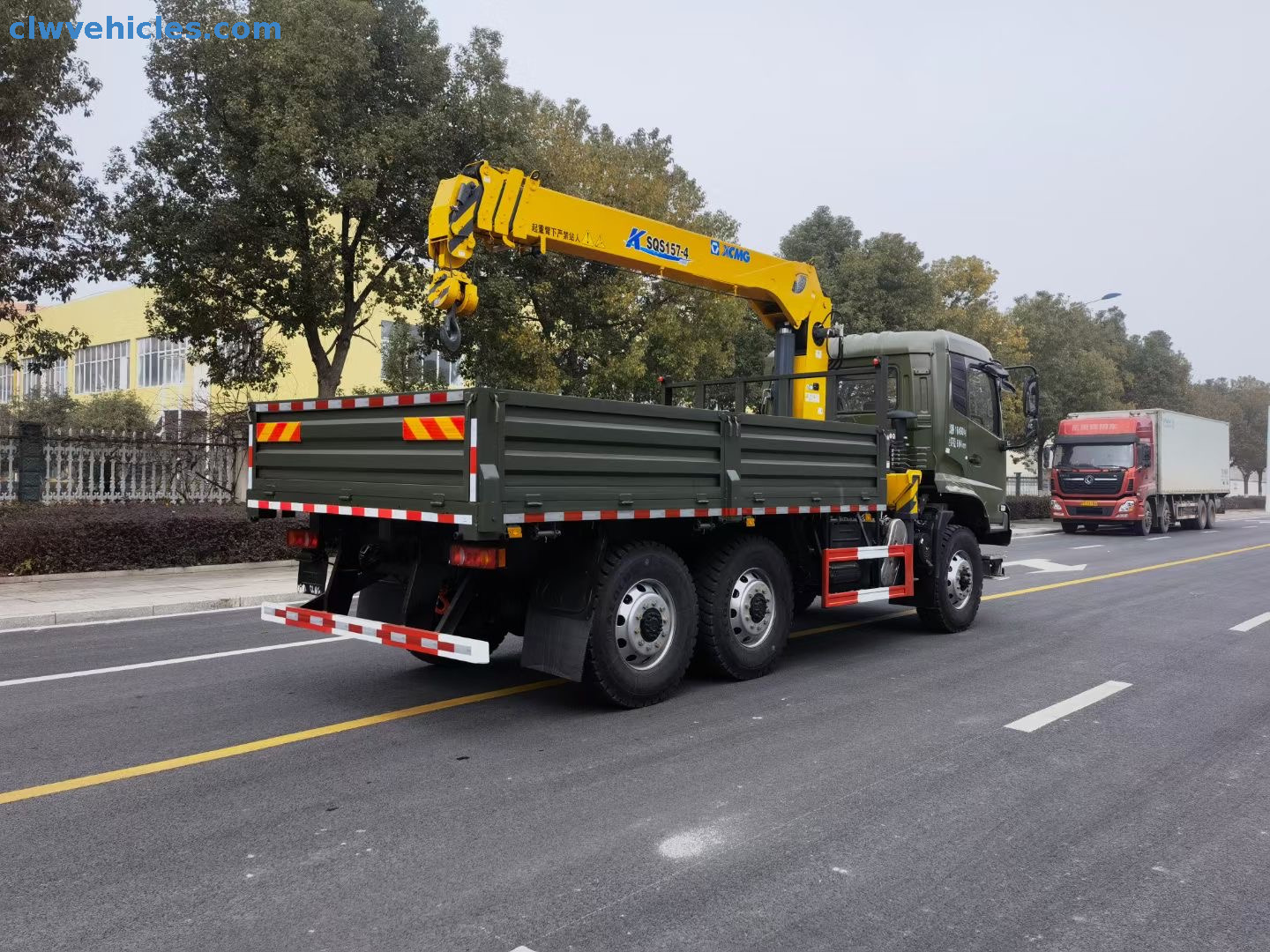

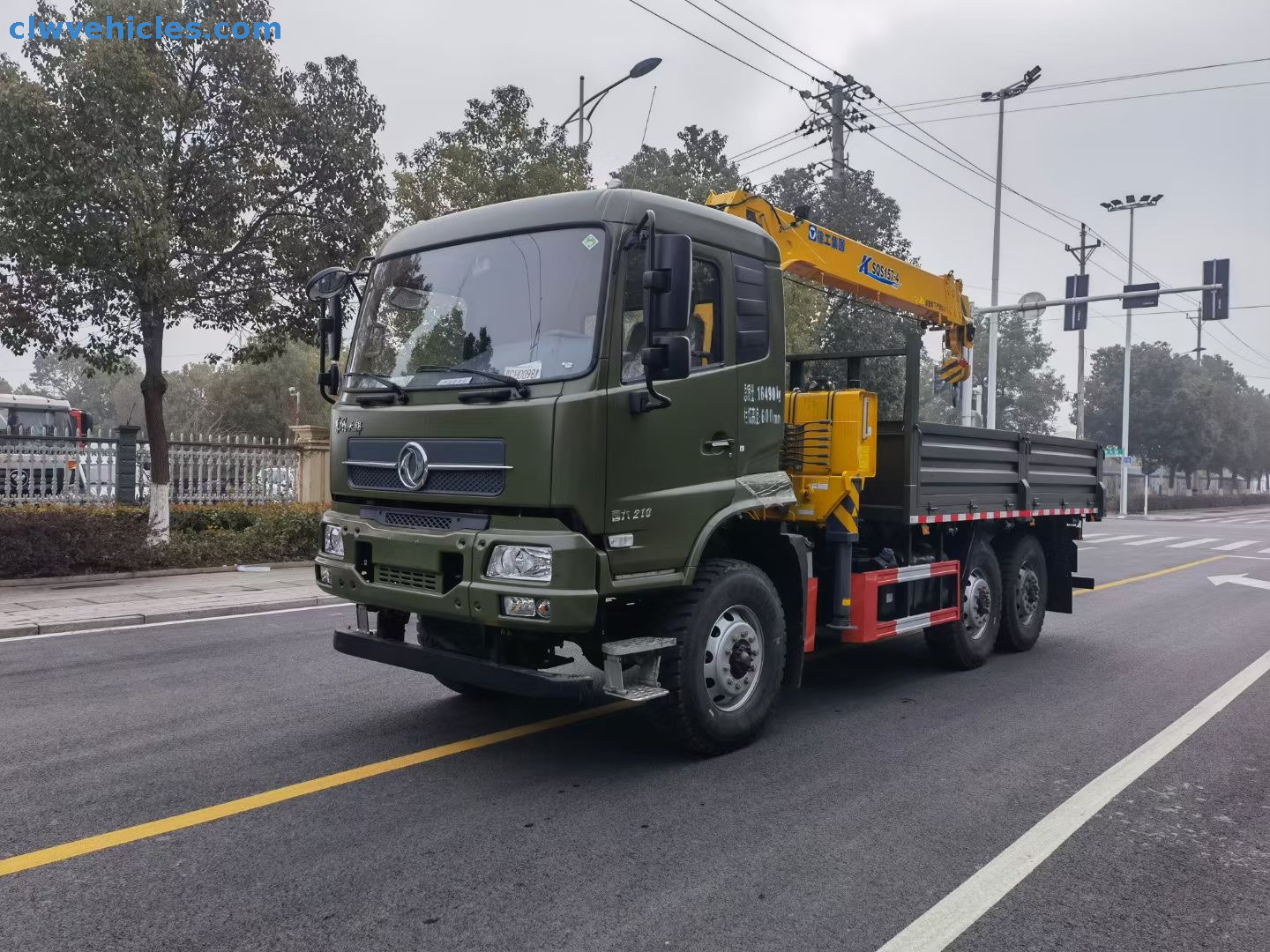

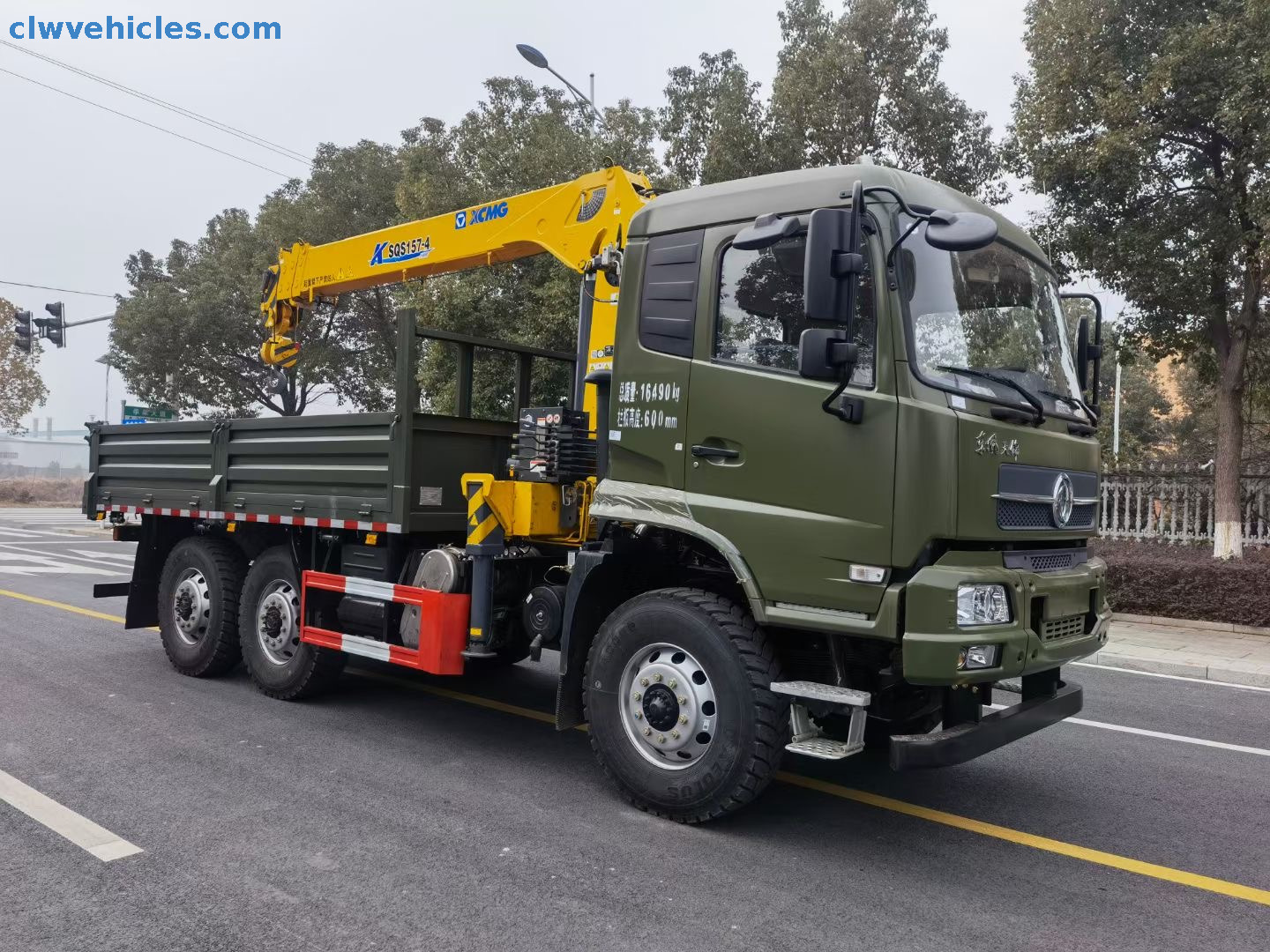

Dongfeng 4×2 XCMG 6.3 Ton Telescopic Boom Truck Mounted Crane – Your Mobile Lifting Solution
When you need a flexible truck mounted crane that goes where you go, the Dongfeng 4×2 XCMG 6.3Ton Telescopic Boom Truck Mounted Crane from CLW Group is the ideal choice. Whether you're on a construction site, setting poles along rural roads, or loading heavy materials at a warehouse, this clw group crane truck puts powerful lifting right behind the cab. Think of it as a truck with crane that travels as easily as a standard flatbed.
This xcmg truck crane shines in any situation where you need fast, precise lifting without a separate crane rig. Use it to set steel beams, place concrete pipes, or unload palletized cargo—then drive off to the next job in minutes. Its compact dimensions (9 m long, 2.55 m wide) make it simple to maneuver through tight urban streets or narrow access roads, all while carrying an 18 ton gross load.
Built on a rugged Dongfeng 4×2 chassis, this dongfeng crane truck balances strength and agility. A 5,000 mm wheelbase and heavy-duty axles (6.5 t front, 11.5 t rear) give stable support under load, and the 10.00R20 tires grip both pavement and gravel with confidence. Under the hood, the B210 33 diesel engine delivers 210 HP and a flat 700 N·m of torque at 1,500 rpm—enough muscle to haul your materials and power hydraulic functions. The WLY6-Speed transmission (6 forward, 1 reverse) keeps shifts smooth whether you’re creeping into position or rolling between sites at up to 89 km/h.
Mounted behind the cab, the KSQS157-4 straight-arm crane offers a max lifting moment of 157.5 kN·m and can safely hoist up to 6,300 kg at its base. The four-section boom extends to 11.2 m, giving you a working radius of 12.6 m to place loads precisely where you need them. With a 100 L oil tank feeding a 40 L/min, 22 MPa hydraulic system, you get smooth, responsive control through the levers. Outriggers fold out easily for quick setup and then tuck away cleanly for transport—true Truck-Mounted Crane convenience.
All-In-One Efficiency: No need to call a separate crane—this Straight Arm Crane Truck handles transport and lifting in a single package.
Compact & Agile: Narrow 2.55 m width and tight turning radius make urban job sites a breeze.
Powerful Performance: 210 HP engine and robust hydraulic system deliver reliable lifting even under heavy load.
Proven Quality: Built by CLW Group on a trusted Dongfeng platform, backed by XCMG engineering.
For a versatile, high-performance truck mounted crane that keeps your projects moving, choose the Dongfeng 4×2 XCMG 6.3Ton Telescopic Boom Truck Mounted Crane—the ultimate clw group vacuum suction sewage truck for modern lifting needs.
Main Technical Parameters:
| Vehicle Description | Brand | CLW Goup |
| GVW(kg) | 18000 | |
| Curb Weight(kg) | 11500 | |
| Overall Dimension(mm) | 9000*2550*3650 | |
| Wheelbase(mm) | 5000 | |
| Front/Rear Wheel Track(mm) | 1915/1860 | |
| Axle Load(kg) | 6500/11500 | |
| Top Speed(km/h) | 89 | |
| Cargo Box Size(mm) | 5800*2450*600 | |
| Chassis Brand | Dongfeng | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | B210 33 |
| HP | 210 | |
| Emission Standard | Eu 3 | |
| Displacement/Output(ml/kw) | 5900/155 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2500 | |
| Maximum Torque(N·m) | 700 | |
| Maximum Torque Speed(rpm) | 1500 | |
| Gearbox | WLY6-Speed 6Forward/1Reverse Gear | |
| Tyre | 10.00R20 18PR | |
| Crane | Crane Model | KSQS157-4 |
| Max Lifting Moment(kN.M) | 157.5 | |
| Max Lifting Capacity(kg) | 6300 | |
| Max Lifting Height(m) | 11.2 | |
| Max Working Radius(m) | 12.6 | |
| Recommend Power(kw) | 18 | |
| Max oil flow of hydraulic system(L/min) | 40 | |
| Max pressure of hydraulic system(Mpa) | 22 | |
| Oil tank capacity(L) | 100 | |
| Installation space(mm) | 2280-5100 | |
Precautions for the operation of a straight boom truck-mounted crane:
I. Before operation
- Check the crane for firm connections, no damaged wire rope, normal hydraulic system, and ensure key parts are intact. Also check vehicle brakes and tire pressure. Confirm solid and flat ground.
II. During operation
- Follow procedures, stay focused. Ensure lifted object is firmly bound. Lift smoothly, avoid overloading. Watch for obstacles when extending/retracting boom. Be careful near maximum angles/radii. Observe for abnormalities. Be cautious in windy conditions.
III. After operation
- Retract and fix boom, turn off hydraulic system and park safely. Regularly maintain and train operators.
