FAW
CLW
CLW5180TBC9
Product Description：

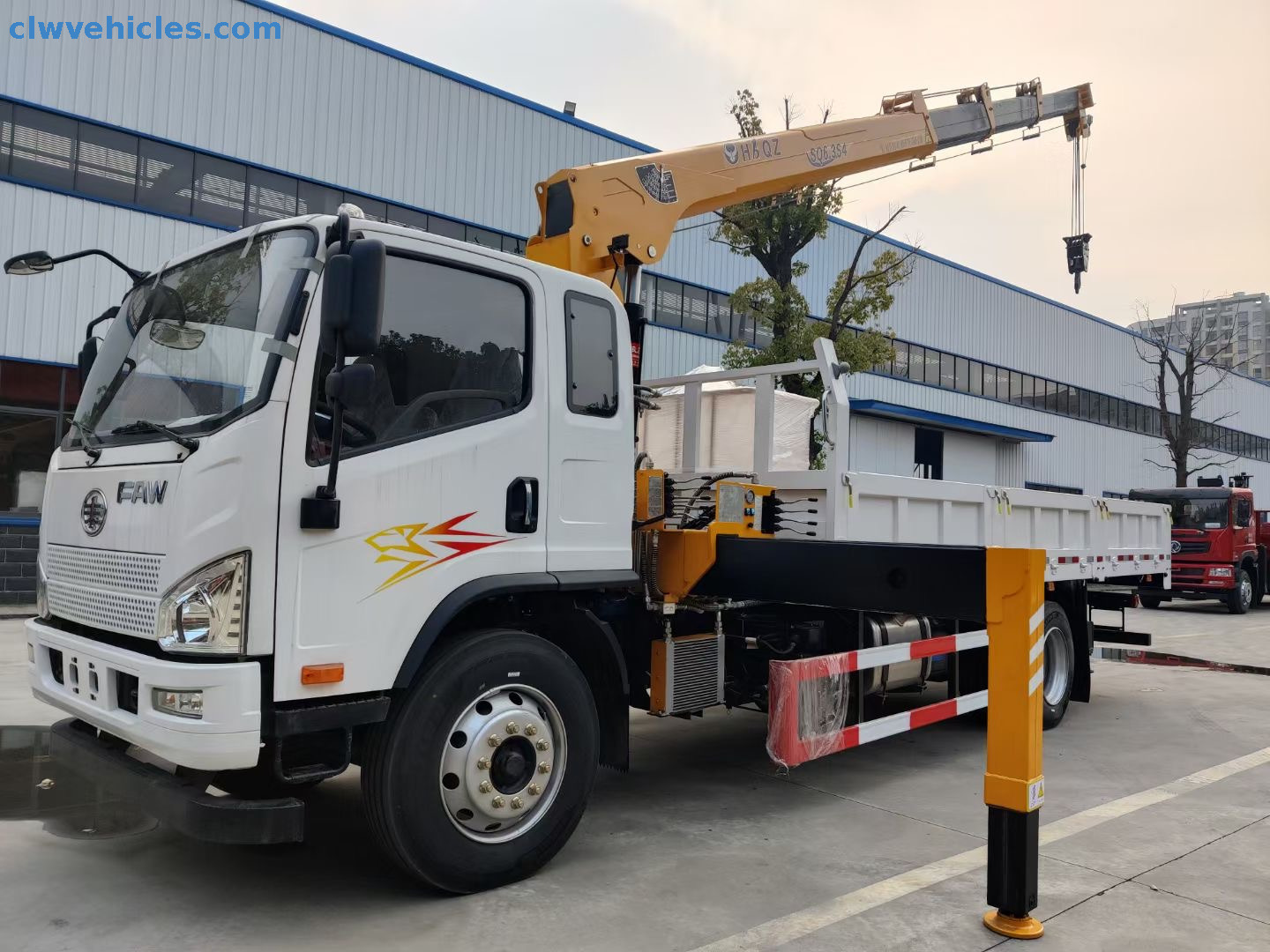

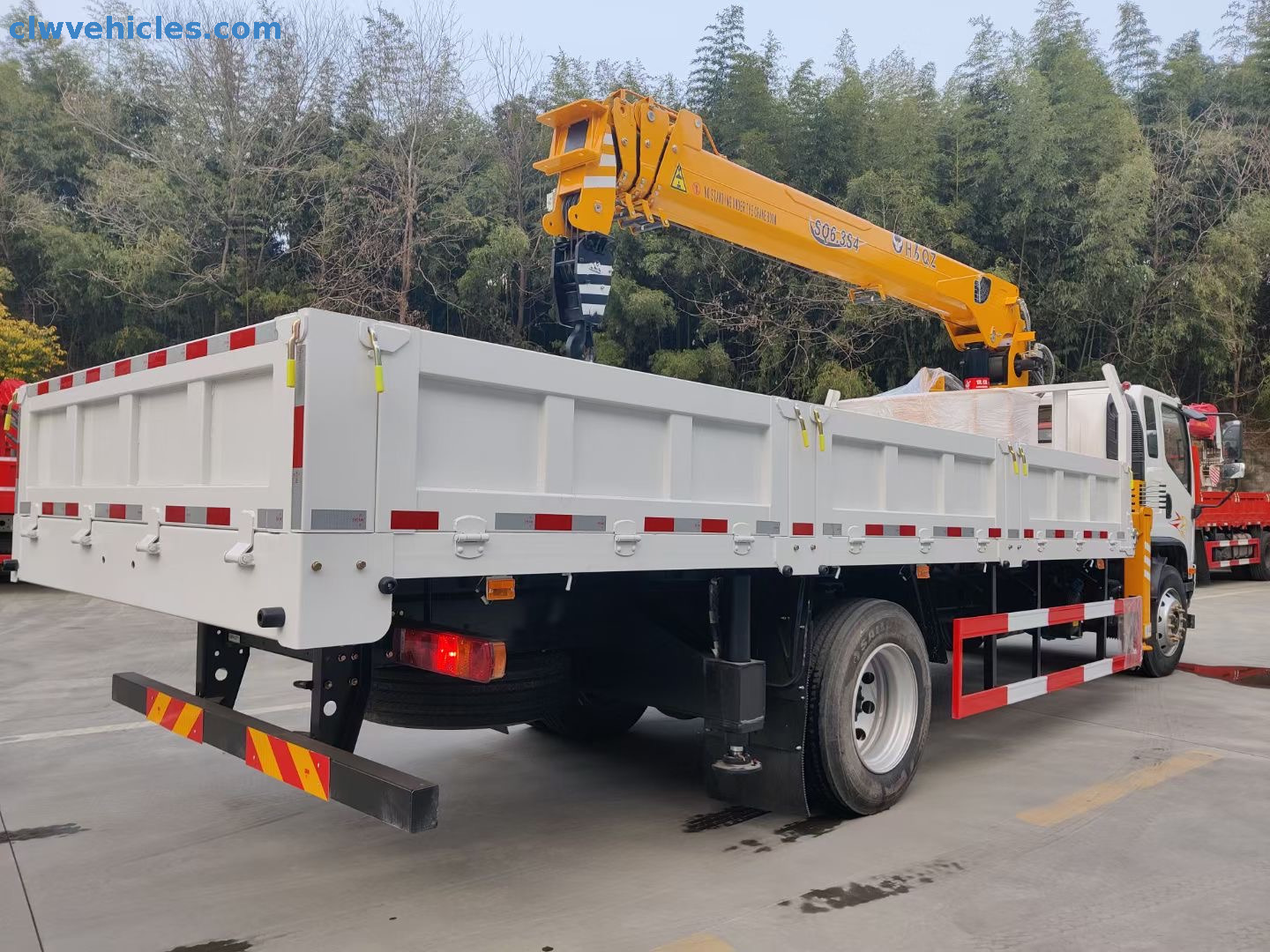

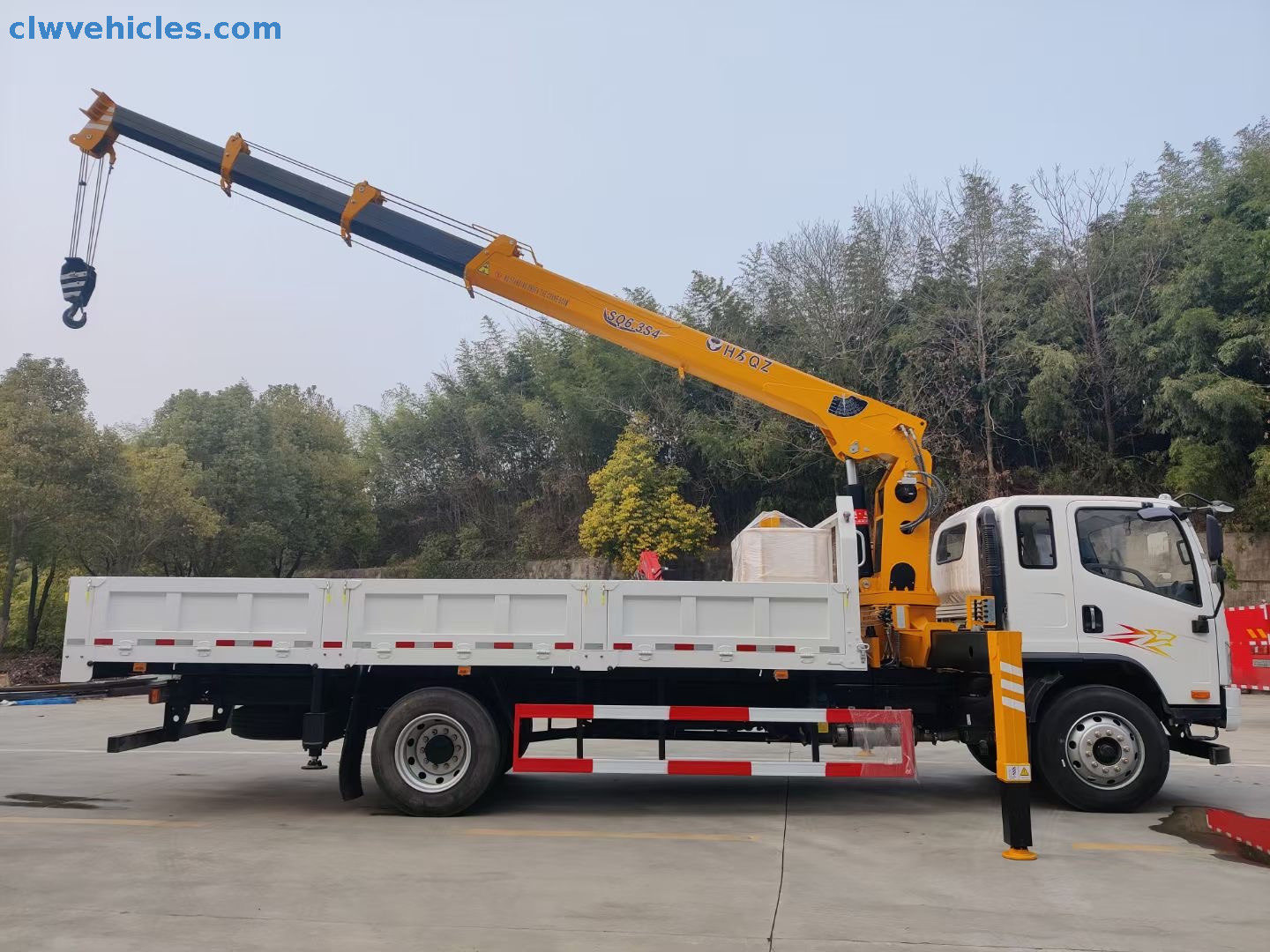

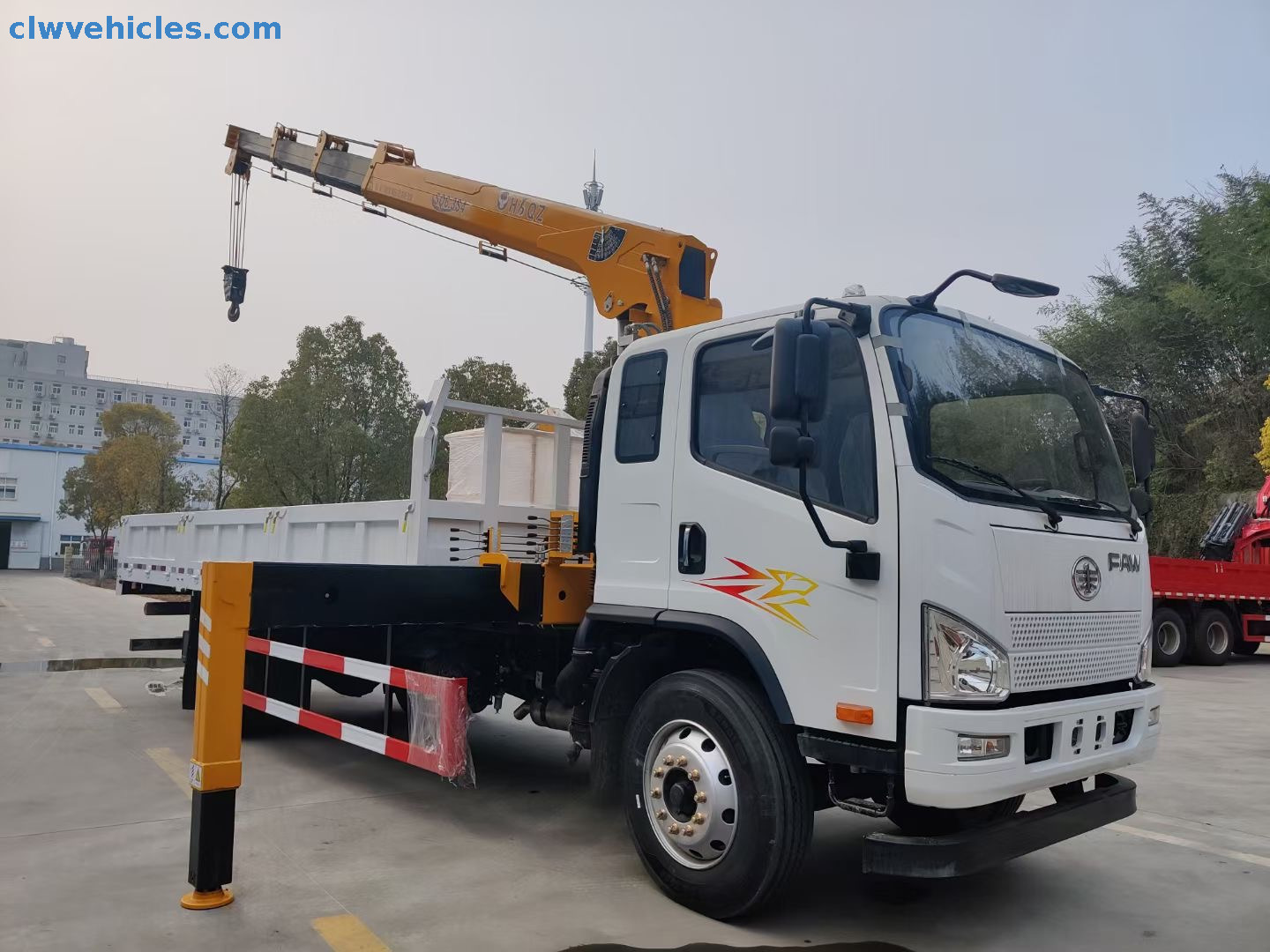

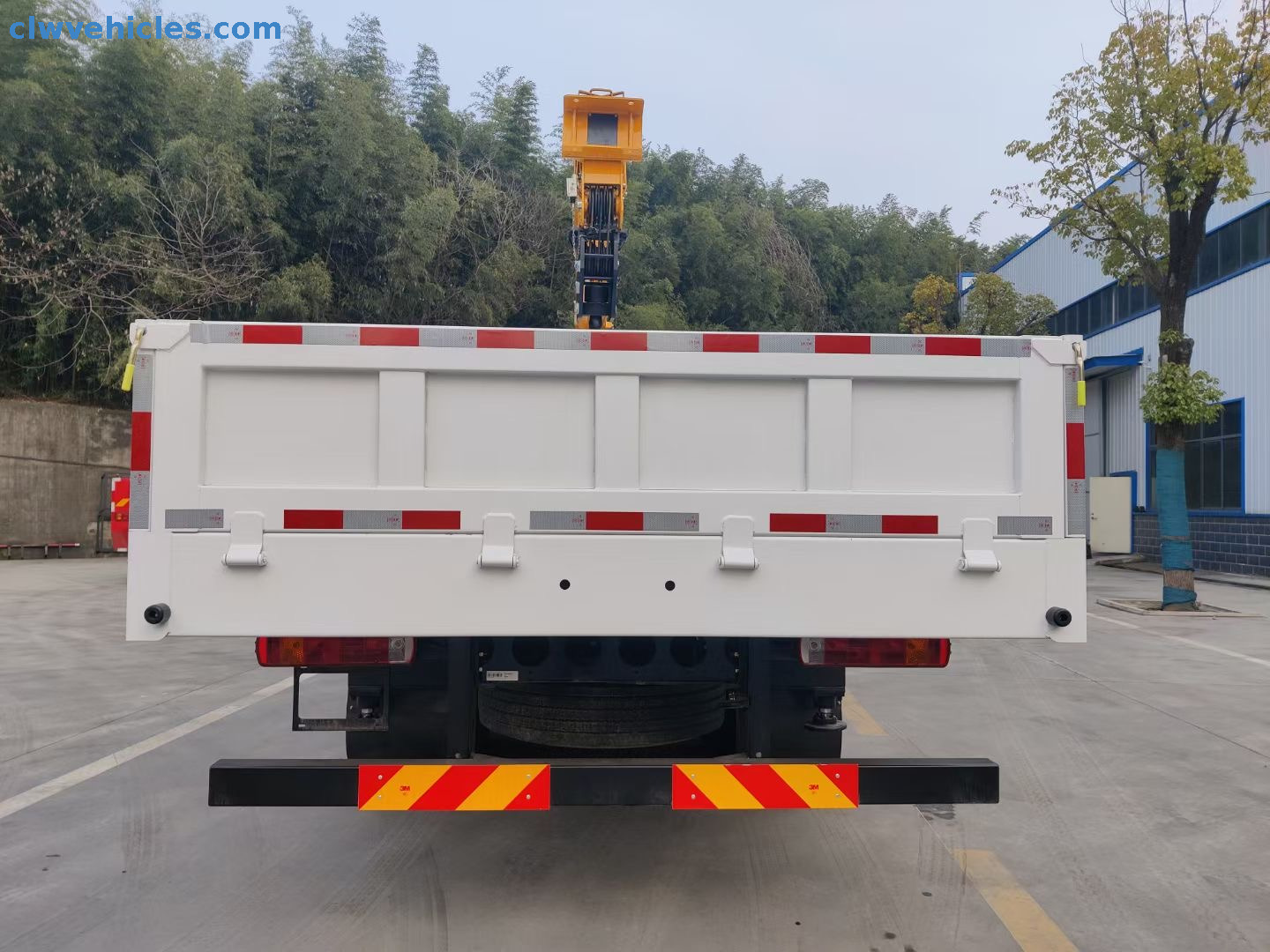

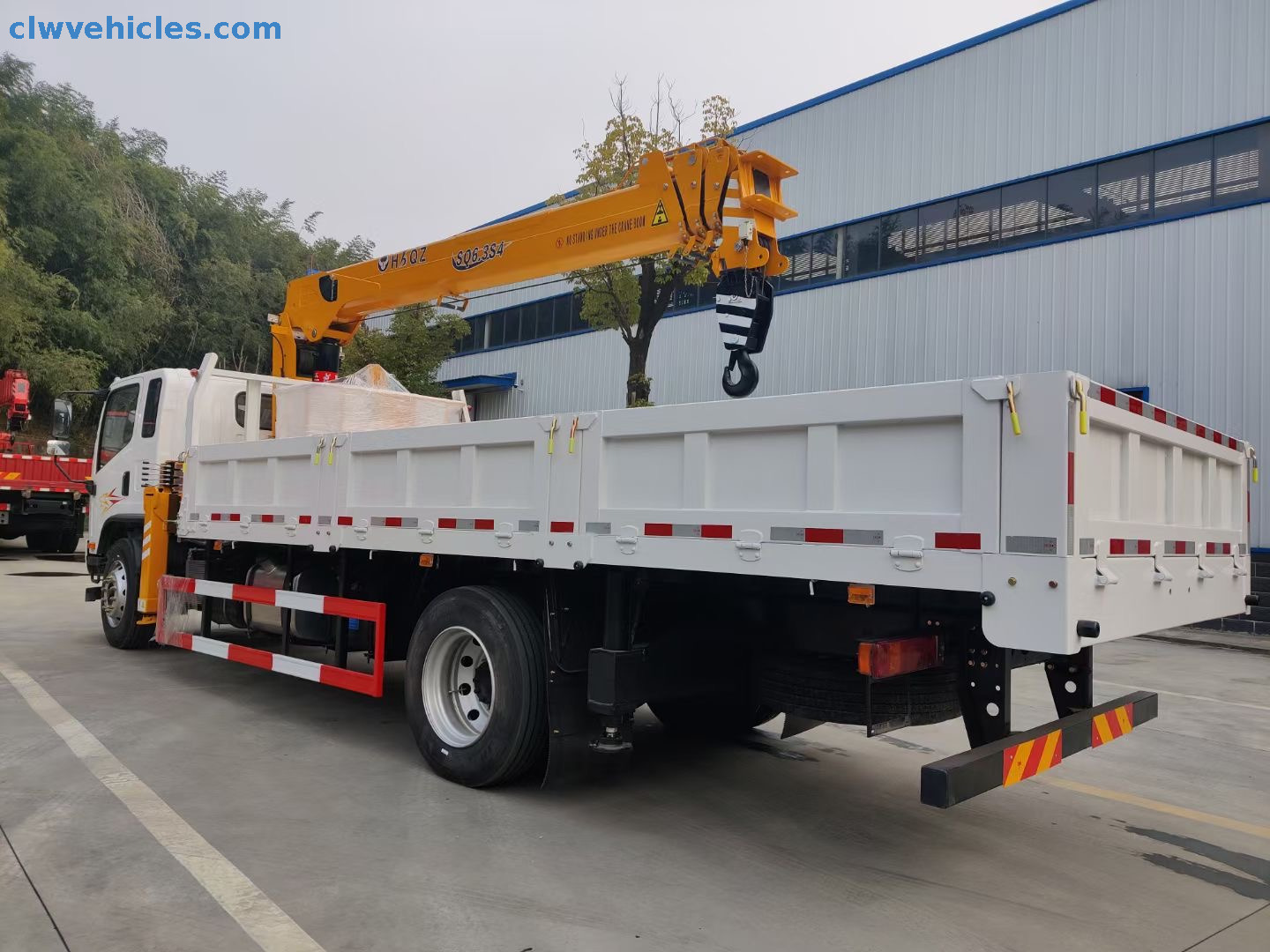

FAW 4×2 Cargo Truck with Telescopic Boom Crane – Your Compact Lifting Solution
When you need to haul materials and lift them into place without calling in a separate crane, the FAW 4×2 Cargo Truck Mounted Telescopic Boom Crane from CLW Group is exactly what you're looking for. This truck-mounted crane combines a nimble cargo deck with a powerful straight-arm crane, making it the perfect Truck with Crane for construction sites, warehouses, and maintenance crews.
Think about unloading pallets of bricks, setting HVAC units on rooftops, or placing beams in tight spots—all with the same vehicle. This Straight Arm Crane Truck handles loads up to 6,300 kg and reaches 13.8 m, so you can lift and carry in one smooth operation. Whether you're a rental yard or a service fleet, this clw group crane truck saves time by combining two jobs into one.
Built on a FAW 4×2 frame, this rig carries an 18 000 kg GVW with a 5,000 mm wheelbase for excellent balance. Under the hood, the CA4DF3-17E3 diesel engine delivers 125 kW (170 HP) and a healthy 600 N·m of torque at 2 300 rpm, meeting Euro 3 emission standards. Paired with a WLY6TS55 6-speed manual gearbox, it gives you precise control whether you're inching into position or cruising at up to 89 km/h. Six 10.00R20 tires (plus a spare) and a 6 500 / 11 500 kg axle load keep you stable under full payload.
The KSQS125-4 crane mounts right behind the cab and boasts a 157 kN·m lifting moment. Its 11.5 m basic boom extends smoothly to 13.8 m, and a 60 L/min hydraulic pump at 23 MPa pressure ensures fast, responsive operation. A 140 L oil reservoir keeps the system running cool, while outriggers stabilize the truck in seconds. Installation space between 2,130 – 5,210 mm gives you flexibility when mounting the crane on the deck.
All-In-One Efficiency: Haul and lift with one vehicle, cutting rental and labor costs.
Compact Footprint: At under 9 m long, it maneuvers where larger cranes can't.
Strong Performance: Reliable FAW powertrain plus XCMG-grade crane components.
Quick Setup: Fast outrigger deployment and intuitive controls get you to work in minutes.
For a 4×2 Truck-Mounted Crane that truly delivers on convenience and capability, the FAW 4×2 Cargo Truck Mounted Telescopic Boom Crane from CLW Group is your go-to solution. It's the reliable, cost-effective lift-and-carry truck you've been waiting for.
Main Technical Parameters:
| Vehicle Description | Brand | CLW Goup |
| GVW(kg) | 18000 | |
| Payload Weight(kg) | 11200 | |
| Overall Dimension(mm) | 8980*2500*3850 | |
| Wheelbase(mm) | 5000 | |
| Front/Rear Wheel Track(mm) | 1757/1860 | |
| Axle Load(kg) | 6500/11500 | |
| Top Speed(km/h) | 89 | |
| Cargo Box Size(mm) | 6000*2450*550 | |
| Chassis Brand | FAW | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | CA4DF3-17E3 |
| HP | 170 | |
| Emission Standard | Eu 3 | |
| Displacement/Output(ml/kw) | 4752/125 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2300 | |
| Maximum Torque(N·m) | 600 | |
| Gearbox | WLY6TS55 6Forward/1Reverse Gear | |
| Tyre | 10.00R20 18PR 6+1 spare tire | |
| Crane | Crane Model | KSQS125-4 |
| Max Lifting Moment(kN.M) | 157 | |
| Max Lifting Capacity(kg) | 6300 | |
| Max Lifting Height(m) | 13.8 | |
| Length of Basic Boom(m) | 11.5 | |
| Max oil flow of hydraulic system(L/min) | 60 | |
| Max pressure of hydraulic system(Mpa) | 23 | |
| Oil tank capacity(L) | 140 | |
| Installation space(mm) | 2130-5210 | |
Precautions for the operation of a straight boom truck-mounted crane:
I. Before operation
- Check the crane for firm connections, no damaged wire rope, normal hydraulic system, and ensure key parts are intact. Also check vehicle brakes and tire pressure. Confirm solid and flat ground.
II. During operation
- Follow procedures, stay focused. Ensure lifted object is firmly bound. Lift smoothly, avoid overloading. Watch for obstacles when extending/retracting boom. Be careful near maximum angles/radii. Observe for abnormalities. Be cautious in windy conditions.
III. After operation
- Retract and fix boom, turn off hydraulic system and park safely. Regularly maintain and train operators.
