FAW
CLW
CLW5180TBC8
Product Description：

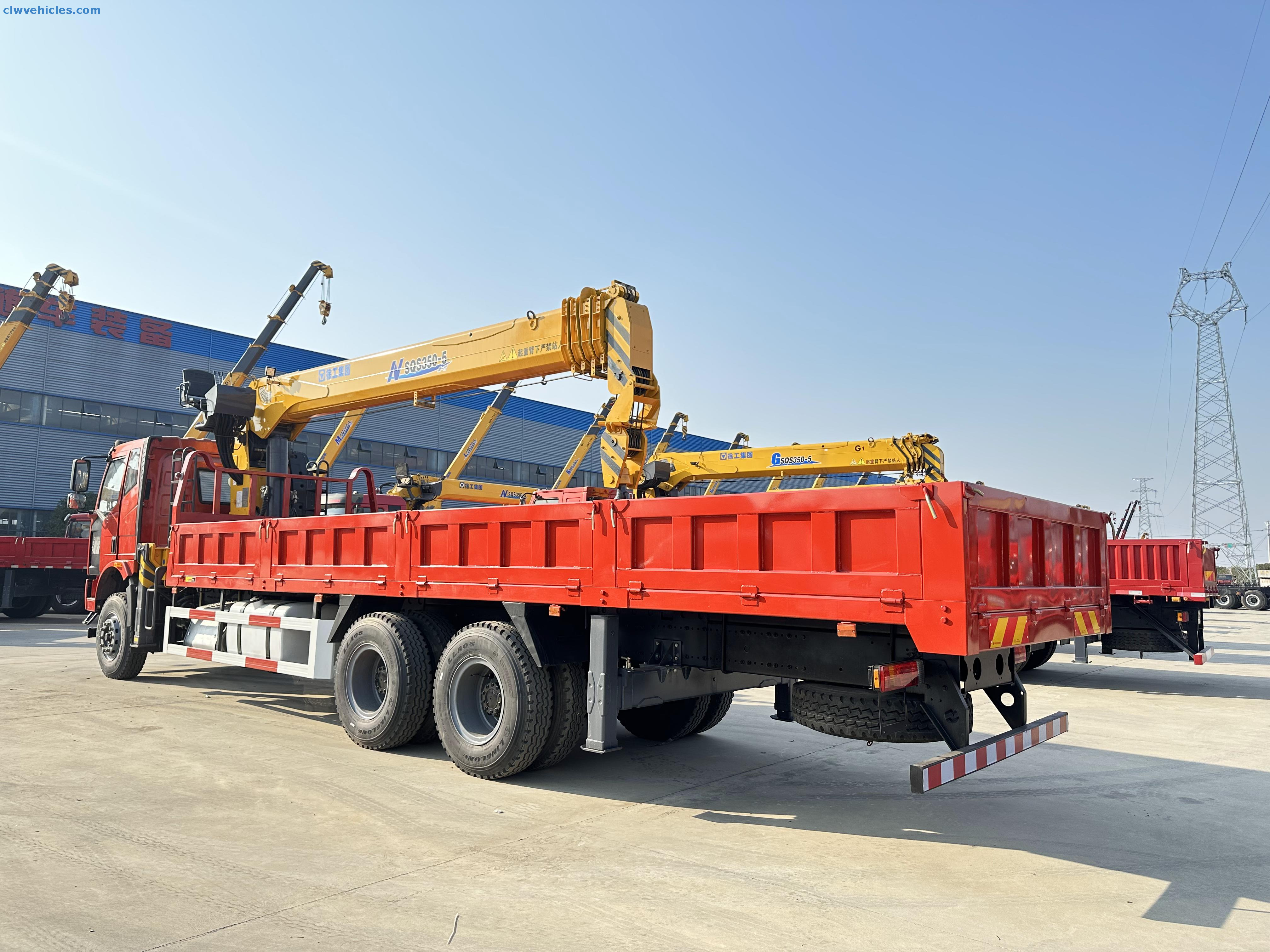

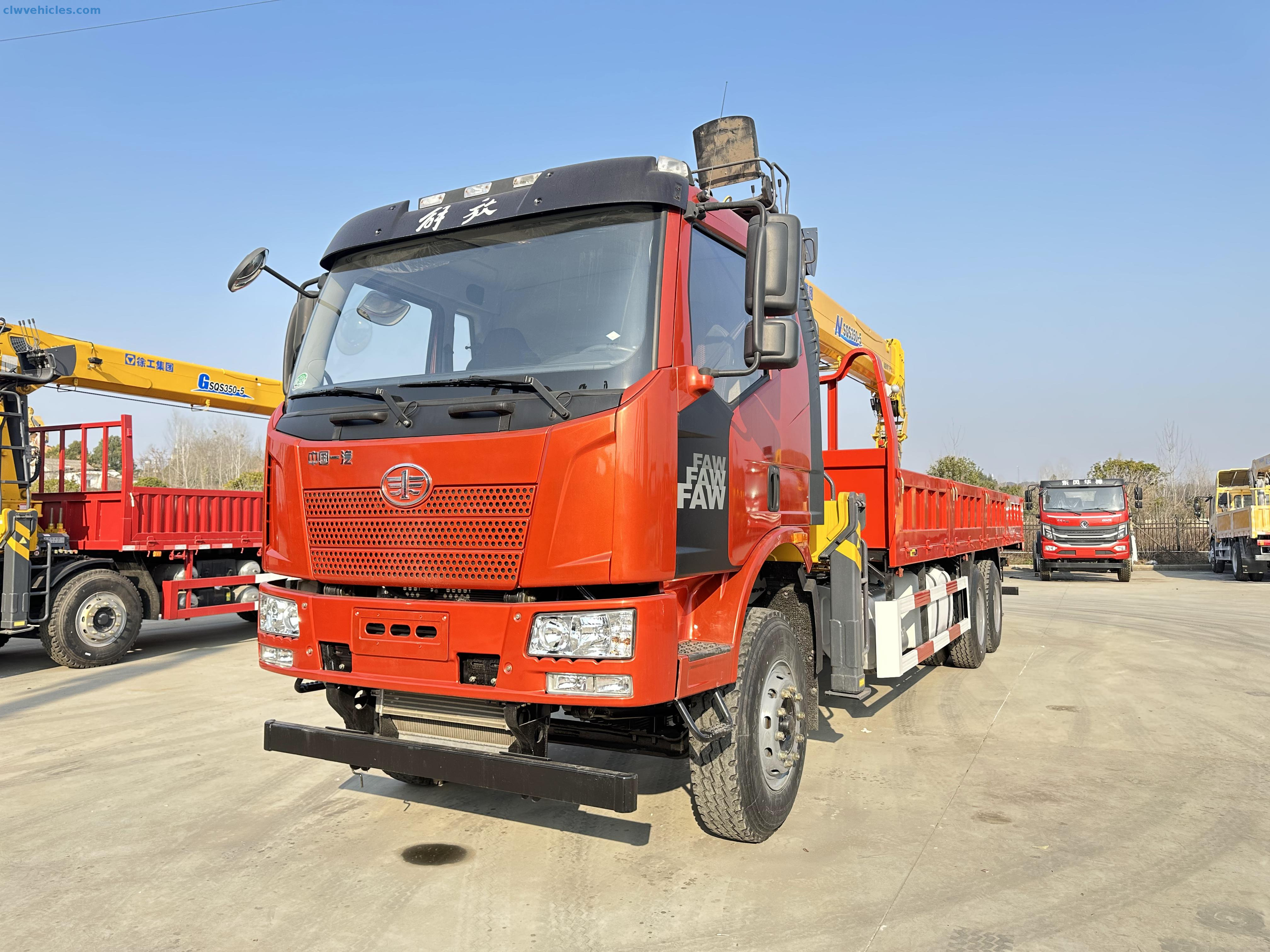

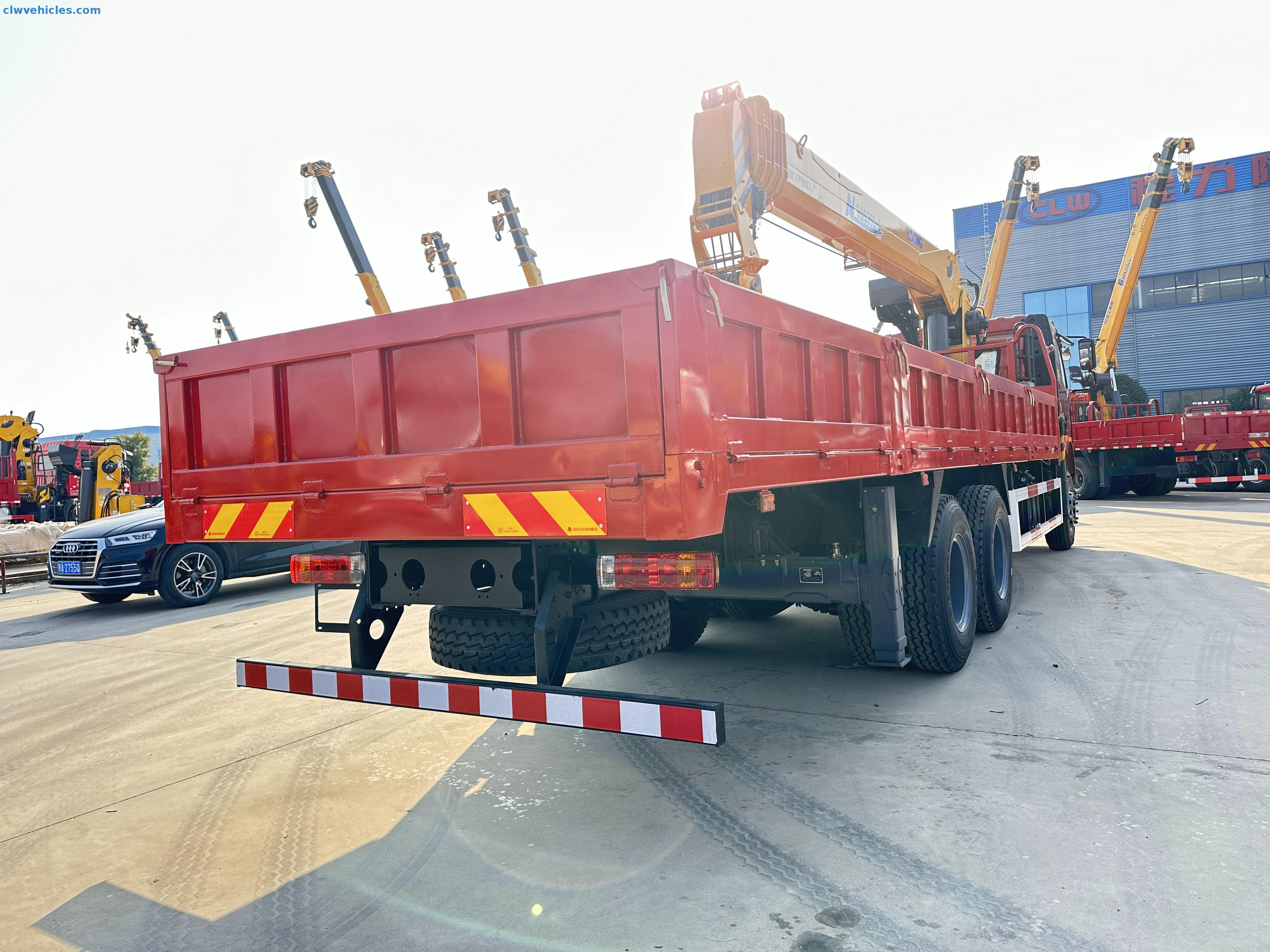

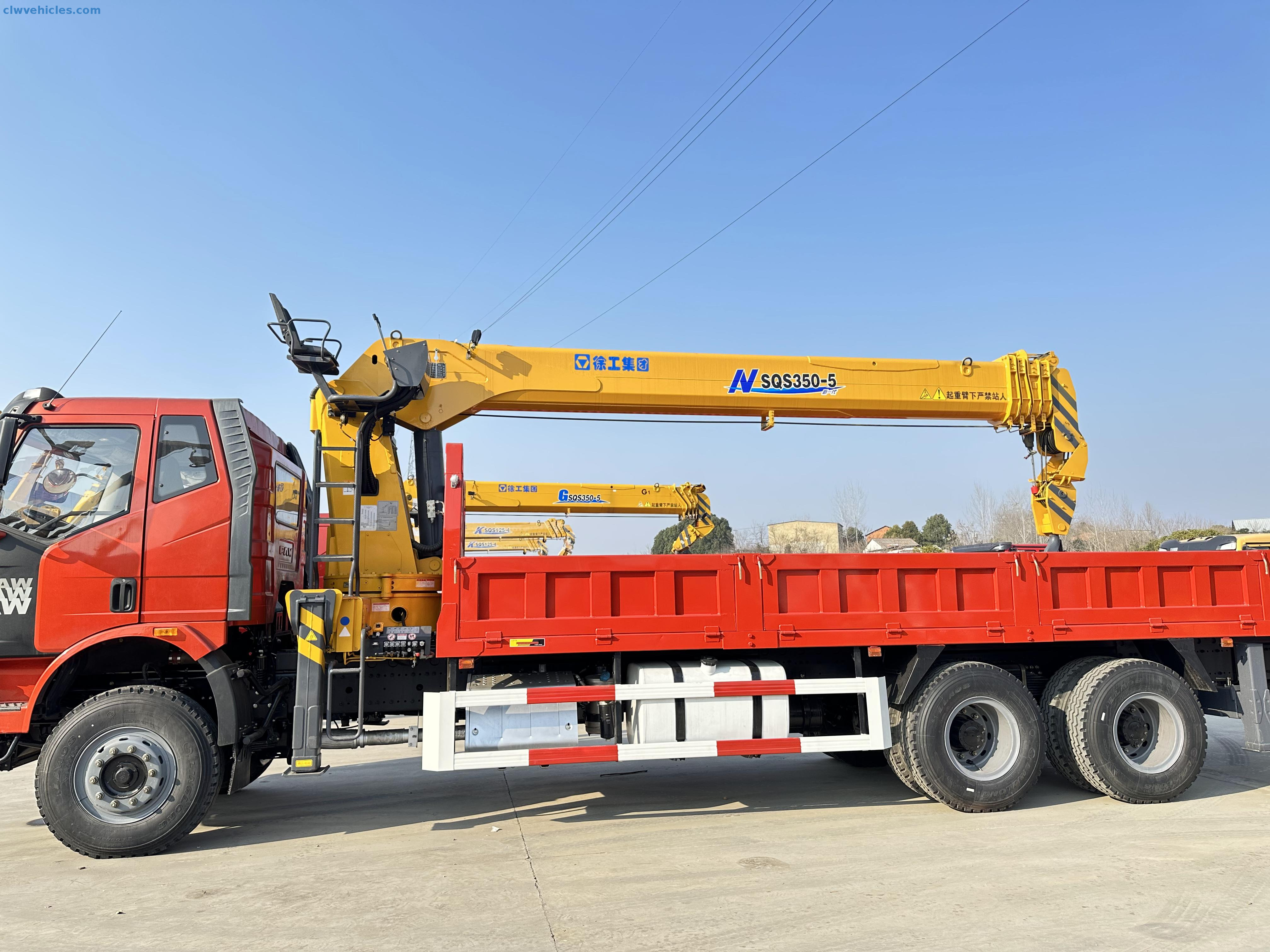

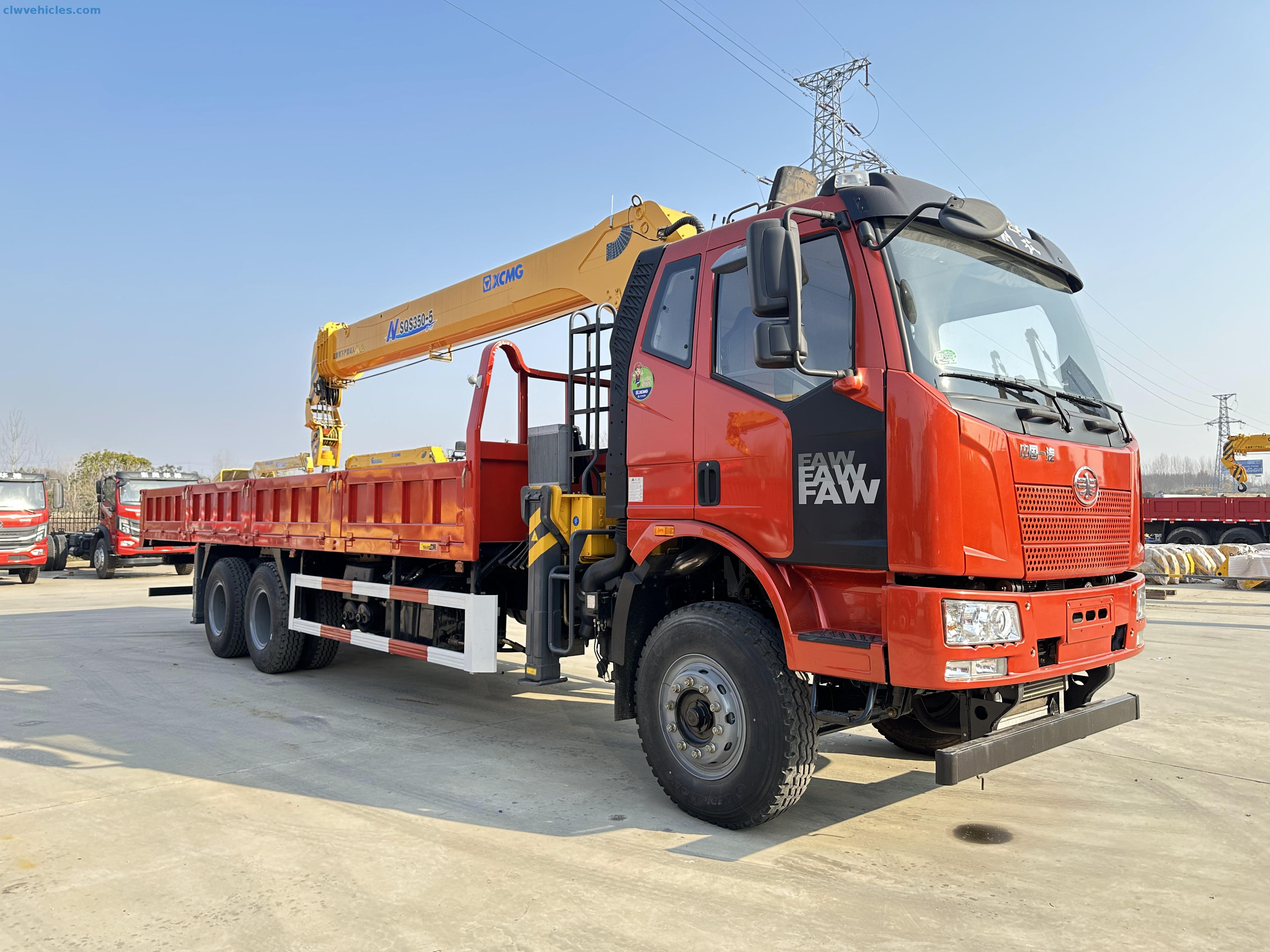

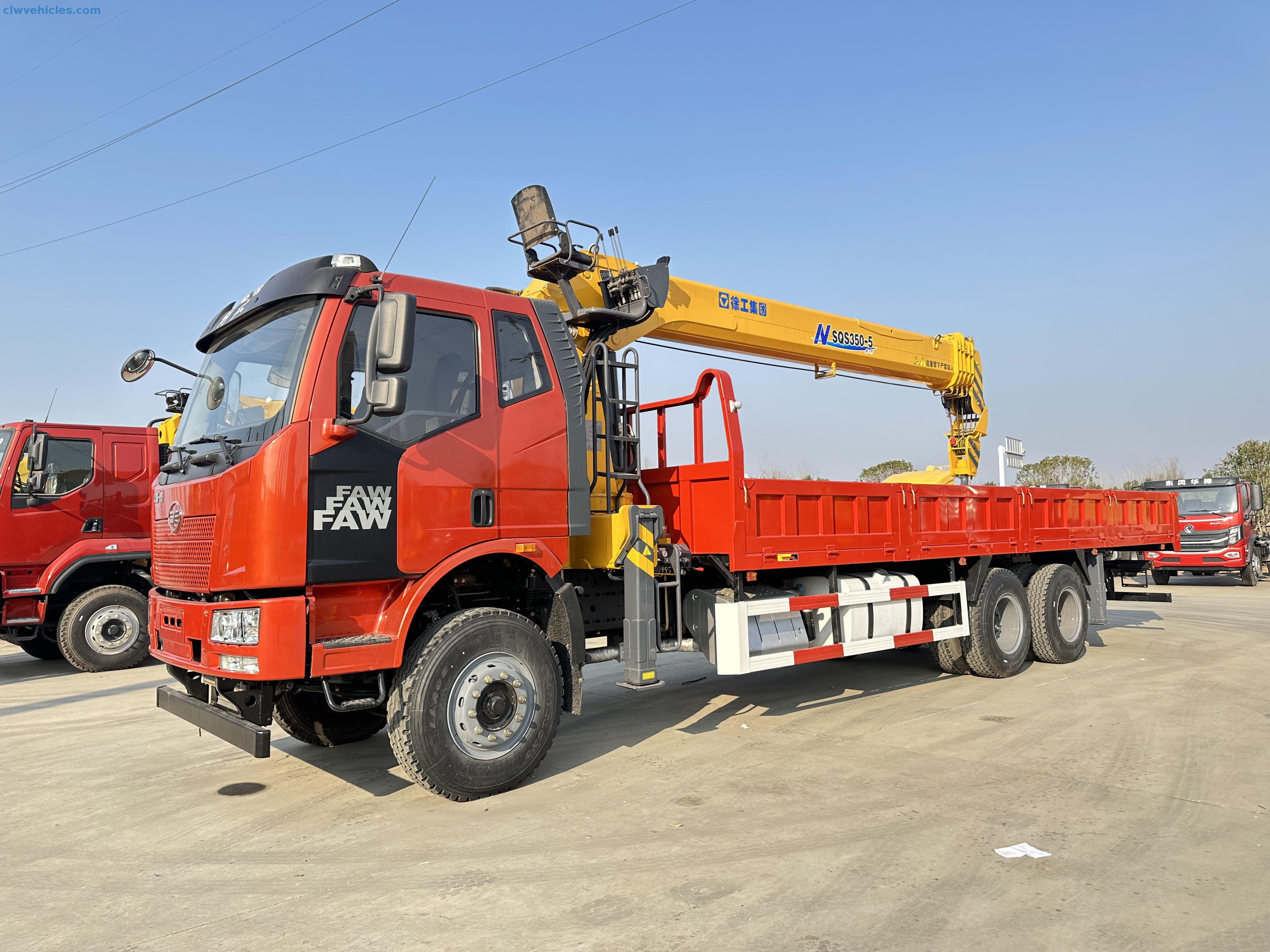

FAW 6×4 Cargo Truck with Telescopic Boom Crane – Haul and Lift in One Package
When you need a reliable truck mounted crane that hauls heavy loads and sets them in place, the FAW 6×4 Cargo Truck Mounted Telescopic Boom Crane from CLW Group is your go-to solution. This Truck-with-Crane combines a sturdy cargo deck with a high-reach boom, giving you the versatility of a Straight Arm Crane Truck without calling in extra equipment.
Imagine rolling up to a jobsite with pipes, pallets, or equipment on board—and then lifting them exactly where you need. From setting steel beams at a construction site to placing transformers at a substation, this clw group crane truck handles:
Mid-size construction and maintenance projects
Utility pole and streetlight installation
Equipment delivery in tight urban or rural spots
Material handling at factories, yards, and warehouses
With its 19 t payload and 9.74m³ cargo deck, it's the ideal FAW crane truck for mixed hauling and lifting duties.
Rugged 6×4 Chassis
Built on a FAW frame with a 4,350+1,350 mm wheelbase, this rig supports an 25,000 kg GVW. Heavy-duty axles (7,000 kg front, 18,000 kg rear) and 11.00R20 tires keep you stable, even when the deck and crane are loaded. A top speed of 89 km/h keeps your fleet moving efficiently.
Powerful CA6DL2-35E3F Engine
The 8.6 L diesel engine produces 261 kW (350 hp) and 1 500 N·m of torque at 2 100 rpm, meeting Euro 3 standards. You'll have the low-end grunt to climb steep grades fully loaded and power the crane's hydraulics without straining.
Smooth FAST 8-Speed Gearbox
With 8 forward and 2 reverse gears, this transmission offers the right ratio for site crawling or highway cruising. Paired with power steering and air brakes, it delivers predictable handling and safe stops.
14 t Lifting Capacity
The XCMG truck crane-style boom delivers a 360 kN·m lifting moment and safely handles up to 14,000 kg at its base.
Long-Reach Performance
A 19.6 m basic boom extends to 22.3 m, giving you a wide working radius for placing loads over walls or into upper floors.
Responsive Hydraulics
Dual pumps (63 + 50 L/min at 28 MPa) draw from a 270 L oil reservoir, delivering smooth, precise movements. Installation space of just 1,250 mm means the crane tucks neatly behind the cab, keeping overall length manageable.
Key Advantages
All-In-One Efficiency – Haul cargo and perform heavy lifts with one Truck-Mounted Crane.
Site Agility – Six-wheel drive and compact footprint let you access tight or uneven terrains.
Trusted Reliability – FAW chassis paired with XCMG-grade crane components ensures uptime.
Fast Setup – Quick-deploy outriggers and intuitive controls get you lifting in moments.
For contractors, rental fleets, or service teams looking for a true truck with crane, the FAW 6×4 Cargo Truck Mounted Telescopic Boom Crane from CLW Group brings unmatched versatility and productivity to every job.
Main Technical Parameters:
| Vehicle Description | Brand | CLW Goup |
| GVW(kg) | 25000 | |
| Payload Weight(kg) | 19000 | |
| Overall Dimension(mm) | 10700*2550*3800 | |
| Wheelbase(mm) | 4350+1350 | |
| Front/Rear Wheel Track(mm) | 1928/1878/1878 | |
| Axle Load(kg) | 7000/18000 | |
| Top Speed(km/h) | 89 | |
| Cargo Box Size(mm) | 7200*2460*550 | |
| Chassis Brand | FAW | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | CA6DL2-35E3F |
| HP | 350 | |
| Emission Standard | Eu 3 | |
| Displacement/Output(ml/kw) | 8570/261 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2100 | |
| Maximum Torque(N·m) | 1500 | |
| Gearbox | FAST Brand； 8Forward/2Reverse Gear | |
| Tyre | 11.00R20 18PR；10+1 spare tire | |
| Crane | Crane Model | GSQS350-5 |
| Max Lifting Moment(kN.M) | 360 | |
| Max Lifting Capacity(kg) | 14000 | |
| Max Lifting Height(m) | 22.3 | |
| Length of Basic Boom(m) | 19.6 | |
| Max oil flow of hydraulic system(L/min) | 63+50 | |
| Max pressure of hydraulic system(Mpa) | 28 | |
| Oil tank capacity(L) | 270 | |
| Installation space(mm) | 1250 | |
| Dead Weight(kg) | 5723 | |
Precautions for the operation of a straight boom truck-mounted crane:
I. Before operation
- Check the crane for firm connections, no damaged wire rope, normal hydraulic system, and ensure key parts are intact. Also check vehicle brakes and tire pressure. Confirm solid and flat ground.
II. During operation
- Follow procedures, stay focused. Ensure lifted object is firmly bound. Lift smoothly, avoid overloading. Watch for obstacles when extending/retracting boom. Be careful near maximum angles/radii. Observe for abnormalities. Be cautious in windy conditions.
III. After operation
- Retract and fix boom, turn off hydraulic system and park safely. Regularly maintain and train operators.
