HOWO
CLW
CLW5180TBC6
Product Description：

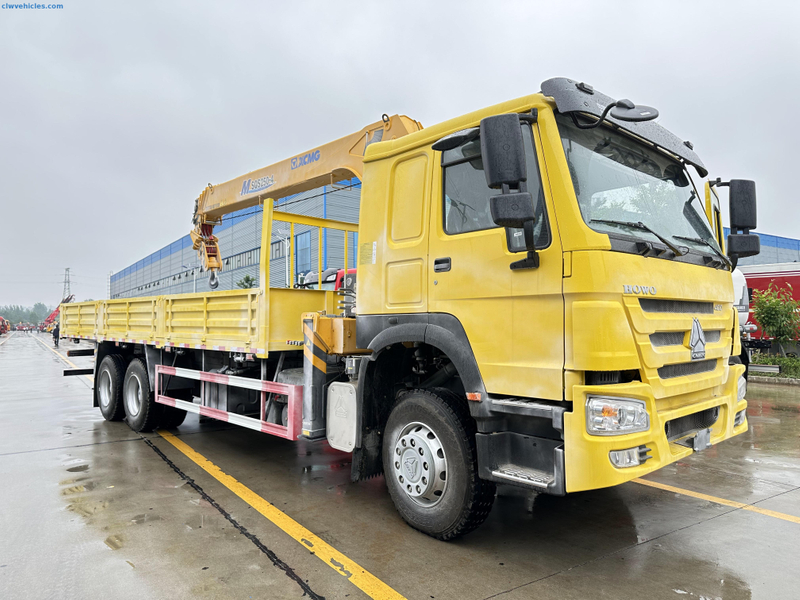

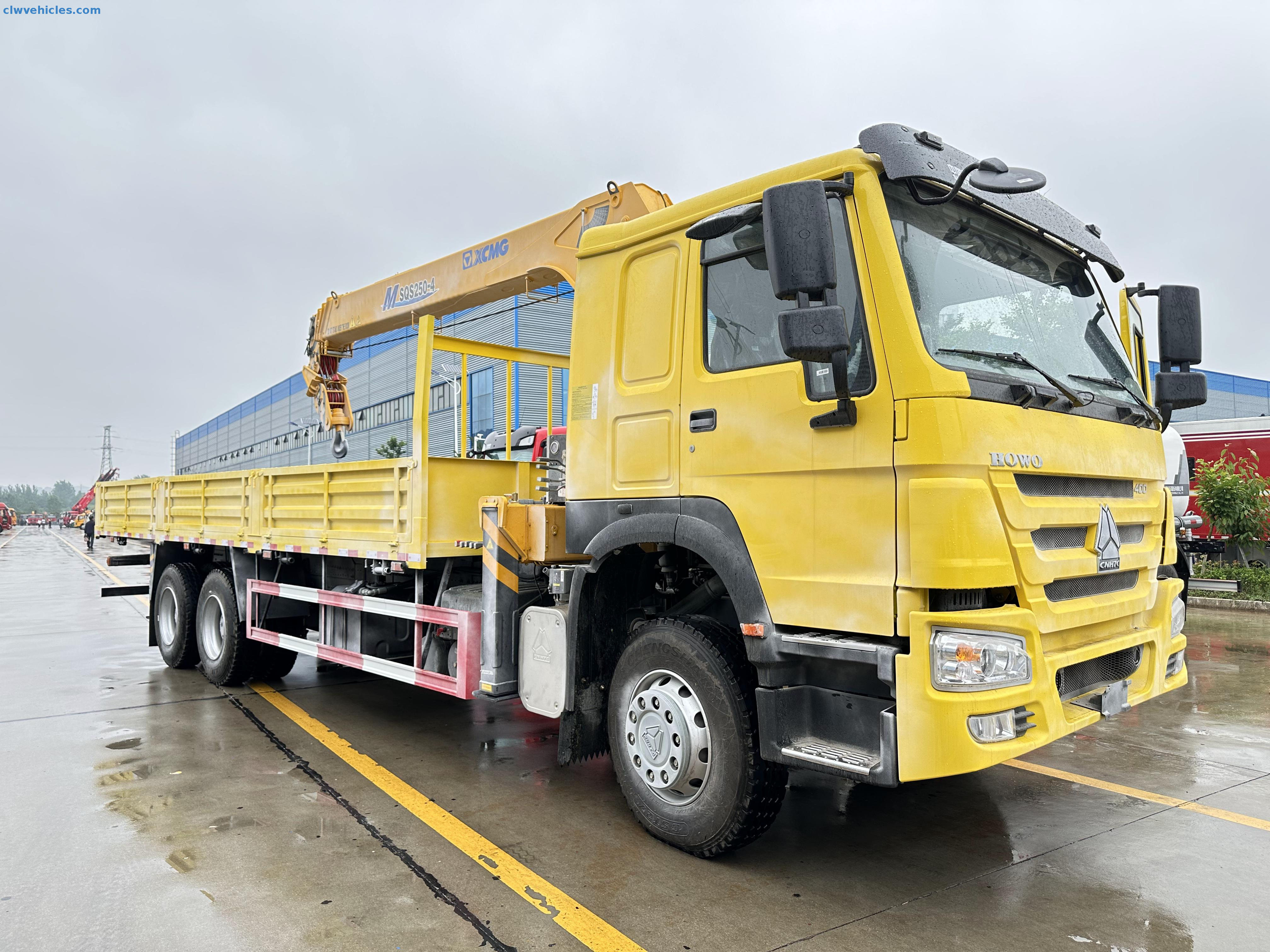

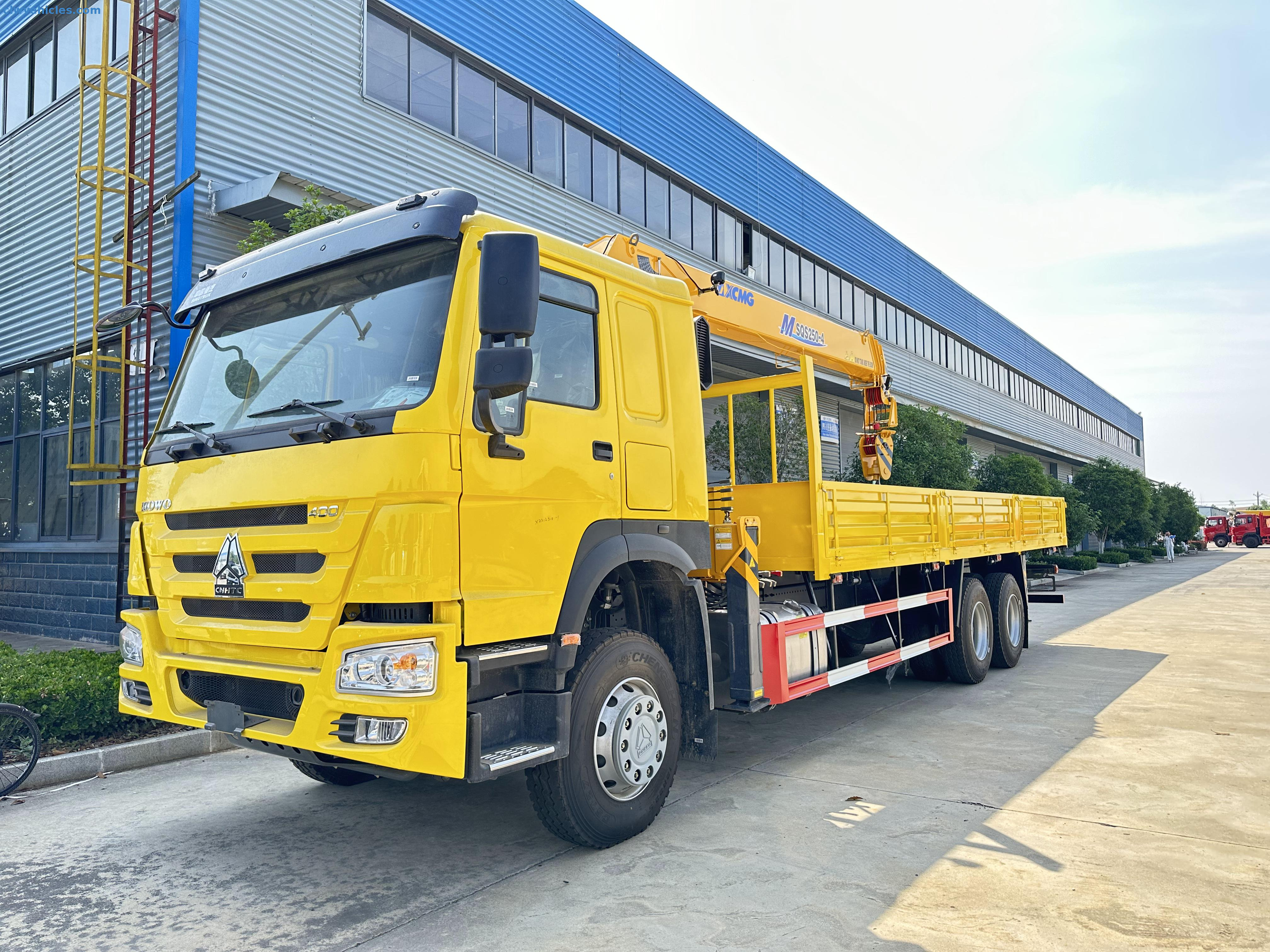

HOWO 6×4 Cargo Truck with Telescopic Boom Crane – Your All‑In‑One Lifting & Hauling Solution
When your job calls for both heavy cargo and serious lifting power, the HOWO 6×4 Cargo Truck mounted telescopic boom crane from CLW Group delivers. Whether you're on a distant construction site, loading machinery at a warehouse, or handling utility pole installations, this HOWO crane truck acts as a versatile truck with crane—reducing equipment needs and boosting your team's productivity.
Picture a single vehicle that hauls building materials by day and sets steel beams by afternoon. This truck‑mounted crane excels at:
Delivering pipes, pallets, and equipment directly to hard‑to‑reach areas
Positioning formwork or trusses on multi‑story buildings
Lifting generators, motors, and light machinery into place
Infrastructure tasks like setting poles or streetlights
With a robust 25‑ton GVW and a 6.3 m cargo deck, it combines the best of a cargo truck and a Straight Arm Crane Truck for maximum on‑site flexibility.
Powerful HOWO Foundation: Built on a 6×4 chassis, this rig carries up to 25 000 kg gross weight with a 7,000 kg front axle and 18,000 kg rear axle. A long 4 575 + 1 400 mm wheelbase and hearty 12.00R20 tires provide stability under load and confidence on uneven terrain.
Turbocharged Diesel Muscle: The WP10H400E62 engine packs 400 HP and 1 900 N·m of torque between 1 200–1 300 rpm, meeting Euro 6 emissions standards. You’ll have plenty of low‑end grunt to haul a full cargo plus power the crane’s hydraulics without bogging down.
Smooth 12‑Speed Gearbox: A FAST‑brand 12 forward and 2 reverse transmission gives you the right ratio for site crawling or highway cruising at up to 89 km/h. Combined with power steering and air brakes, it offers predictable handling and stopping, even when fully loaded.

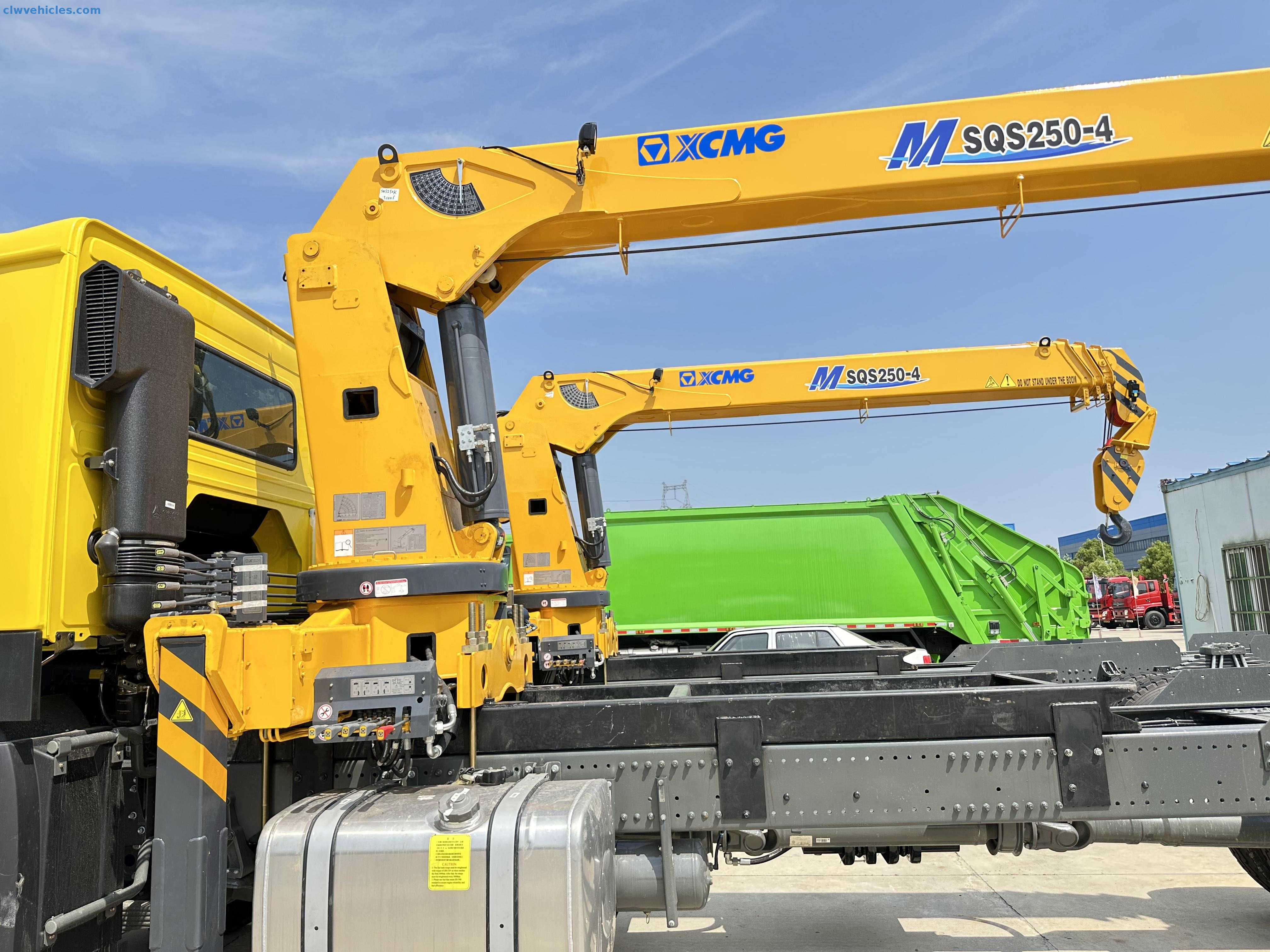

10‑Ton Lifting Capacity: The XCMG‑inspired MSQS250‑4 crane boasts a 250 kN·m lifting moment and can hoist up to 10 000 kg at its base.
Long Reach & Full Rotation: Four telescoping sections extend to 15.5 m, giving you a 14 m working radius and smooth 360° slewing for precise positioning without shuffling the truck.
High‑Flow Hydraulics: Dual 50 L/min pumps push oil at 26 MPa from a 200 L reservoir, delivering fast, responsive control through simple levers. Outriggers deploy quickly for rock‑solid support.
All‑In‑One Efficiency – Replace separate transport and lifting vehicles with one clw group crane truck.
Site Agility – Compact enough to navigate urban sites yet rugged for remote locations.
Robust Performance – A 400 HP HOWO engine plus XCMG‑grade crane components mean reliable power on demand.
Easy Operation – Intuitive controls, quick setup, and full‑rotation boom keep your crew moving through more lifts in less time.
With the HOWO 6×4 Cargo Truck mounted telescopic boom crane, you get a true Truck‑Mounted Crane that hauls, lifts, and delivers—turning every workday into a seamless operation.
Main Technical Parameters:
| Vehicle Description | Brand | CLW Goup |
| GVW(kg) | 25000 | |
| Curb Weight(kg) | 16890 | |
| Overall Dimension(mm) | 9900*2550*3850 | |
| Wheelbase(mm) | 4575+1400 | |
| Front/Rear Overhang(mm) | 1430/1500 | |
| Axle Load(kg) | 7000/18000 | |
| Top Speed(km/h) | 89 | |

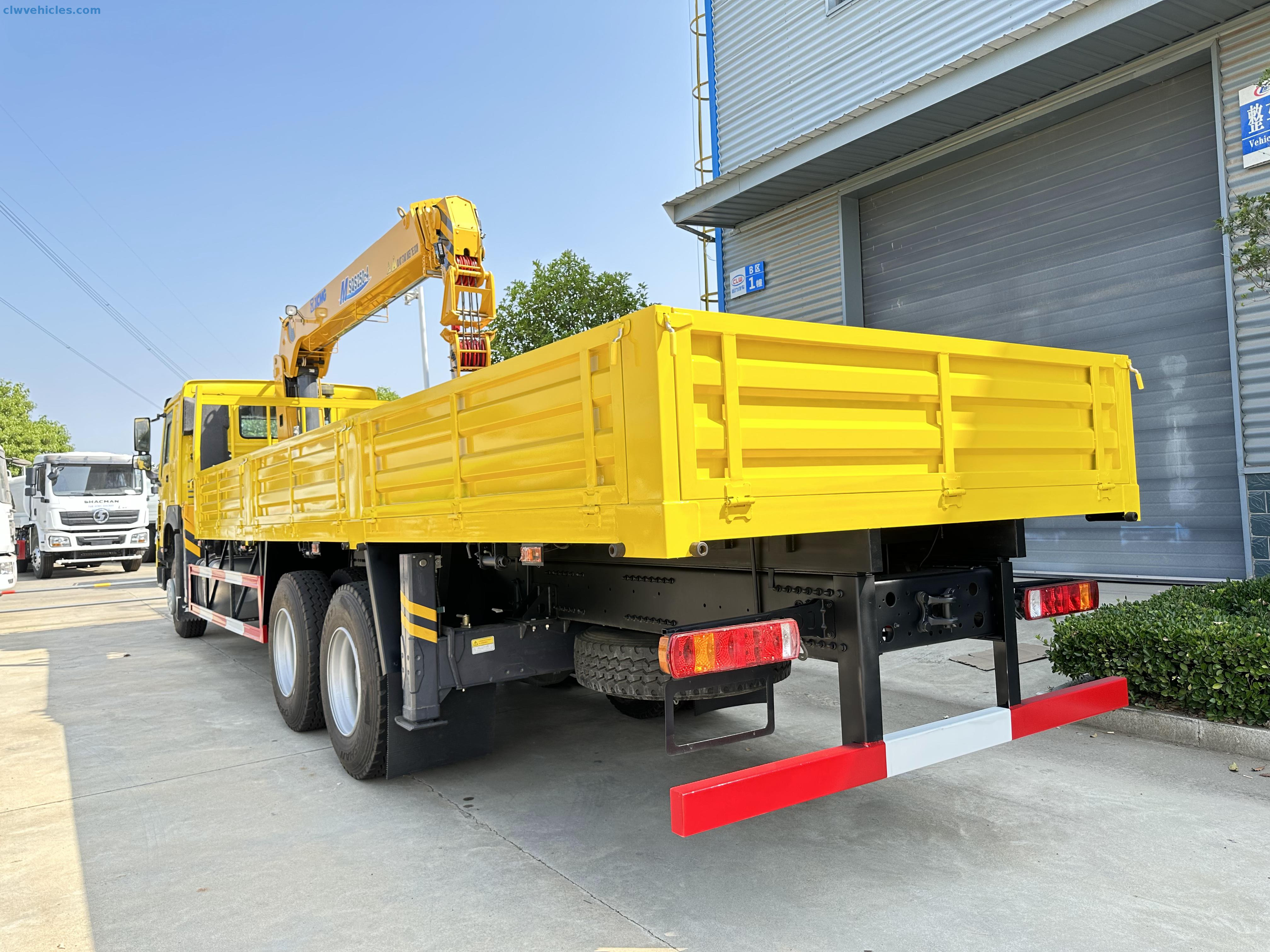

| Cargo Box Size(mm) | 6300*2450*600 | |
| Chassis Brand | HOWO | |

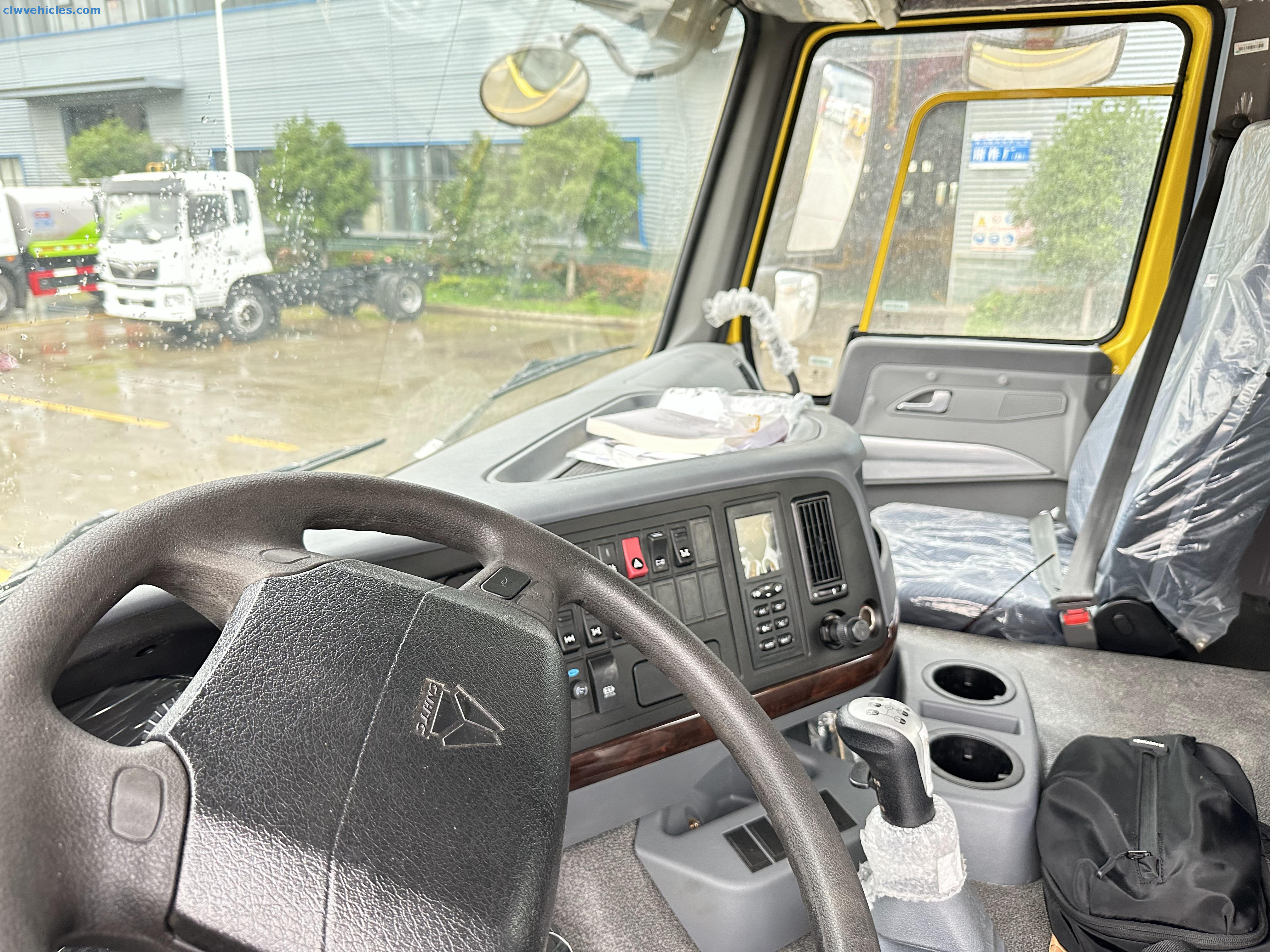

| Cabin | Single,LHD,with A/C | |
| Engine | Model | WP10H400E62 |
| HP | 400 | |
| Emission Standard | Eu 6 | |
| Displacement/Output(ml/kw) | 9500/294 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 1900 | |
| Maximum Torque(N·m) | 1900 | |
| Maximum Torque Speed(rpm) | 1200-1300 | |
| Gearbox | FAST Brand 12Forward/2Reverse Gear | |
| Tyre | 12.00R20 16PR | |
| Crane | Crane Model | MSQS250-4 |
| Max Lifting Moment(kN.M) | 250 | |
| Max Lifting Capacity(kg) | 10000 | |
| Max Lifting Height(m) | 15.5 | |
| Max Working Radius(m) | 14 | |
| Slewing Angle( ° ) | 360 Full rotation | |
| Max oil flow of hydraulic system(L/min) | 50+50 | |
| Max pressure of hydraulic system(Mpa) | 26 | |
| Oil tank capacity(L) | 200 | |
| Installation space(mm) | 2480-6070 | |
Precautions for the operation of a straight boom truck-mounted crane:
I. Before operation
- Check the crane for firm connections, no damaged wire rope, normal hydraulic system, and ensure key parts are intact. Also check vehicle brakes and tire pressure. Confirm solid and flat ground.
II. During operation
- Follow procedures, stay focused. Ensure lifted object is firmly bound. Lift smoothly, avoid overloading. Watch for obstacles when extending/retracting boom. Be careful near maximum angles/radii. Observe for abnormalities. Be cautious in windy conditions.
III. After operation
- Retract and fix boom, turn off hydraulic system and park safely. Regularly maintain and train operators.
