HOWO
CLW
CLW5250TBC3

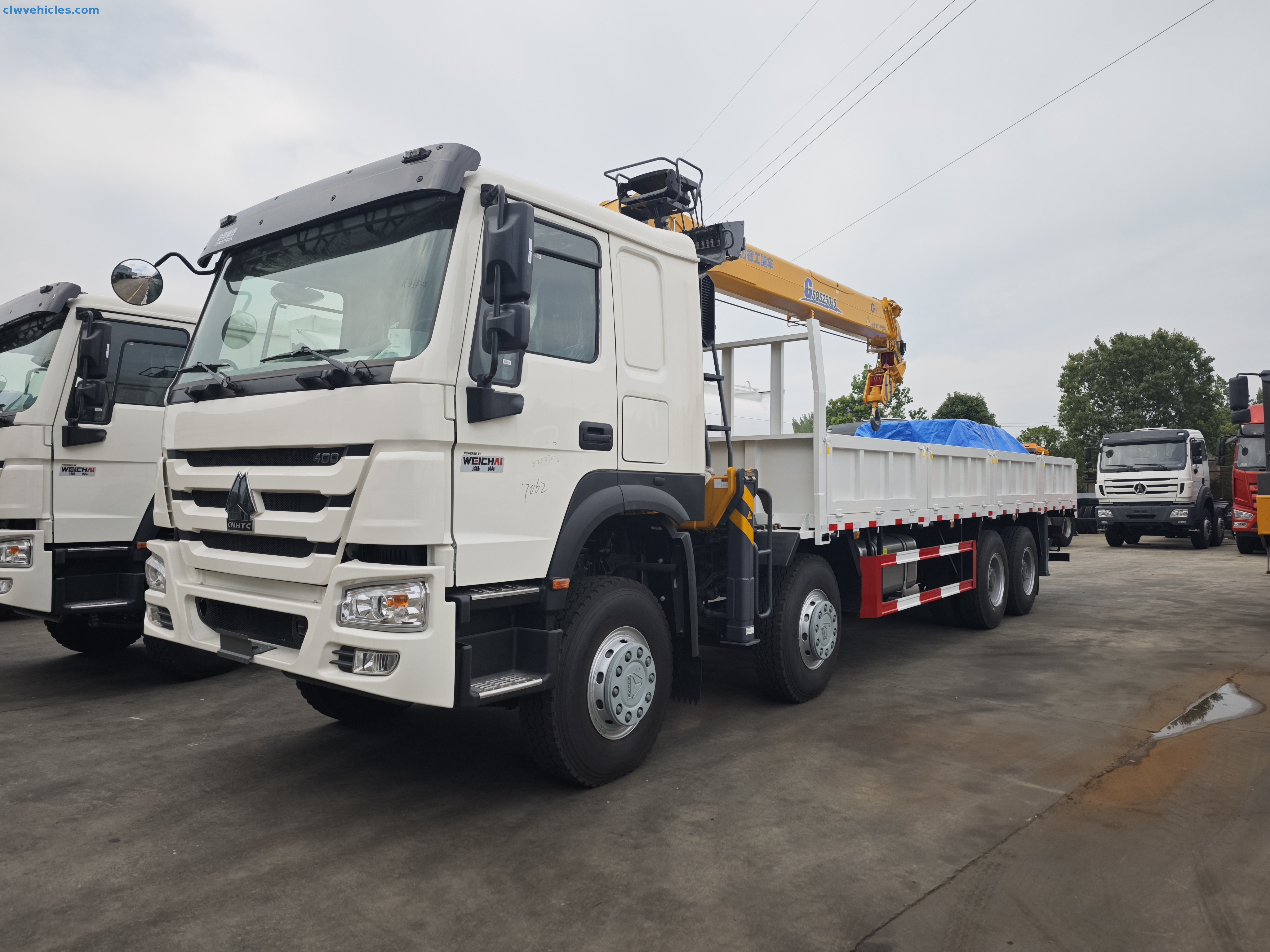

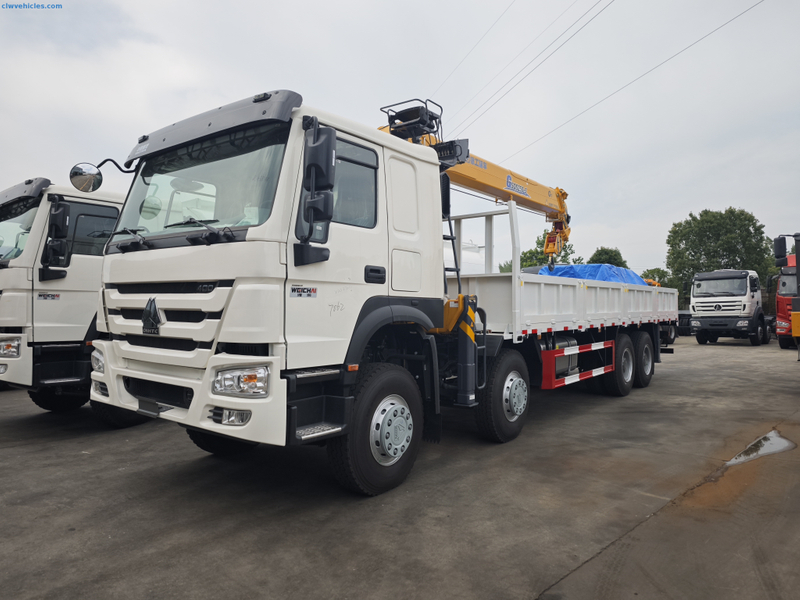

The CLW Group HOWO 8×4 Truck Mounted Crane is built for customers who need serious lifting capacity, long working hours, and reliable performance on both urban and off-road job sites. With a 11-ton straight boom crane, long outreach, and a durable HOWO chassis, this model is the ideal solution for construction, power utility repair, logistics handling, municipal services, and material transport.
And most importantly—every part of the truck can be customized.
You can choose:
Truck color
Cargo box dimensions
Upper-body volume & material
Straight boom crane (6t / 8t / 10t / 12t / 14t / 16t optional)
Alternative chassis brands (Dongfeng, Shacman, FAW, Isuzu, JAC, etc.)
CLW Group also has successful batch export experience to South American countries and African regions, proving the truck's reliability under tropical, desert, plateau, and tough working environments.

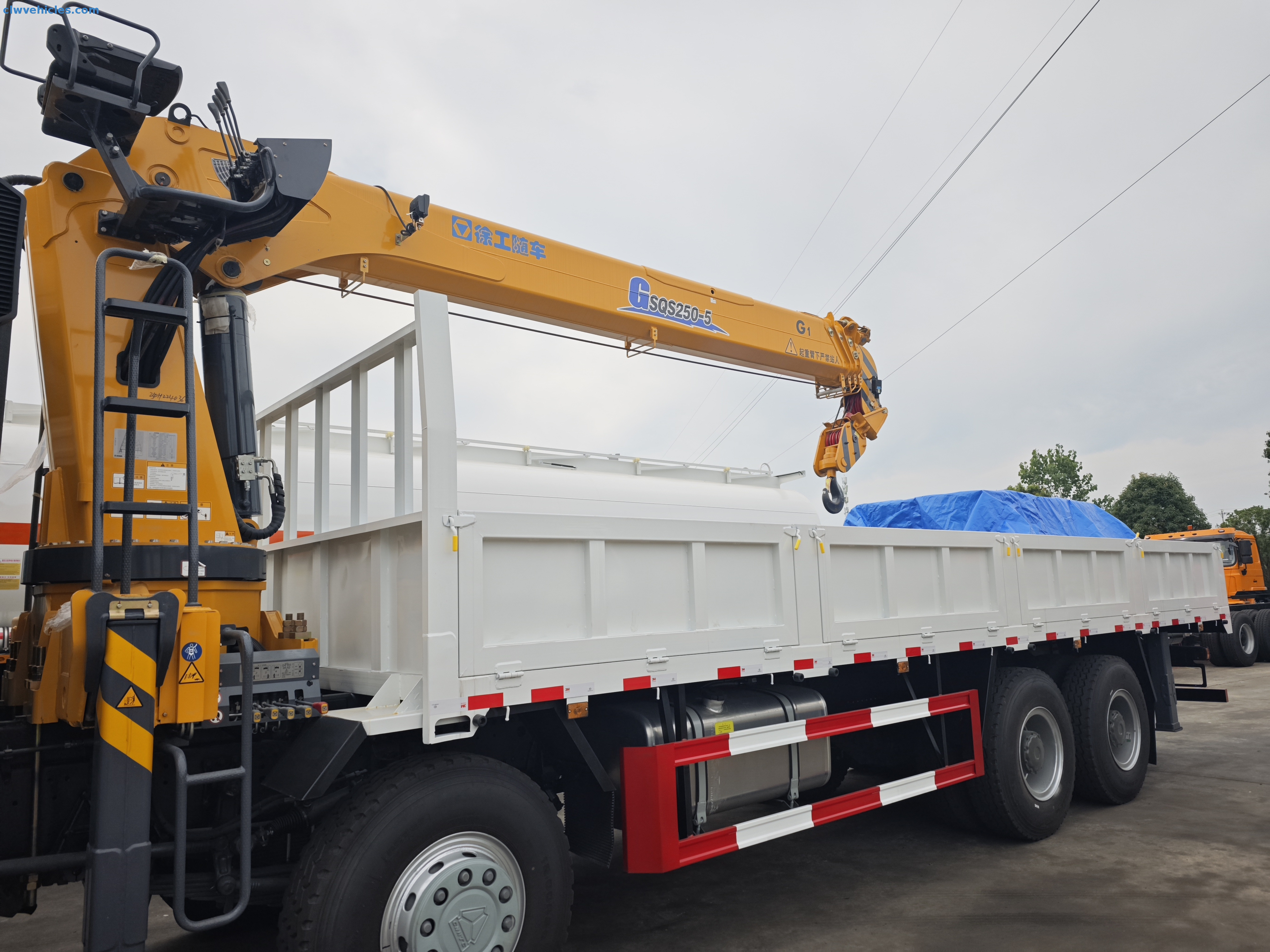

This 11-ton straight arm crane features:
Max lifting capacity: 11,000 kg
Max outreach: 18.6 meters
360° continuous slewing

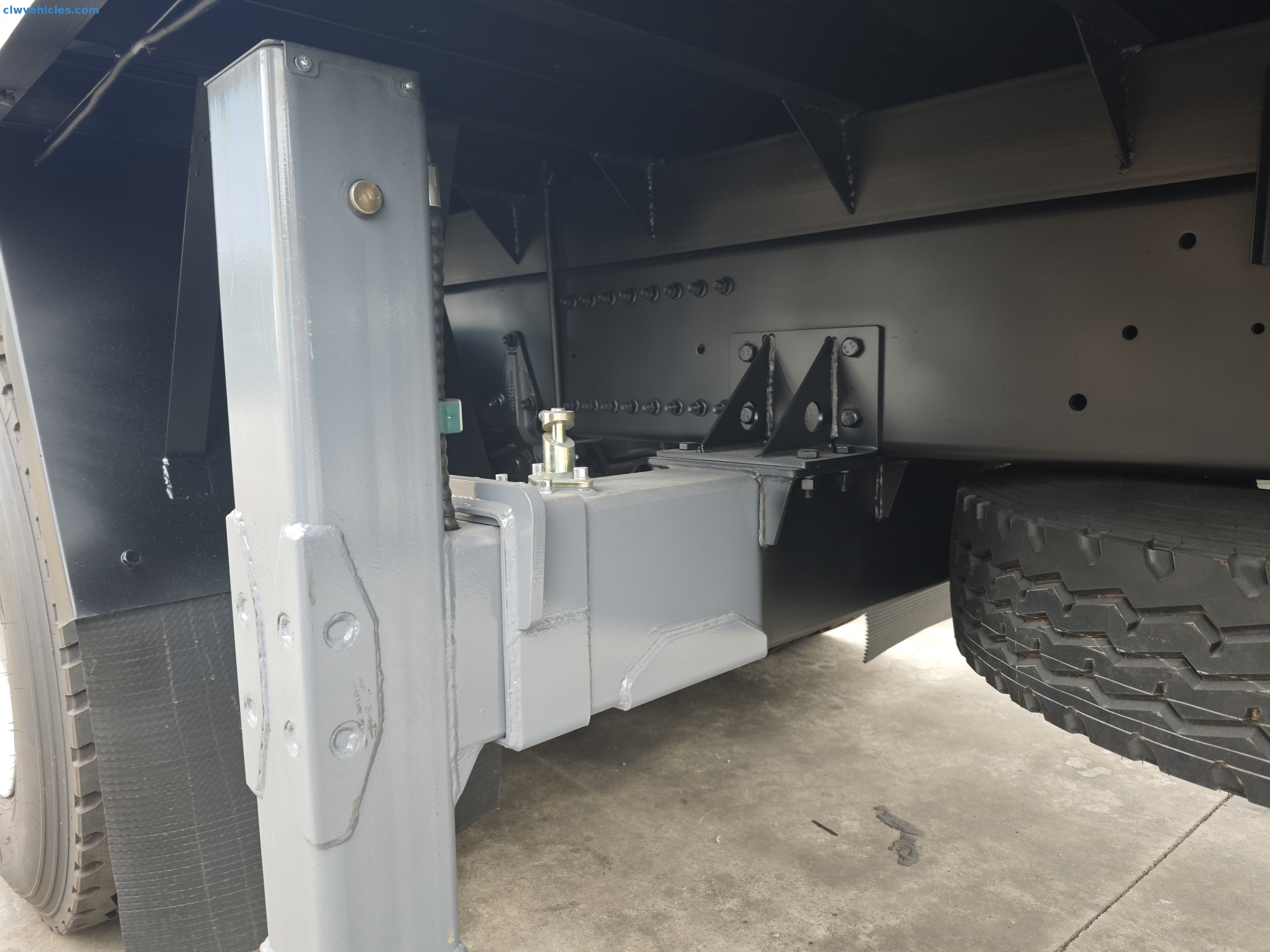

Heavy-duty stabilizers for safe operation
Fast, smooth, and stable hydraulic movement

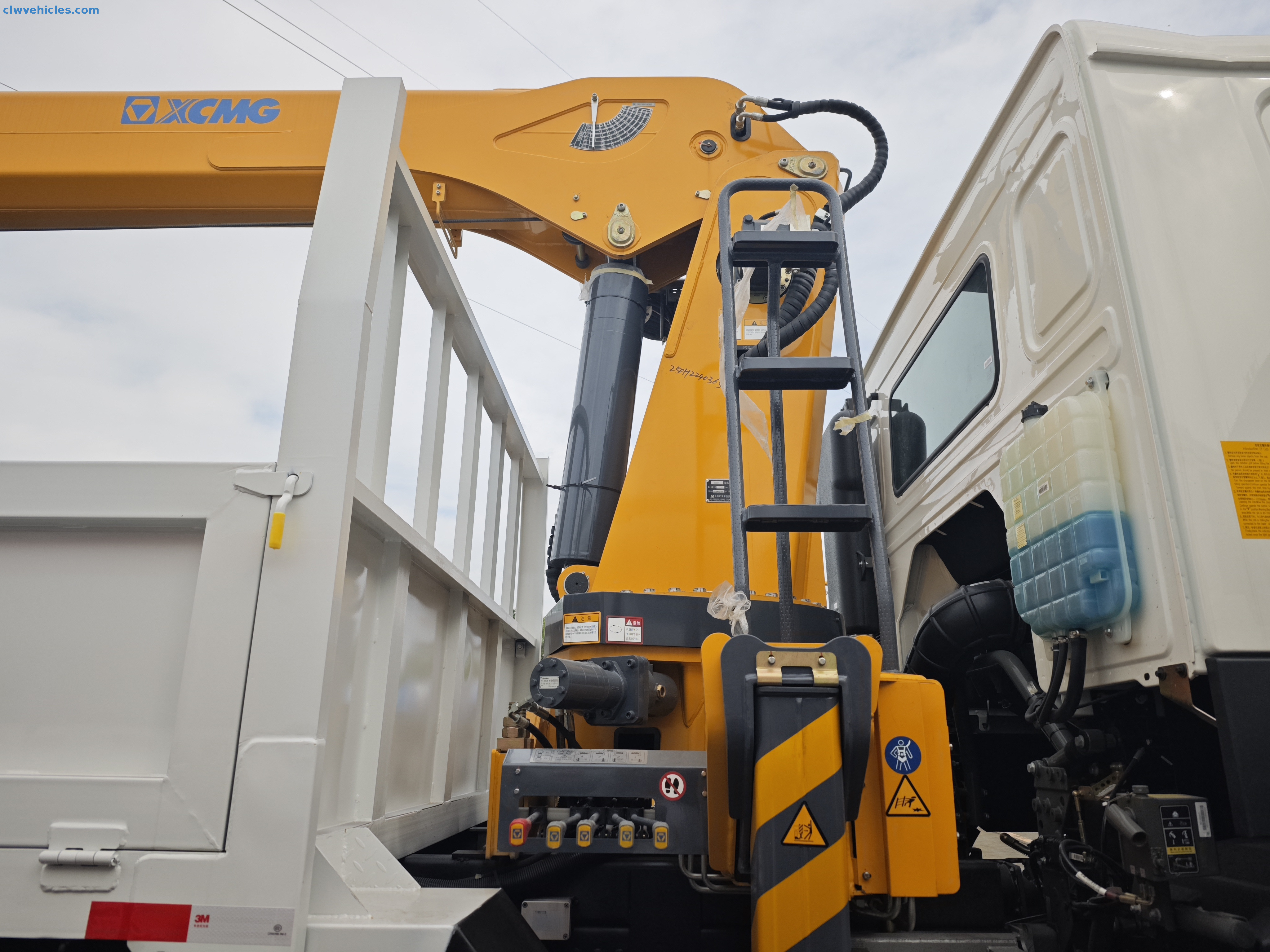

The GSQS250-5 crane is known for:
Strong telescopic sections
High structural rigidity
Efficient hydraulic flow
Easy maintenance
Safe lifting performance
Whether it's steel bars, concrete pipes, machinery equipment, or municipal utilities—this crane handles the job with precision and strength.
The HOWO 8×4 chassis ensures durability and long service life, even under heavy load operation.
Engine: WP12.400E32
Power: 400 HP (294 kW)
Torque: 1780 Nm
Transmission: FAST 12-speed manual
Brake: Full air brake system
Steering: Power steering
GVW: 31,000 kg
Reliable 315/80R22.5 tires
Stable multi-axle design
Excellent for mountain, mining, port, and rough road environments.
Choose your crane tonnage (6–16 tons), truck brand, color, cargo box size, and upper-body material.
Successfully exported in batches to South America and Africa—harsh terrain, high temperature, long distance transport tested and approved.
Comparable to international brands like XCMG but with better pricing and after-sales support.
Construction & infrastructure
Municipal engineering
Power line maintenance
Factory & warehouse material handling
Logistics & equipment lifting
Road & bridge engineering
Inspect hydraulic system, wire ropes, boom connection.
Check tire pressure & vehicle brakes.
Ensure firm and level ground.
Do not overload.
Ensure stable lifting and smooth boom extension.
Avoid operating in strong winds.
Always check surroundings for obstacles.
Retract and lock boom.
Shut down hydraulic system.
Park safely and perform regular maintenance.
1. Can the crane tonnage be customized?
Yes, 6/8/10/12/14/16-ton cranes are available.
2. Can I choose a different chassis brand?
Yes—HOWO, Dongfeng, FAW, Shacman, Isuzu, JAC, and more.
3. Do you support color customization?
Yes, all colors are available.
4. Do you export this model to other countries?
Yes. This model has been successfully exported in batches to South America and Africa.
5. What's the delivery time?
Usually 15–25 working days depending on configuration.
| Main Technology Parameter | |
| Model Name | CLW Group HOWO 8x4 11ton Crane Truck |
| Driving Type | 8x4 |
| Color | White or based on client's request. |
| Number of Cabs | 3 |
| Weights | |
| GVW(kg) | 31000 |
| Curb Weight(kg) | 19600 |
| Dimensions | |
| Wheelbase(mm) | 1850+4575+1370 |
| Front/Rear Overhang(mm) | 1430/2820 |
| Approach/Departure Angle | 19/10 |
| Overall Dimension(mm) | 12000x2550x3800 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | WP12.400E32 |
| Engine Type | In-line six-cylinder, water-cooled, four-stroke, turbocharged intercooled, direct injection |
| Rated Torque(Nm) | 1780 |
| Max.Output(kw) | 294(400hp) |
| Drive Line | |
| Transmission | FAST Brand; 12 forwards,2 reverse gear |
| Steering | Power steering |
| Brake | Air brake system |
| Axle | |
| Axle | 7000/13000/13000 |
| Tire Specification | |
| Tire Specification | 315/80R22.5; 12+1spare tire |
| Front Wheel Track(mm) | 2015/2015 |
| Rear Wheel Track(mm) | 1830/1830 |
| Upper Body Configuration | |
| Crane Model | GSQS250-5 |
| Max lifting capacity(kg) | 11000 |
| Max hydaulic outreach(m) | 18.6 |
| Slewing Angle(°) | 360 |
| Stabilizer Spread(mm) | 2480-6070 |
| Max Operating Pressure(MPa) | 26 |
| Recommended Pump Capacity(L/min) | 63+50 |
| Oil Tank Capacity(L) | 200 |
| Dead Weight(kg) | 4400 |
Precautions for the operation of a straight boom truck-mounted crane:
I. Before operation
- Check the crane for firm connections, no damaged wire rope, normal hydraulic system, and ensure key parts are intact. Also check vehicle brakes and tire pressure. Confirm solid and flat ground.
II. During operation
- Follow procedures, stay focused. Ensure lifted object is firmly bound. Lift smoothly, avoid overloading. Watch for obstacles when extending/retracting boom. Be careful near maximum angles/radii. Observe for abnormalities. Be cautious in windy conditions.
III. After operation
- Retract and fix boom, turn off hydraulic system and park safely. Regularly maintain and train operators.
