ISUZU
CLW
CLW5120TBC7
Product Description：

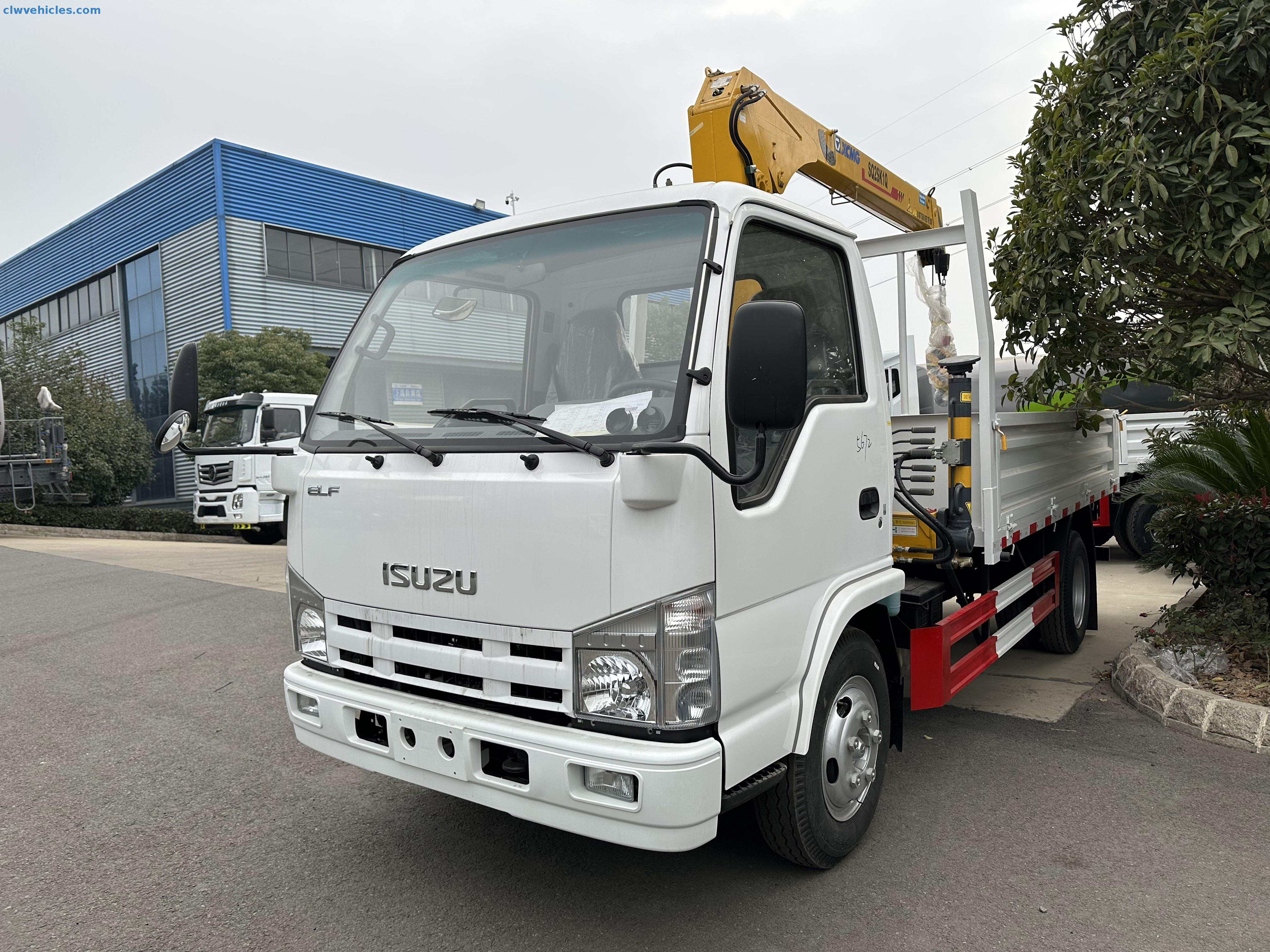

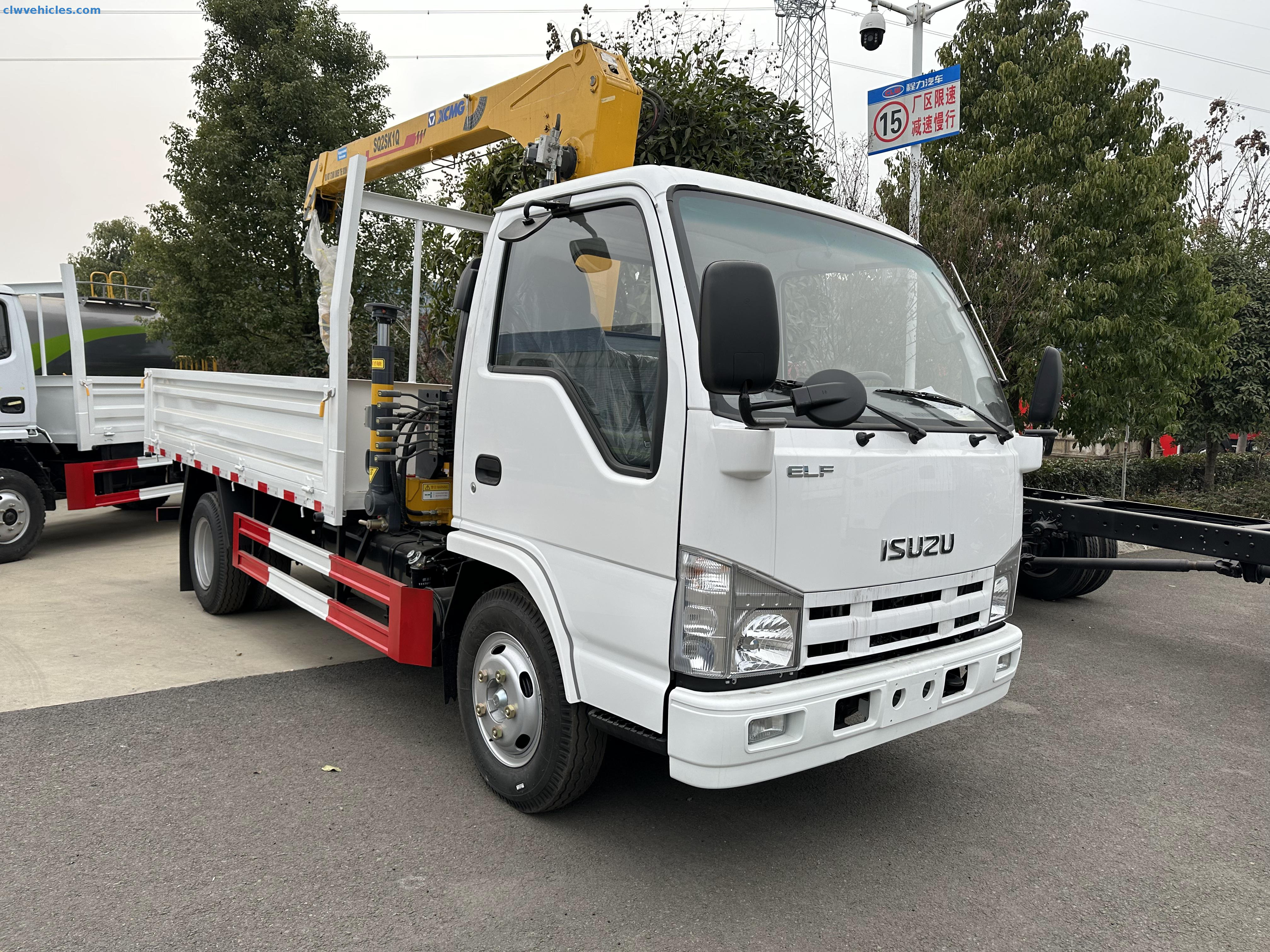

ISUZU ELF 4×2 Truck Mounted Telescopic Boom Crane – Big Lifts from a Compact Platform
When you need a truck mounted crane that's as nimble around town as it is capable on the jobsite, the ISUZU ELF 4×2 Truck Mounted Telescopic Boom Crane by CLW Group is the perfect fit. This Straight Arm Crane Truck brings handy lifting power to tight urban streets, small construction plots, or utility work—no extra trailer needed.
Think of this Truck with Crane as your all‑in‑one helper for light to medium‑duty lifts. Use it to set air‑conditioning units on rooftops, hoist signage, place building materials in narrow alleys, or service streetlights. Its compact size and straight‑arm boom make it a go‑anywhere clw group crane truck, ready to tackle tasks that would tie up a larger rig.
Trusted ISUZU ELF Chassis
With a 7,300 kg GVW and a 3,000 kg payload, this 4×2 chassis carries your crew and crane gear easily. A 3,815 mm wheelbase and 7.00R16LT tires give a stable footprint, while its 89 km/h top speed keeps you moving between sites.
Efficient 4KH1CN6LB Engine
The 3.0 L diesel delivers 120 HP and 290 N·m of torque at 2,000 rpm, meeting Euro 5 emissions standards. You’ll have enough grunt to climb ramps fully loaded and power the crane’s hydraulic system without a hitch.
Smooth ISUZU 5‑Speed Gearbox
The MSD5 manual transmission (5 forward, 1 reverse) offers simple, reliable shifting—perfect for stop‑and‑go urban work or steady highway runs to your next job.

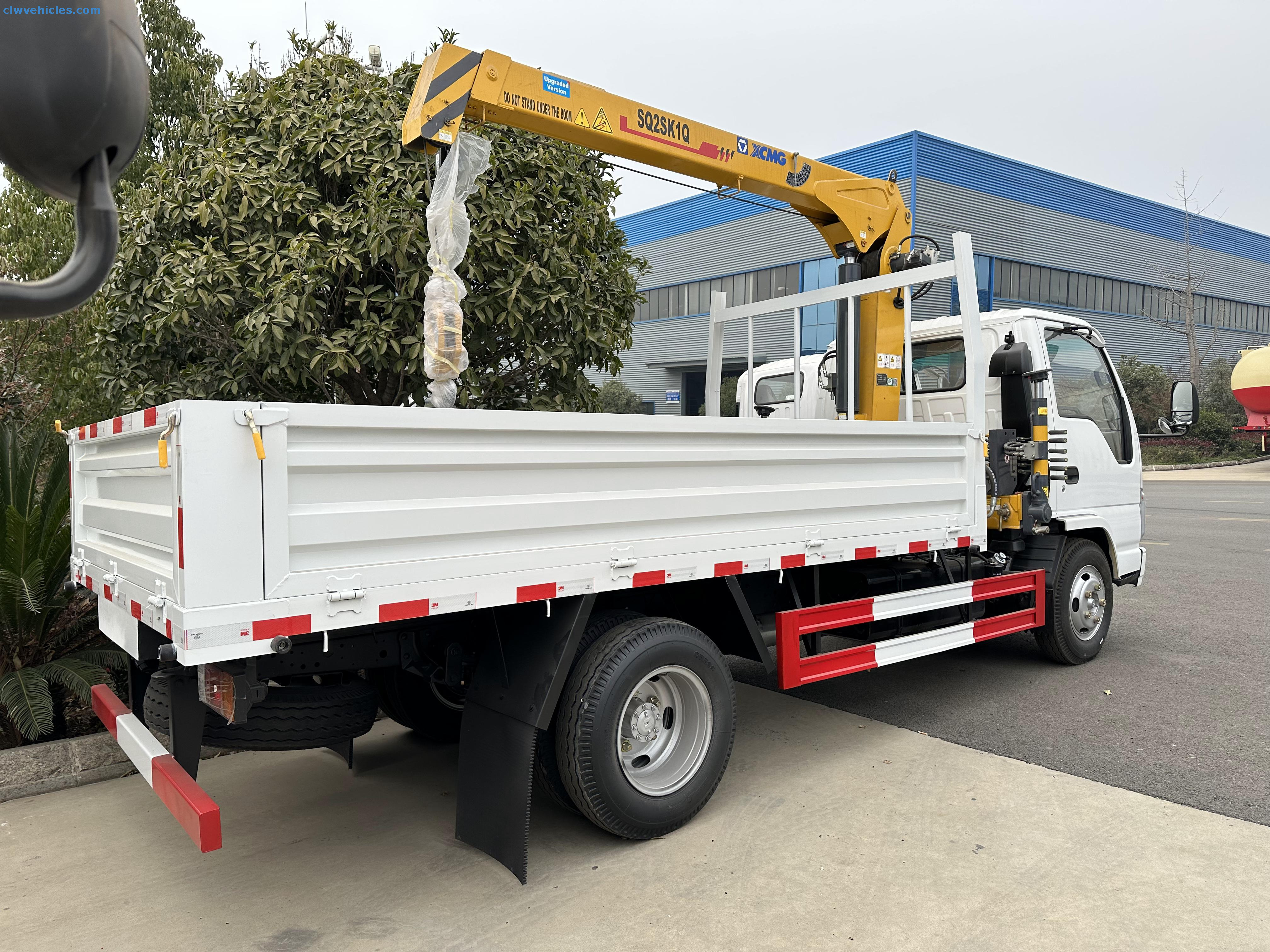

4.2 T·m Lifting Moment
This xcmg truck crane‑style boom can lift up to 2,100 kg at its base, with a maximum height of 7.5 m and a basic boom length of 3.4 m—ideal for placing loads exactly where you want them.

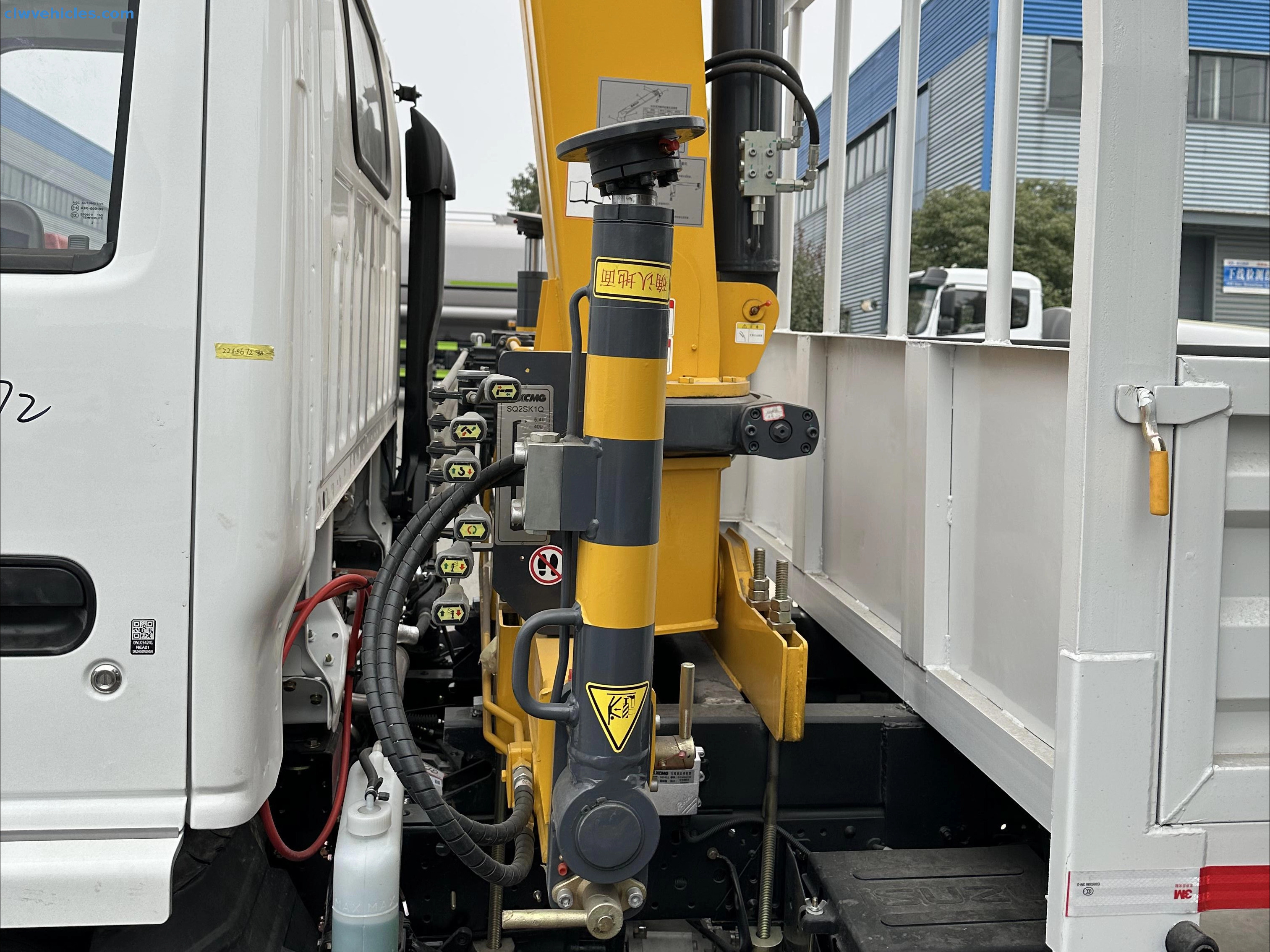

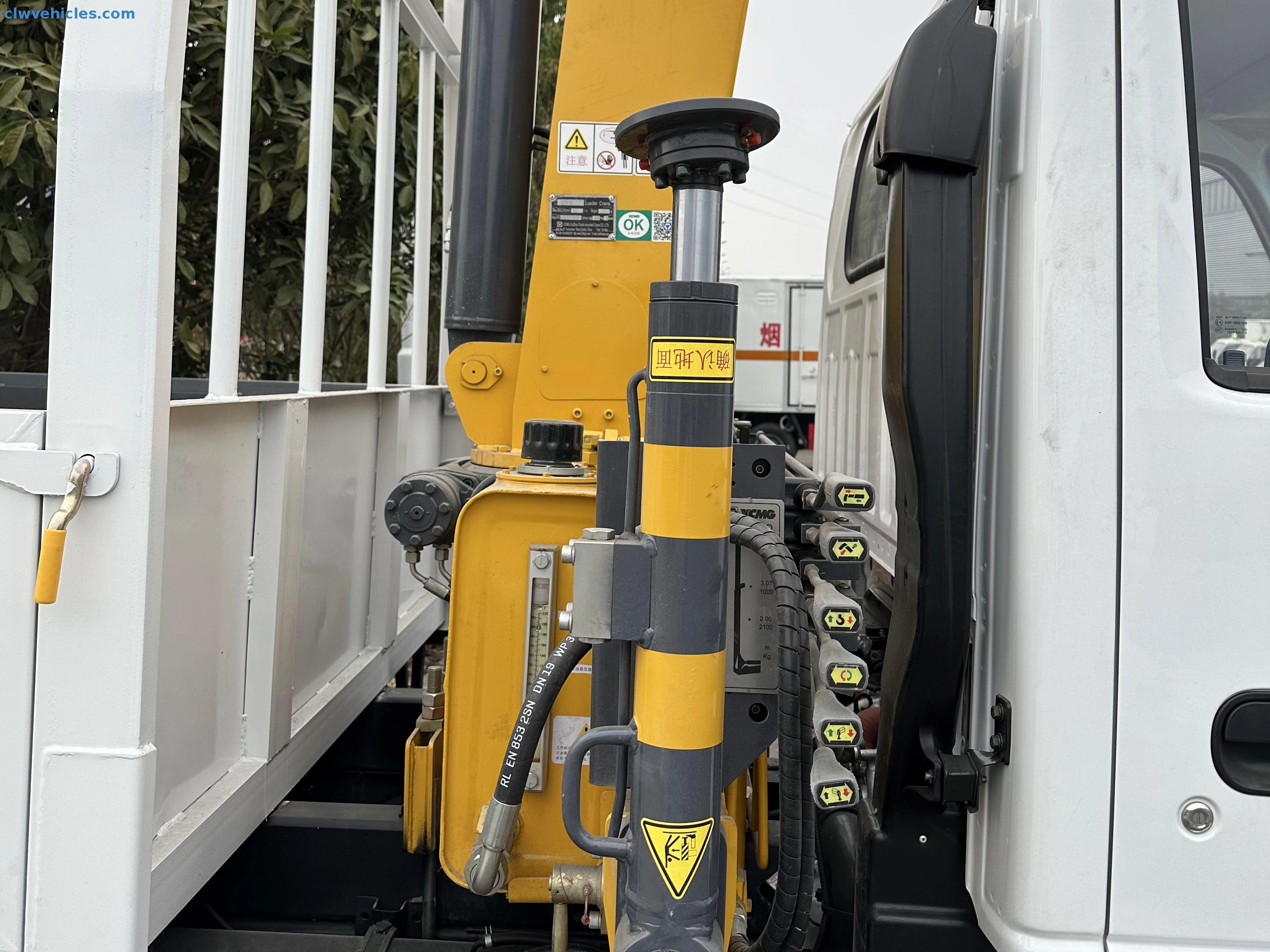

Responsive Hydraulics
An 18 kW hydraulic pump supplies 20 L/min at 16 MPa from a 25 L reservoir, giving you smooth, precise control via lever handles. With minimal installation space, the crane tucks neatly behind the cab, keeping overall length under 7.3 m.
Urban Agility – Compact dimensions make it a true Compact Tipper Truck alternative for city lifting tasks.
All‑In‑One Efficiency – Haul, lift, and position materials without calling in a separate crane.
Proven Reliability – ISUZU drivetrain plus CLW Group's quality build ensures uptime on every job.
Easy Operation – Simple controls and stable chassis let one technician handle the entire lift cycle.
Whether you're a rental fleet, contractor, or utility crew, the ISUZU ELF 4×2 Truck Mounted Telescopic Boom Crane delivers the flexibility and performance you need. It's the smart way to get powered lifting in your back pocket—no extra equipment required.
Main Technical Parameters:
| Vehicle Description | Brand | CLW Goup |
| GVW(kg) | 7300 | |
| Payload Weight(kg) | 3000 | |
| Overall Dimension(mm) | 7300*2400*3100 | |
| Wheelbase(mm) | 3815 | |
| Front/Rear Wheel Track(mm) | 1680/1650 | |
| Axle Load(kg) | 3500/7050 | |
| Top Speed(km/h) | 89 | |
| Cargo Box Size(mm) | 5200*2500*400 | |
| Chassis Brand | ISUZU | |

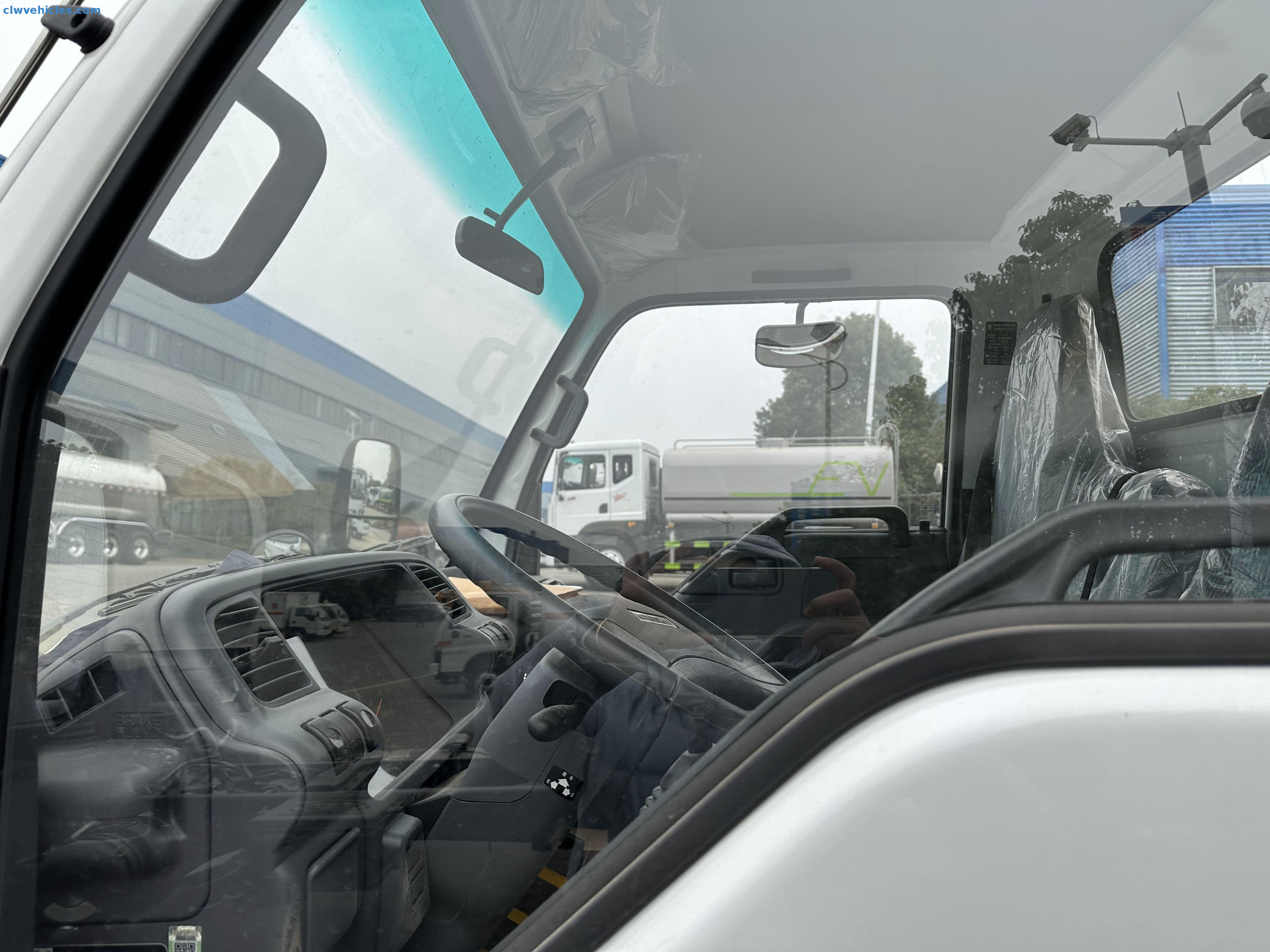

| Cabin | Single,LHD,with A/C | |
| Engine | Model | 4KH1CN6LB |
| HP | 120 | |
| Emission Standard | Eu 5 | |
| Displacement/Output(ml/kw) | 2999/88 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2000 | |
| Maximum Torque(N·m) | 290 | |
| Gearbox | ISUZU MSD5-Speed 5Forward/1Reverse Gear | |
| Tyre | 7.00R16LT 14PR | |
| Crane | Crane Model | SQ2SK1Q |
| Max Lifting Moment(T M) | 4.2 | |
| Max Lifting Capacity(kg) | 2100 | |
| Max Lifting Height(m) | 7.5 | |
| Length of Basic Boom(m) | 3.4 | |
| Recommend Power(kw) | 18 | |
| Max oil flow of hydraulic system(L/min) | 20 | |
| Max pressure of hydraulic system(Mpa) | 16 | |
| Oil tank capacity(L) | 25 | |
| Installation space(mm) | 850 | |
Precautions for the operation of a straight boom truck-mounted crane:
I. Before operation
- Check the crane for firm connections, no damaged wire rope, normal hydraulic system, and ensure key parts are intact. Also check vehicle brakes and tire pressure. Confirm solid and flat ground.
II. During operation
- Follow procedures, stay focused. Ensure lifted object is firmly bound. Lift smoothly, avoid overloading. Watch for obstacles when extending/retracting boom. Be careful near maximum angles/radii. Observe for abnormalities. Be cautious in windy conditions.
III. After operation
- Retract and fix boom, turn off hydraulic system and park safely. Regularly maintain and train operators.
