ISUZU
CLW
CLW5120TBC6
Product Description：

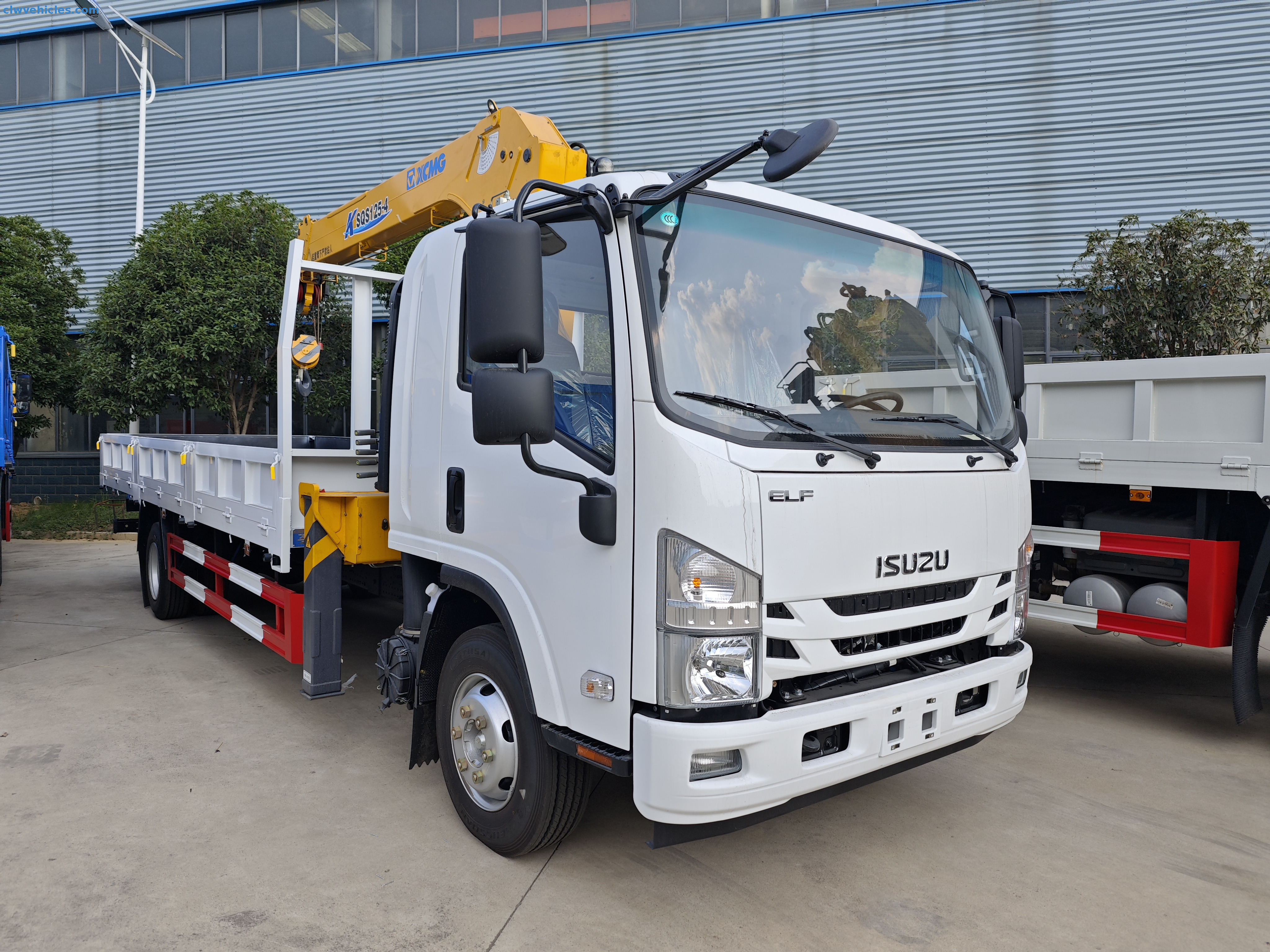

Tired of juggling cranes and trucks for small-scale jobs? Meet CLW Group's game-changer – an ISUZU truck mounted crane that's your all-in-one solution for construction, logistics, and tight-space lifting. Built on ISUZU's battle-tested chassis with a robust XCMG KSQS125-4 straight-arm crane, this nimble powerhouse turns complex lifts into one-operator tasks.
City-Smart Performance, Uncompromised Muscle
Torque Where It Counts: ISUZU's 4HK1-TCG61 turbo-diesel (190hp/135kW) conquers steep sites while sipping fuel
Park-Anywhere Agility: 5.2m wheelbase + 22°/14° angles squeeze into alleys and back lots
ISUZU-Smooth Shifting: 6-speed manual transmission glides through gears under load
Grip & Stop Confidence: 235/75R17.5 tires + air brakes handle muddy yards

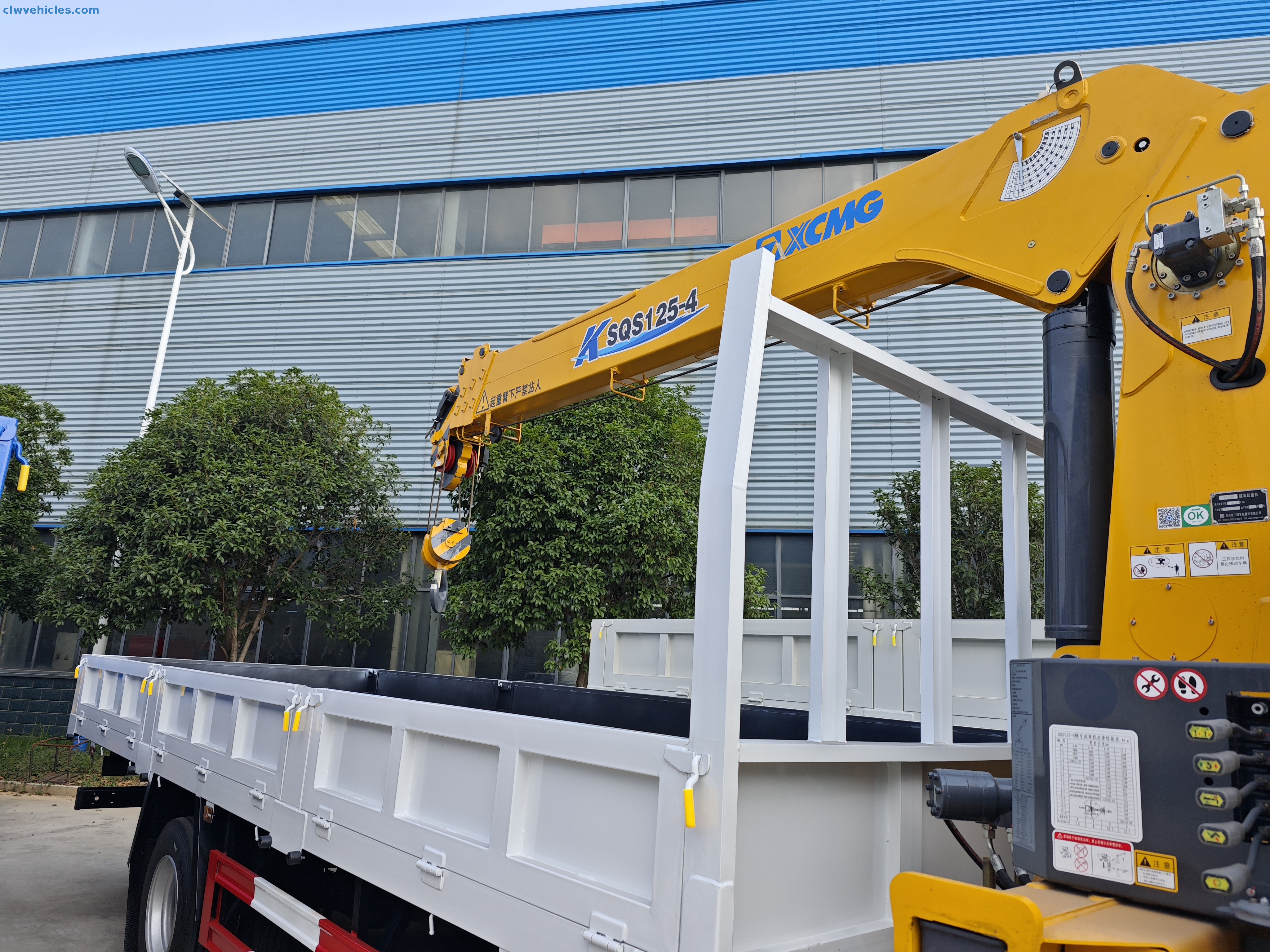

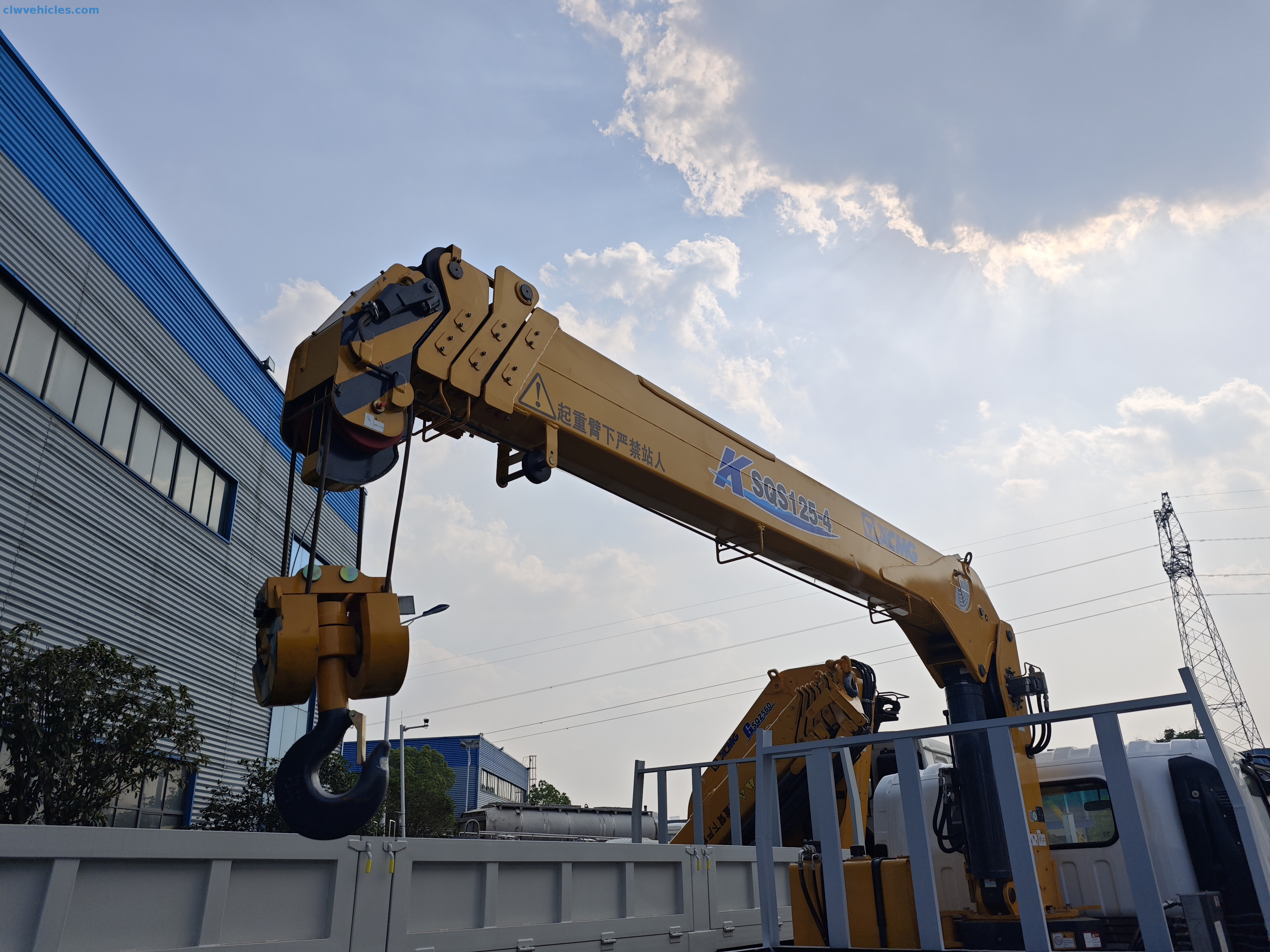

XCMG Crane: Small Footprint, Giant Reach
This truck mounted straight arm crane doesn't just lift – it dominates:
→ 5-Ton Muscle: Hoist mini-excavators, transformers, or pallet stacks
→ 12.5m Sky Reach: Install rooftop AC units or clear 3-story buildings
→ 11.2m Horizontal Sweep: Service power lines across ditches
→ 90L Hydraulic Reserve: Power through 300+ lifts/day

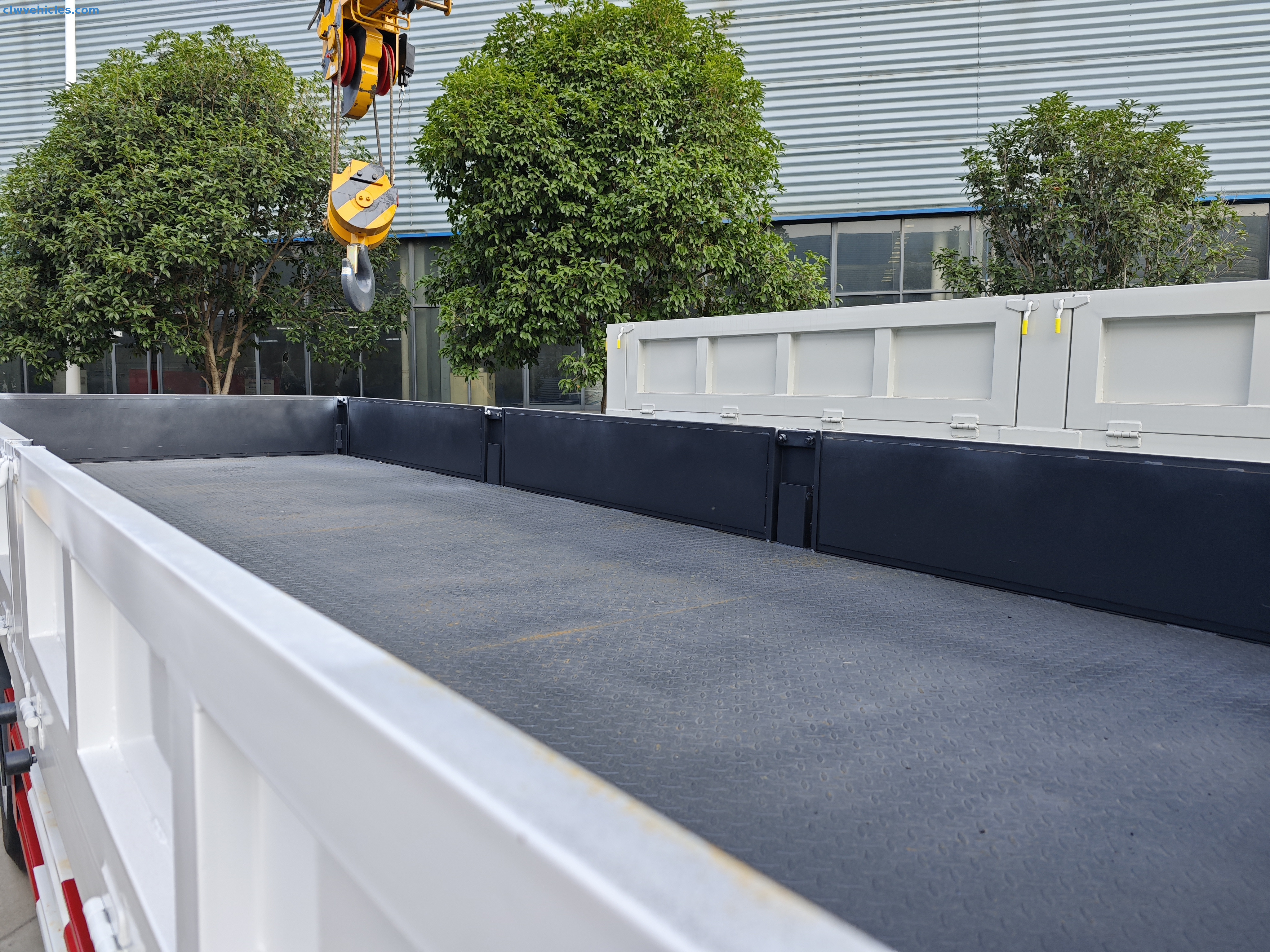

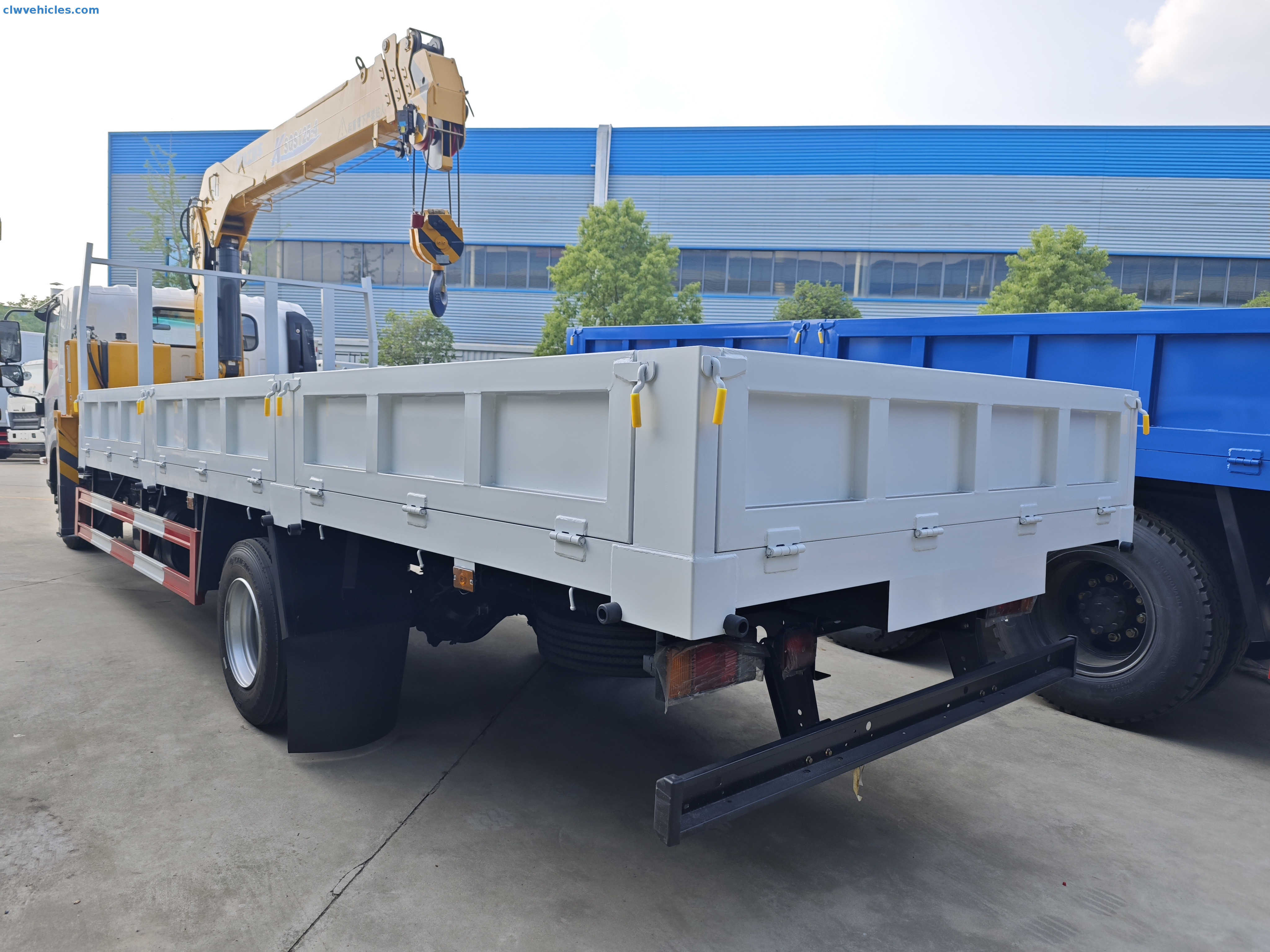

Mounted on a CLW Group flatbed truck with 900mm installation space, you keep full cargo capacity for tools and materials.
Why Contractors Choose This Beast:
1-Minute Setup: Outriggers deploy faster than competitors' coffee breaks
Zero Ground Space: Works where conventional cranes can't park
ISUZU Reliability: 250,000-km engine lifespan
CLW Toughness: Reinforced chassis laughs off job-site abuse
Make It Your Own
Add augers, pallet forks, or grab buckets – we'll customize your CLW Group crane truck for tomorrow's challenge.
Main Technical Parameters:
| Vehicle Description | Brand | CLW Goup |
| GVW(kg) | 10550 | |
| Curb Weight(kg) | 6830 | |
| Overall Dimension(mm) | 9050*2500*3450 | |
| Wheelbase(mm) | 5200 | |
| Front/Rear Wheel Track(mm) | 1680/1650 | |
| Axle Load(kg) | 3500/7050 | |
| Top Speed(km/h) | 89 | |
| Cargo Box Size(mm) | 5200*2500*400 | |
| Chassis Brand | ISUZU | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | 4HK1-TCG61 |
| HP | 190 | |
| Emission Standard | Eu 5 | |
| Displacement/Output(ml/kw) | 5193/135 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2600 | |
| Maximum Torque(N·m) | 507 | |
| Maximum Torque Speed(rpm) | 1600-2600 | |
| Gearbox | ISUZU MLD6-Speed 6Forward/1Reverse Gear | |
| Tyre | 235/75R17.5 | |
| Crane | Crane Model | KSQS125-4 |
| Max Lifting Moment(T M) | 12.7 | |
| Max Lifting Capacity(kg) | 5000 | |
| Max Lifting Height(m) | 12.5 | |
| Max Working Radius(m) | 11.2 | |
| Recommend Power(kw) | 18 | |
| Max oil flow of hydraulic system(L/min) | 40 | |
| Max pressure of hydraulic system(Mpa) | 22 | |
| Oil tank capacity(L) | 90 | |
| Installation space(mm) | 900 | |
Precautions for the operation of a straight boom truck-mounted crane:
I. Before operation
- Check the crane for firm connections, no damaged wire rope, normal hydraulic system, and ensure key parts are intact. Also check vehicle brakes and tire pressure. Confirm solid and flat ground.
II. During operation
- Follow procedures, stay focused. Ensure lifted object is firmly bound. Lift smoothly, avoid overloading. Watch for obstacles when extending/retracting boom. Be careful near maximum angles/radii. Observe for abnormalities. Be cautious in windy conditions.
III. After operation
- Retract and fix boom, turn off hydraulic system and park safely. Regularly maintain and train operators.
