ISUZU
CLW
CLW5180TBC7
Product Description：

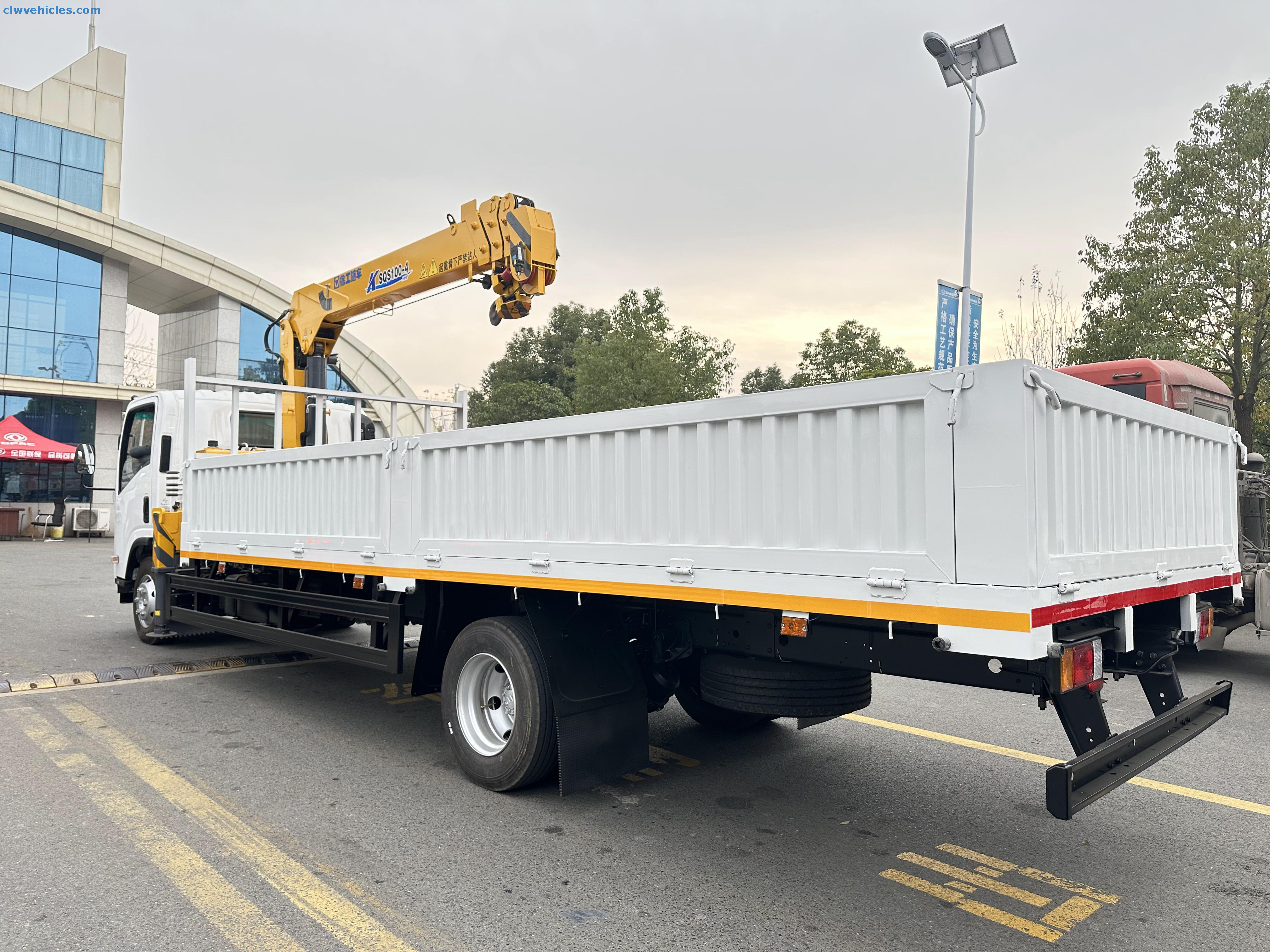

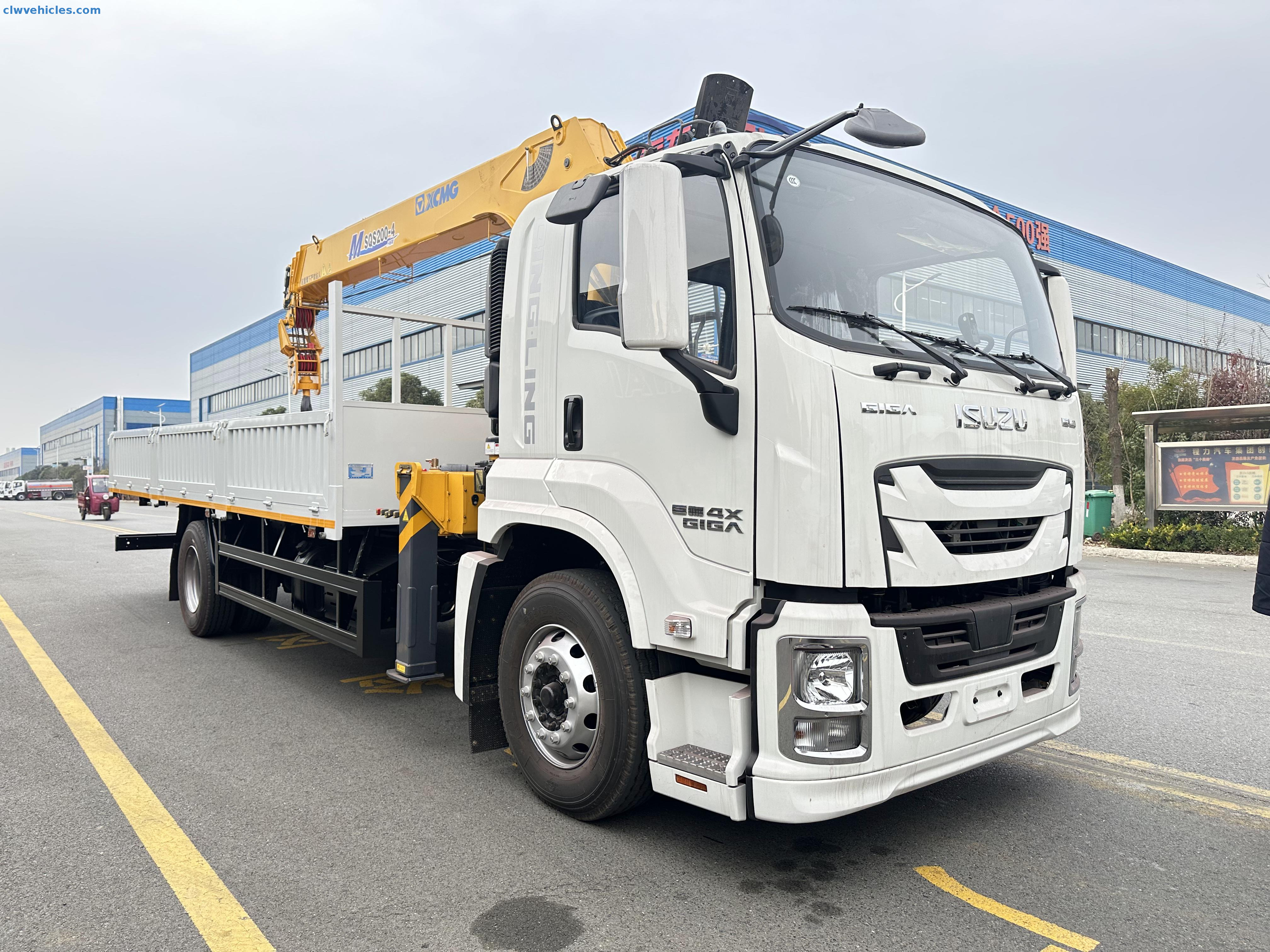

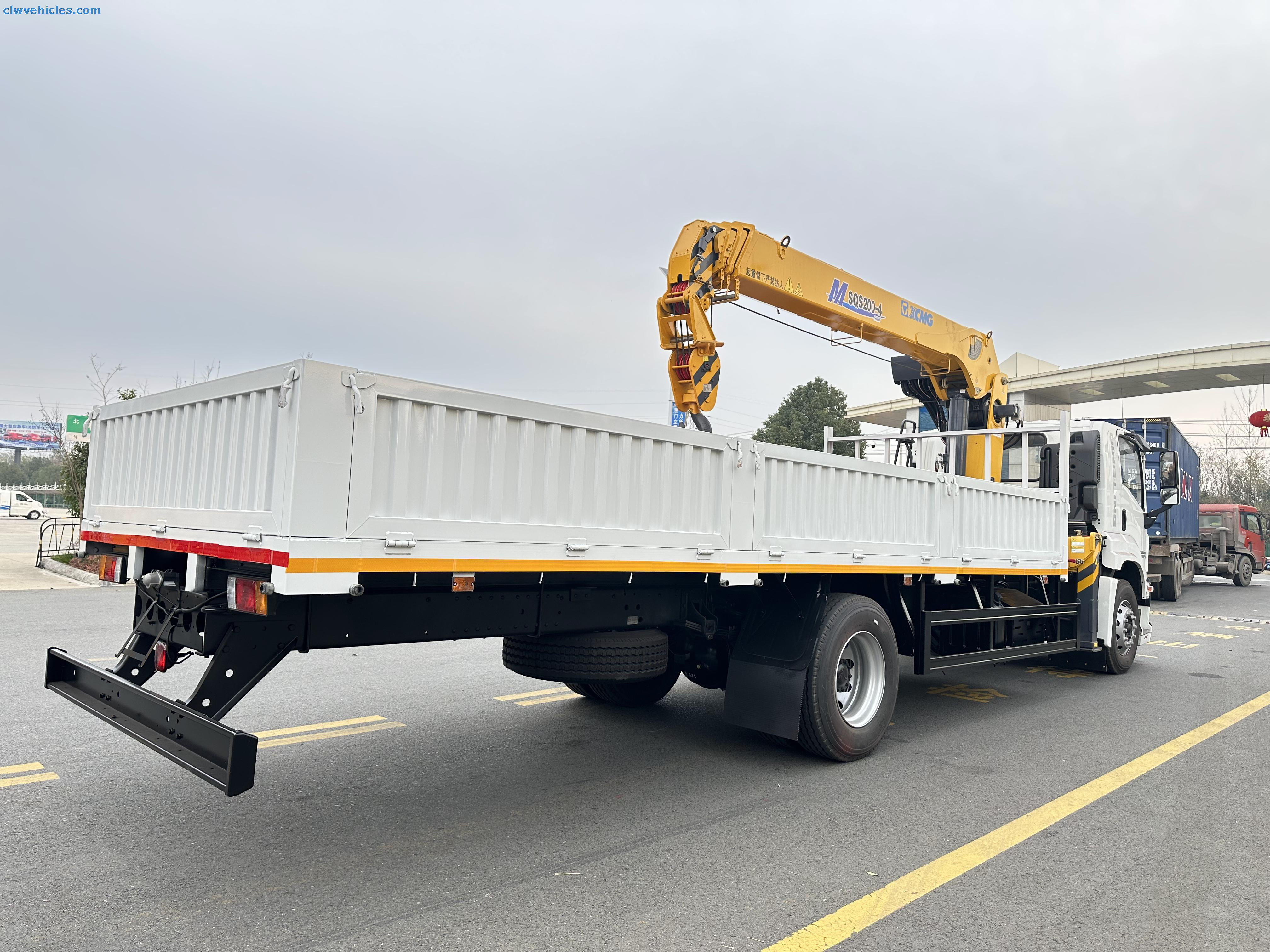

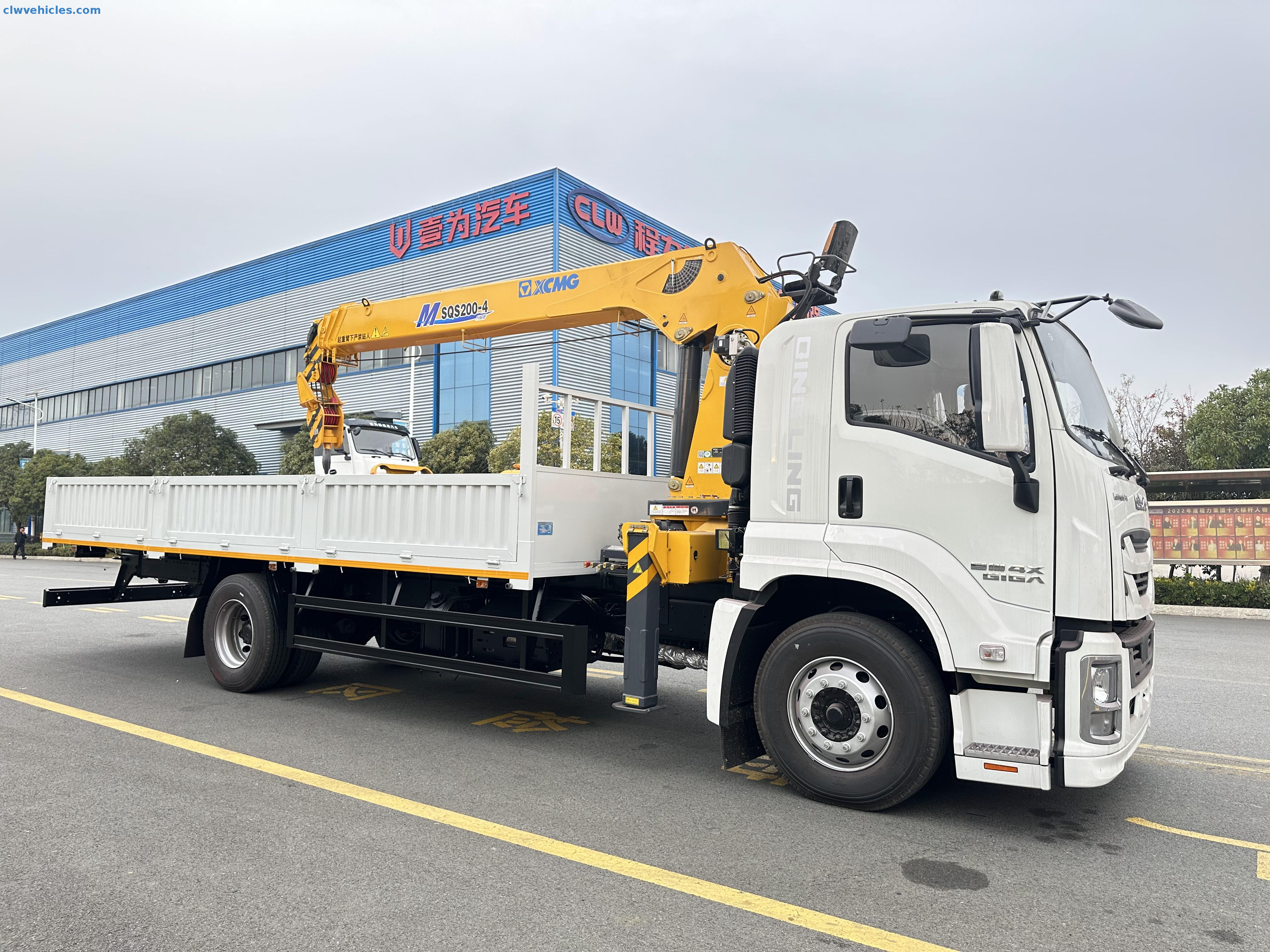

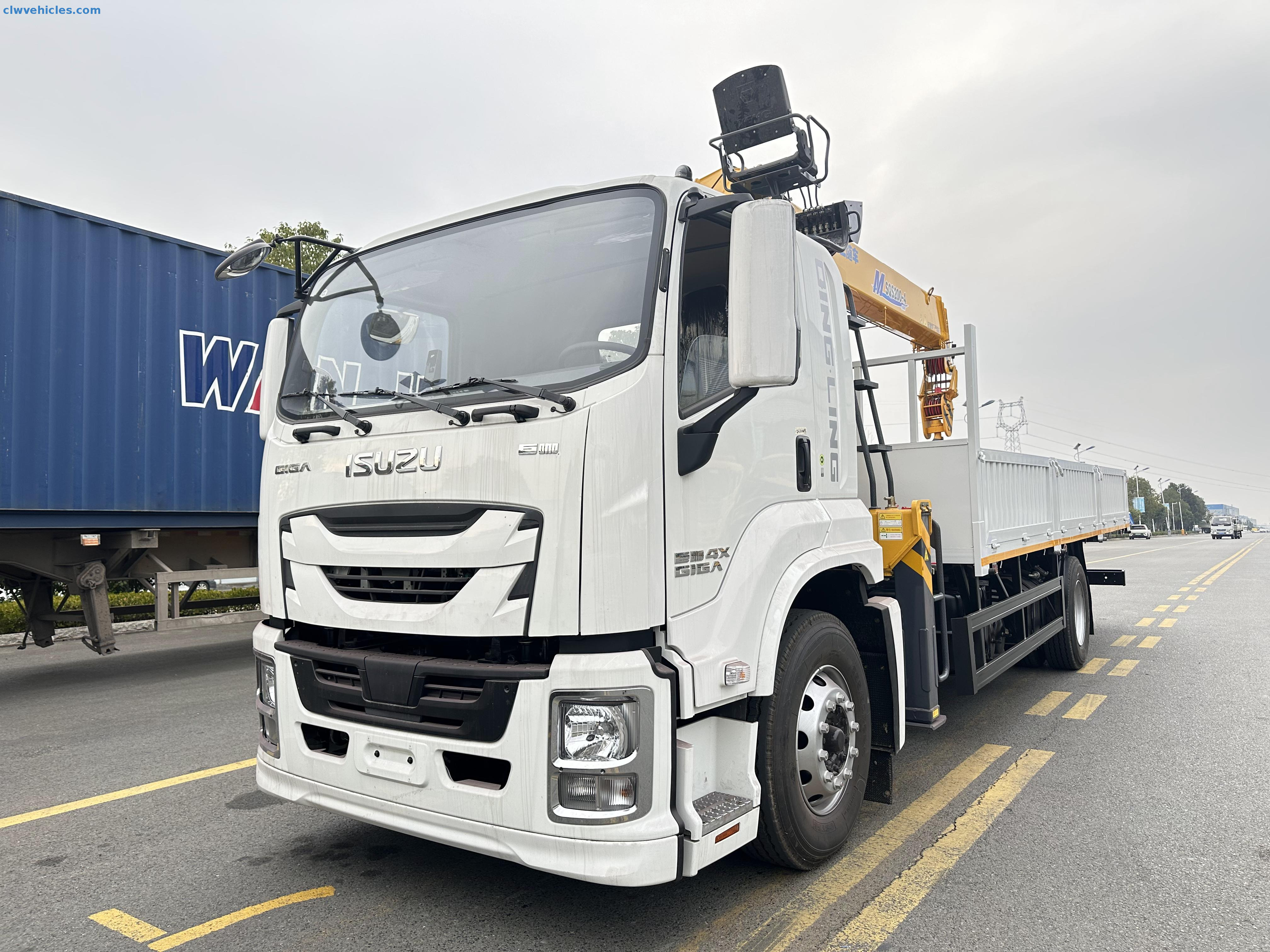

ISUZU GIGA 4×2 Cargo Truck Mounted Telescopic Boom Crane – Versatile Hauling and Lifting in One
When your jobsite demands both heavy hauling and precise lifting, the ISUZU GIGA 4×2 Cargo Truck Mounted Telescopic Boom Crane from CLW Group delivers. This Truck with Crane combines a sturdy cargo deck with a powerful telescopic boom, giving you a true truck‑mounted crane that travels like a regular flatbed and works like a dedicated crane.
Ever needed to drive material to a tight urban lot, then lift it into place with the same vehicle? This Straight Arm Crane Truck handles tasks such as setting steel beams, positioning HVAC units on rooftops, or unloading heavy machinery at remote sites. With a 9.64 t payload and a compact 8 m length, it fits into crowded areas where larger rigs can't go—making it a go‑to isuzu crane truck for construction, utilities, and maintenance crews.
Trusted ISUZU Foundation
Built on a 4×2 GIGA chassis, this rig carries up to 18 000 kg GVW with a 4 500 mm wheelbase for balanced handling. Its 6 500 kg front and 11 500 kg rear axles, paired with robust 295/80R22.5 tires, provide stability under heavy loads. A top speed of 89 km/h keeps you nimble between sites.
Powerful 4HK1‑TCG60 Engine
The 5.2 L common‑rail diesel pumps out 151 kW (205 hp) and a strong 647 N·m of torque at 2 600 rpm, meeting Euro 6 standards. It offers the low‑end grunt you need to climb ramps fully loaded or power the crane’s hydraulics without losing speed.
Smooth ISUZU 6‑Speed Gearbox
The MSD6 manual transmission (6 forward, 1 reverse) gives you precise control whether you’re easing into position for a lift or cruising to the next job. Power steering and an efficient air‑brake system make every mile and stop confidence‑inspiring.
8‑Ton Lifting Capacity
The SQ2SK1Q crane delivers a 200 kN·m lifting moment and can hoist up to 8 000 kg at its base. Its 13.5 m boom reaches where you need, placing loads high or far without repositioning the truck.
Responsive Hydraulics
A compact 25 L oil tank feeds a 20 L/min pump at 16 MPa, giving smooth, responsive control via simple levers. Installation space from 2 310 to 5 700 mm ensures the crane tucks neatly behind the cab.
True Truck‑Mounted Convenience
Outriggers deploy in seconds to stabilize for lifts, then fold flush for transport. As a genuine clw group crane truck, it offers the flexibility of a dedicated crane and the mobility of an XCMG truck crane—all in one package.
Key Benefits at a Glance
Dual Functionality: Haul heavy cargo and perform precision lifts with one vehicle.
Urban Agility: Compact dimensions suit tight sites and narrow streets.
Reliable Performance: ISUZU driveline and proven crane mechanics ensure uptime.
Easy Operation: Intuitive controls and quick setup maximize productivity.
For contractors, rental fleets, or service teams seeking a reliable Truck‑Mounted Crane, the ISUZU GIGA 4×2 Cargo Truck Mounted Telescopic Boom Crane delivers unmatched versatility and performance—making every lift and load smoother, faster, and more efficient.
Main Technical Parameters:
| Vehicle Description | Brand | CLW Goup |
| GVW(kg) | 18000 | |
| Payload Weight(kg) | 9640 | |
| Overall Dimension(mm) | 8000*2550*3920 | |
| Wheelbase(mm) | 4500 | |
| Front/Rear Wheel Track(mm) | 1680/1650 | |
| Axle Load(kg) | 6500/11500 | |
| Top Speed(km/h) | 89 | |
| Cargo Box Size(mm) | 4500*2450*600 | |
| Chassis Brand | ISUZU | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | 4HK1-TCG60 |
| HP | 205 | |
| Emission Standard | Eu 6 | |
| Displacement/Output(ml/kw) | 5193/151 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2600 | |
| Maximum Torque(N·m) | 647 | |
| Gearbox | ISUZU MLD6-Speed 6Forward/1Reverse Gear | |
| Tyre | 295/80R22.5 6+1 spare tire | |
| Crane | Crane Model | SQ2SK1Q |
| Max Lifting Moment(kN.M) | 200 | |
| Max Lifting Capacity(kg) | 8000 | |
| Max Lifting Height(m) | 13.5 | |
| Length of Basic Boom(m) | 13.5 | |
| Max oil flow of hydraulic system(L/min) | 20 | |
| Max pressure of hydraulic system(Mpa) | 16 | |
| Oil tank capacity(L) | 25 | |
| Installation space(mm) | 2310-5700 | |
Precautions for the operation of a straight boom truck-mounted crane:
I. Before operation
- Check the crane for firm connections, no damaged wire rope, normal hydraulic system, and ensure key parts are intact. Also check vehicle brakes and tire pressure. Confirm solid and flat ground.
II. During operation
- Follow procedures, stay focused. Ensure lifted object is firmly bound. Lift smoothly, avoid overloading. Watch for obstacles when extending/retracting boom. Be careful near maximum angles/radii. Observe for abnormalities. Be cautious in windy conditions.
III. After operation
- Retract and fix boom, turn off hydraulic system and park safely. Regularly maintain and train operators.
