ISUZU
CLW
CLW5250TBC2
Product Description：

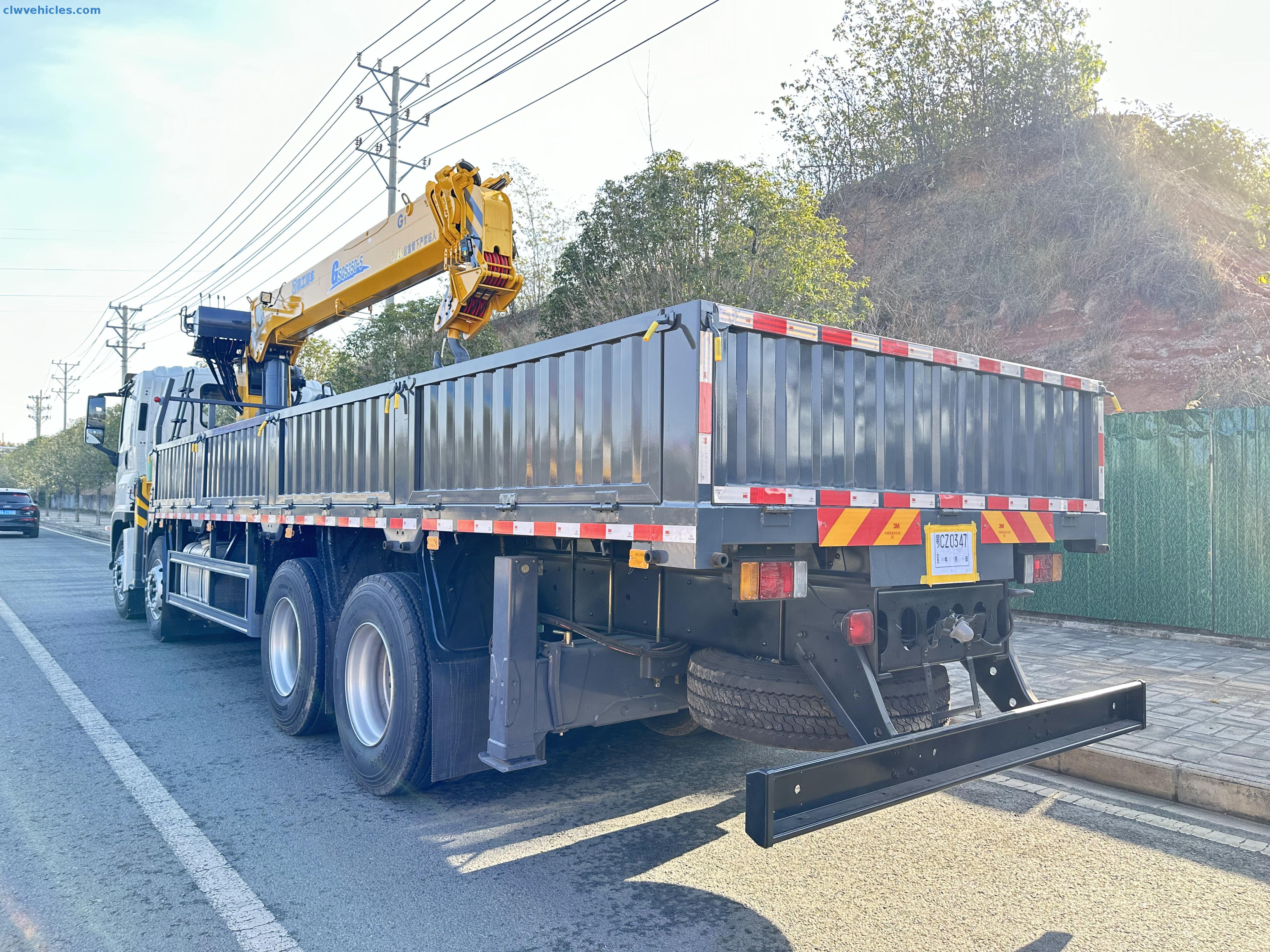

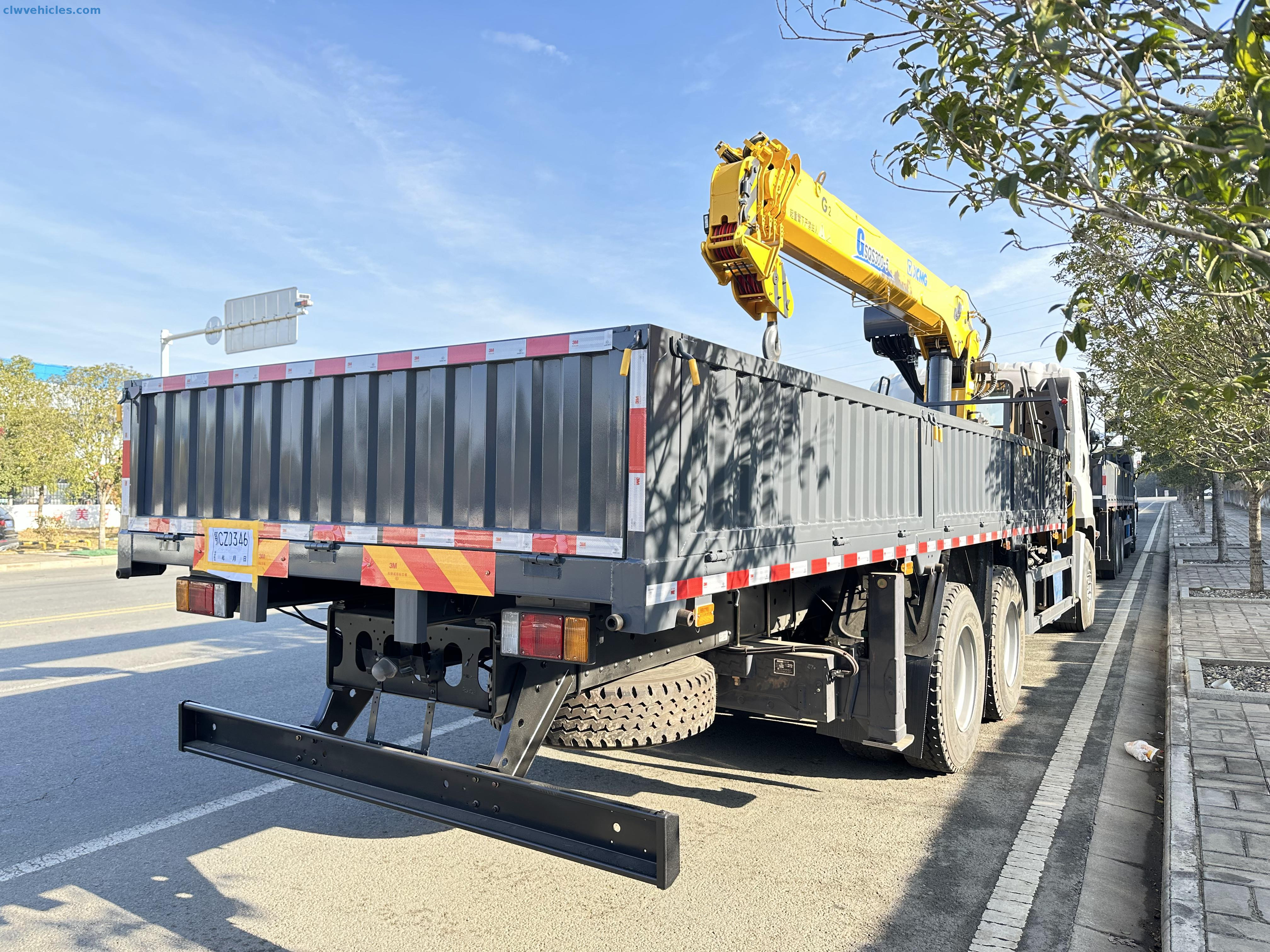

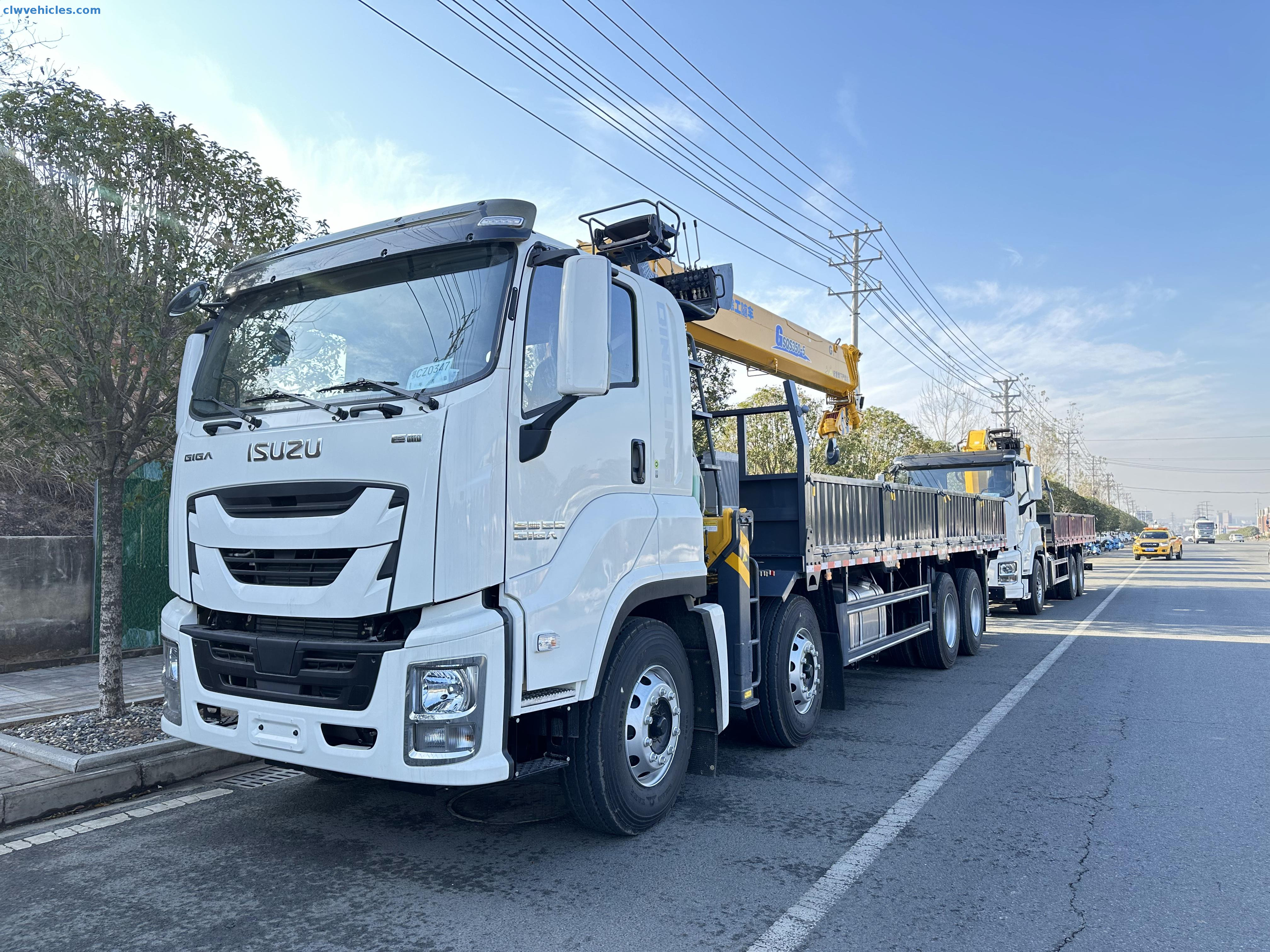

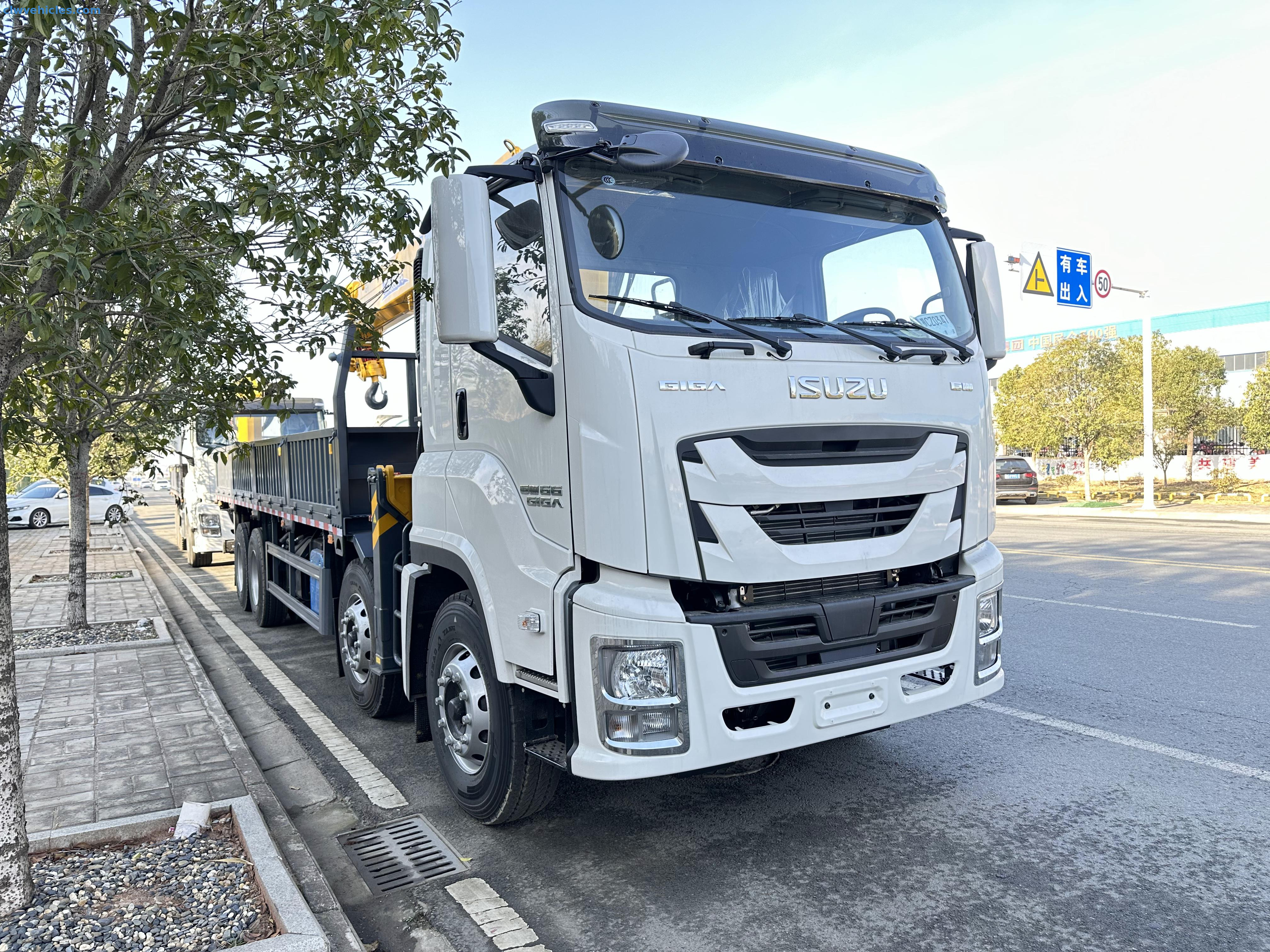

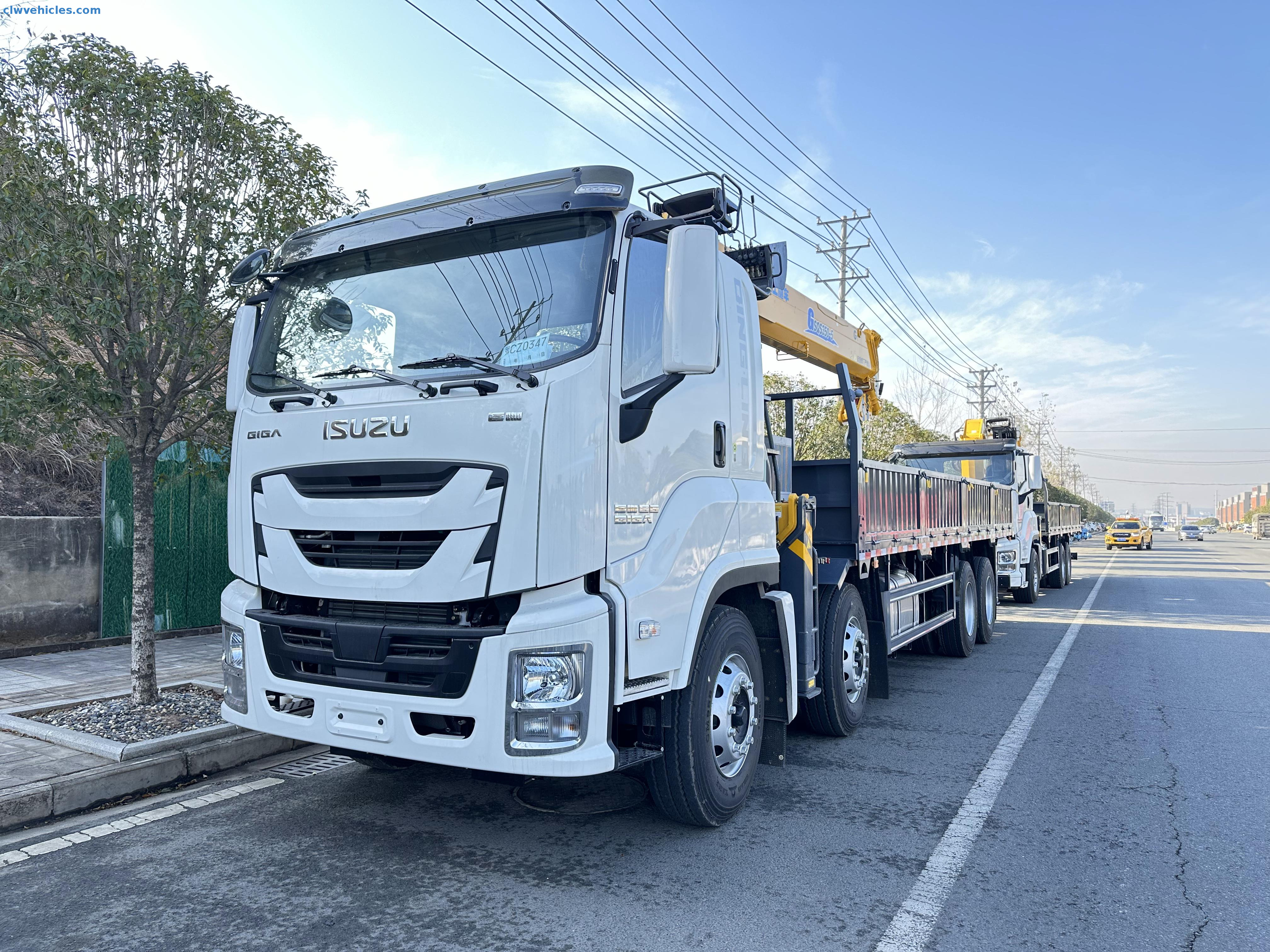

ISUZU GIGA 8×4 14‑Ton Crane Truck – Your Heavy‑Duty Truck‑Mounted Lifter
When your project demands serious lifting muscle and reliable hauling in one package, the ISUZU GIGA 8×4 14‑Ton Crane Truck from CLW Group is the answer. This truck with crane combines a full‑size cargo deck and a powerful telescopic boom, making it the ultimate Straight Arm Crane Truck for construction sites, industrial plants, and large‑scale infrastructure jobs. From placing steel girders to unloading heavy machinery, it handles every task with ease and precision.
This XCMG truck crane rides on an 8×4 chassis, boasting a 32,000 kg GVW and a three‑axle layout (7,000/13,000/13,000 kg) for unmatched stability under load. With a wheelbase of 1,850 + 4,575 + 1,370 mm and generous approach/departure angles (14°/15°), it navigates rough terrain and tough access roads without breaking stride. A three‑person cab keeps your crew comfortable with air conditioning and ergonomic controls, while its 11 m length and 2.55 m width strike the perfect balance between capacity and maneuverability.
Under the hood, the 6WG1‑TCG61 common‑rail engine delivers 338 kW (460 hp) and a stout 2,060 Nm of torque. Emission‑taming technologies—EGR, DOC, DPF, and SC—keep you Euro‑compliant without sacrificing performance. Paired with a 12‑speed manual transmission (plus 2 reverse gears) and hydraulic power steering, this isuzu crane truck offers smooth acceleration, confident hill climbs, and precise control at highway speeds up to 89 km/h. The heavy‑duty 315/80R22.5 tires and an air‑brake system with ABS ensure safety and stability whether you’re loaded or empty.

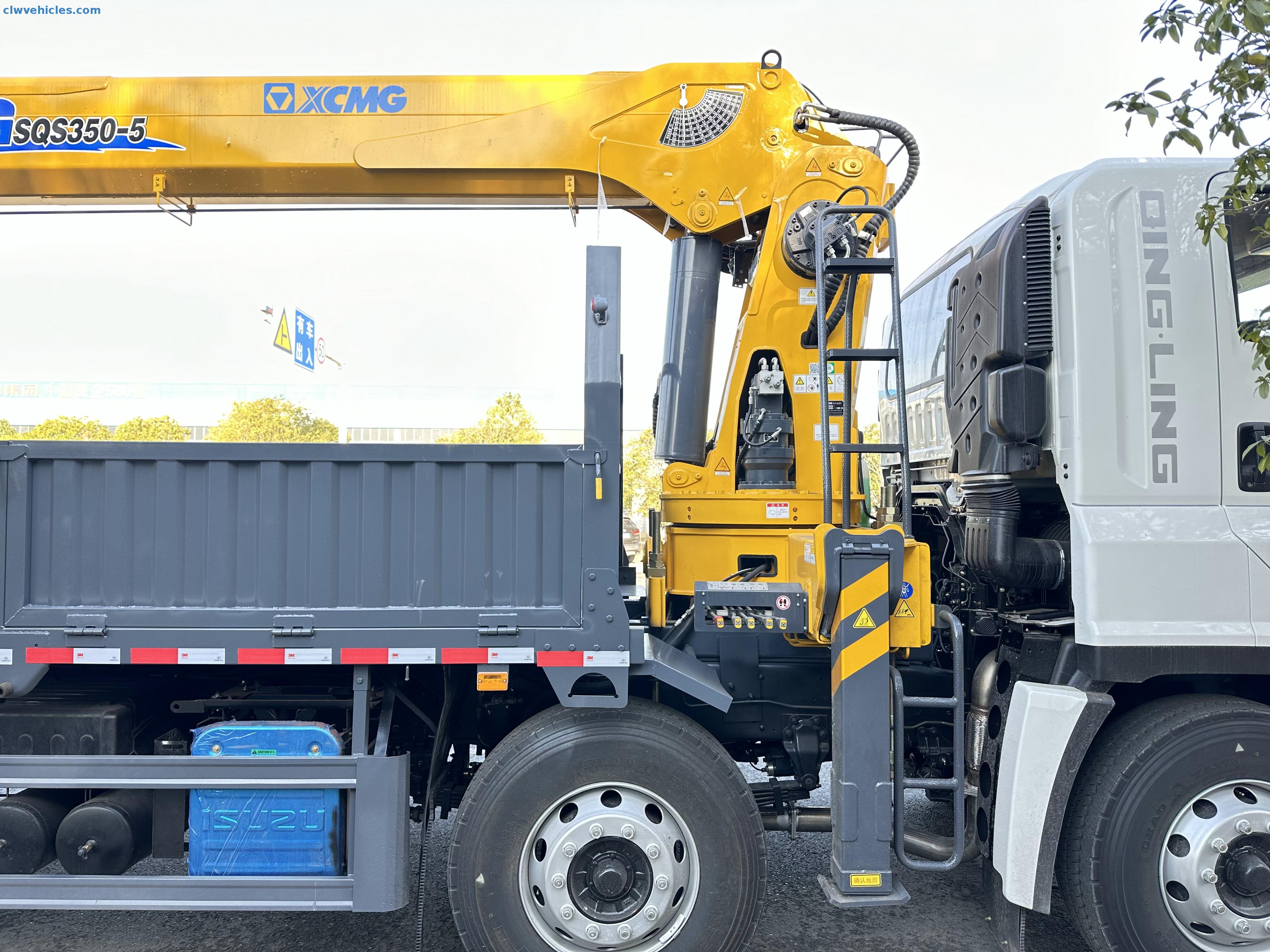

Mounted just behind the cab, the GSQS350‑5 telescopic crane boasts a 14,000 kg maximum lift and a hydraulic outreach of 19.6 m. With full 360° rotation and a stabilizer spread from 2,454 to 7,562 mm, it creates a steady work platform in seconds. High‑flow hydraulics (63 + 50 L/min at 28 MPa) deliver responsive, precise movements, and a 270 L oil reservoir keeps operations smooth during long shifts. Whether you’re setting precast panels, lifting transformers, or positioning pipe sections, this Truck‑Mounted Crane rises to the occasion.
Key Advantages
All‑In‑One Efficiency: Haul and lift with one reliable clw group crane truck.
Heavy‑Duty Reach: 19.6 m outreach and 14 ton capacity for big‑job confidence.
Robust Reliability: Proven ISUZU driveline and XCMG‑grade crane components.
Enhanced Safety: Full‑rotation boom, wide outriggers, and ABS‑equipped brakes.
When you need a true workhorse that combines haulage and hoisting, the ISUZU GIGA 8×4 14‑Ton Crane Truck delivers unbeatable versatility and performance—making it the go‑to Truck‑Mounted Crane for demanding professionals.
Main Technical Parameters:
| Main Technology Parameter | |
| Model Name | CLW Group ISUZU 8x4 14ton Crane Truck |
| Driving Type | 8x4 |
| Color | White and black or based on client's request. |
| Number of Cabs | 3 |
| Weights | |
| GVW(kg) | 32000 |
| Curb Weight(kg) | 12500 |
| Dimensions | |
| Wheelbase(mm) | 1850+4575+1370 |
| Front/Rear Overhang(mm) | 1370/2590 |
| Approach/Departure Angle | 14/15 |
| Overall Dimension(mm) | 11000x2550x3600 |
| Max Speed(km/h) | 89 |
| Engine | |
| Engine Model | 6WG1-TCG61 |
| Engine Type | Common rail system;EGR+DOC+DPF+SC |
| Rated Torque(Nm) | 2060 |
| Max.Output(kw) | 338(460hp) |
| Drive Line | |
| Transmission | 12 forwards,2 reverse gear |
| Steering | Power steering |
| Brake | Air brake system |
| Axle | |
| Axle | 7000/13000/13000 |
| Tire Specification | |
| Tire Specification | 315/80R22.5; 12+1spare tire |
| Front Wheel Track(mm) | 2065 |
| Rear Wheel Track(mm) | 1855/1855 |
| Upper Body Configuration | |
| Crane Model | GSQS350-5 |
| Max lifting capacity(kg) | 14000 |
| Max hydaulic outreach(m) | 19.6 |
| Slewing Angle(°) | 360 |
| Stabilizer Spread(mm) | 2454-7562 |
| Installation Space(mm) | 1250 |
| Max Operating Pressure(MPa) | 28 |
| Recommended Pump Capacity(L/min) | 63+50 |
| Oil Tank Capacity(L) | 270 |
| Dead Weight(kg) | 5723 |
Precautions for the operation of a straight boom truck-mounted crane:
I. Before operation
- Check the crane for firm connections, no damaged wire rope, normal hydraulic system, and ensure key parts are intact. Also check vehicle brakes and tire pressure. Confirm solid and flat ground.
II. During operation
- Follow procedures, stay focused. Ensure lifted object is firmly bound. Lift smoothly, avoid overloading. Watch for obstacles when extending/retracting boom. Be careful near maximum angles/radii. Observe for abnormalities. Be cautious in windy conditions.
III. After operation
- Retract and fix boom, turn off hydraulic system and park safely. Regularly maintain and train operators.
