SINOTRUK
CLW
CLW5120TBC2
Product Description：

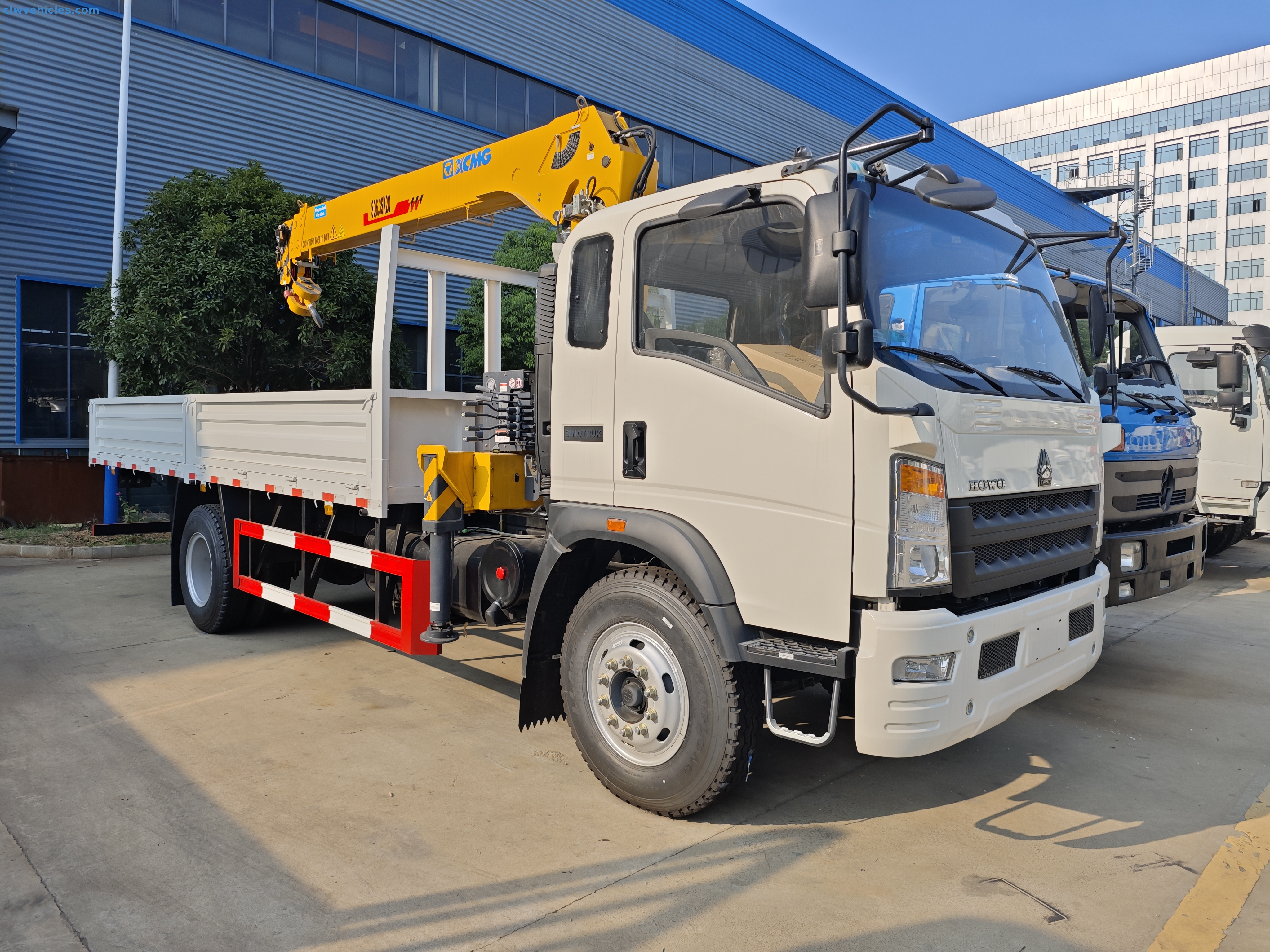

Sinotruk HOWO 4x2 6.3-Ton Truck-Mounted Crane
This versatile vehicle combines a robust HOWO chassis with specialized lifting capabilities. Key specifications include:
• Dimensions: 7,120 × 2,420 × 3,500 mm (L×W×H)
• Chassis Configuration: 3,800 mm wheelbase with 9.00R20 tires
• Power Unit: B170 33 turbocharged diesel engine delivering 170 HP (5.9L displacement)
• Transmission: 6-speed manual gearbox + reverse
Integrated Superstructure Features:
1. Cargo Platform:
◦ Dimensions: 5,070 × 2,400 × 600 mm (Q235 carbon steel construction)
◦ Customizable color scheme for both cab and body
◦ Integrated toolbox for tool storage
2. Lifting System:
◦ Standard configuration: SQ6.3SK2Q hydraulic crane (6.3-ton capacity)
◦ Optional compatibility with alternative crane models from third-party manufacturers
The design emphasizes operational flexibility while maintaining structural durability, suitable for medium-duty logistics and construction applications. Customization options ensure adaptability to specific operational requirements.
Main Technical Parameters:
| Vehicle Description | Brand | CLW |
| GVW(kg) | 15795 | |
| Curb Weight(kg) | 8450 | |
| Loading Weight(kg) | 7350 | |
| Overall Dimension(mm) | 7120*2420*3500 | |
| Wheelbase(mm) | 3800 | |
| Axle Load(kg) | 4860/9200 | |
| Top Speed(km/h) | 89 | |
| Cargo Box Size(mm) | 5070*2400*600 | |
| Chassis Brand | SINOTRUK | |
| Chassis Model | ZZ1127H4515F1 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | B180 33 |
| HP | 180 | |
| Emission Standard | Eu 3 | |
| Displacement/Output(ml/kw) | 5999/125 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2500 | |
| Maximum Torque(N·m) | 900 | |
| Maximum Torque Speed(rpm) | 1500 | |
| Gearbox | 6Forward/1Reverse Gear | |
| Tyre | 8.25R20 16PR | |
| Crane | Crane Model | SQ6.3SK2Q |
| Max. lifting moment(T M) | 15.7 | |
| Max lifting capacity(kg) | 6300 | |
| Recommend Power(kw) | 20 | |
| Max oil flow of hydraulic system(L/min) | 40 | |
| Max pressure of hydraulic system(Mpa) | 20 | |
| Oil tank capacity(L) | 90 | |
| Installation space(mm) | 900 | |
Precautions for the operation of a straight boom truck-mounted crane:
I. Before operation
- Check the crane for firm connections, no damaged wire rope, normal hydraulic system, and ensure key parts are intact. Also check vehicle brakes and tire pressure. Confirm solid and flat ground.
II. During operation
- Follow procedures, stay focused. Ensure lifted object is firmly bound. Lift smoothly, avoid overloading. Watch for obstacles when extending/retracting boom. Be careful near maximum angles/radii. Observe for abnormalities. Be cautious in windy conditions.
III. After operation
- Retract and fix boom, turn off hydraulic system and park safely. Regularly maintain and train operators.
