Shacman
CLW
CLW5250TBC1

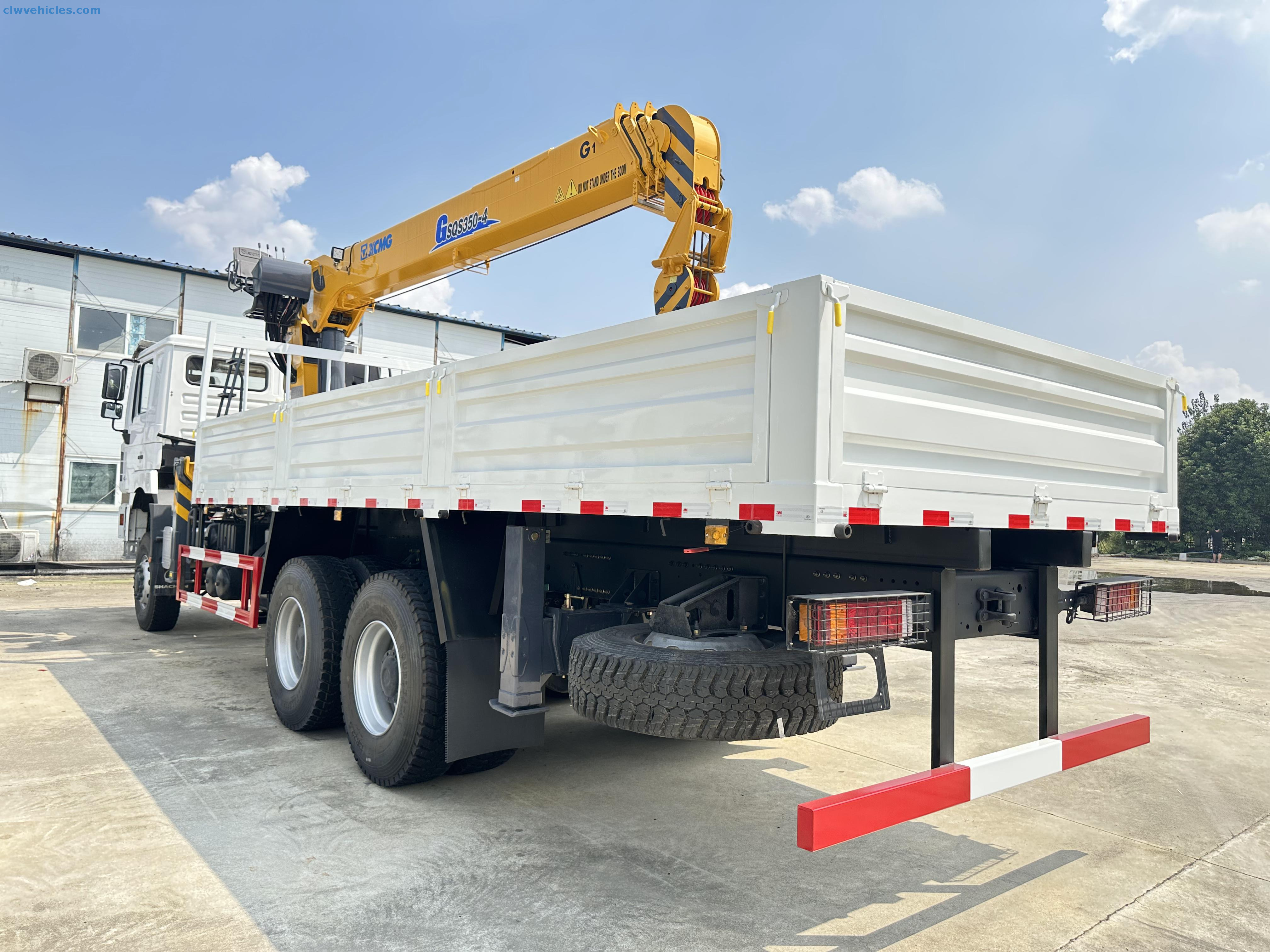

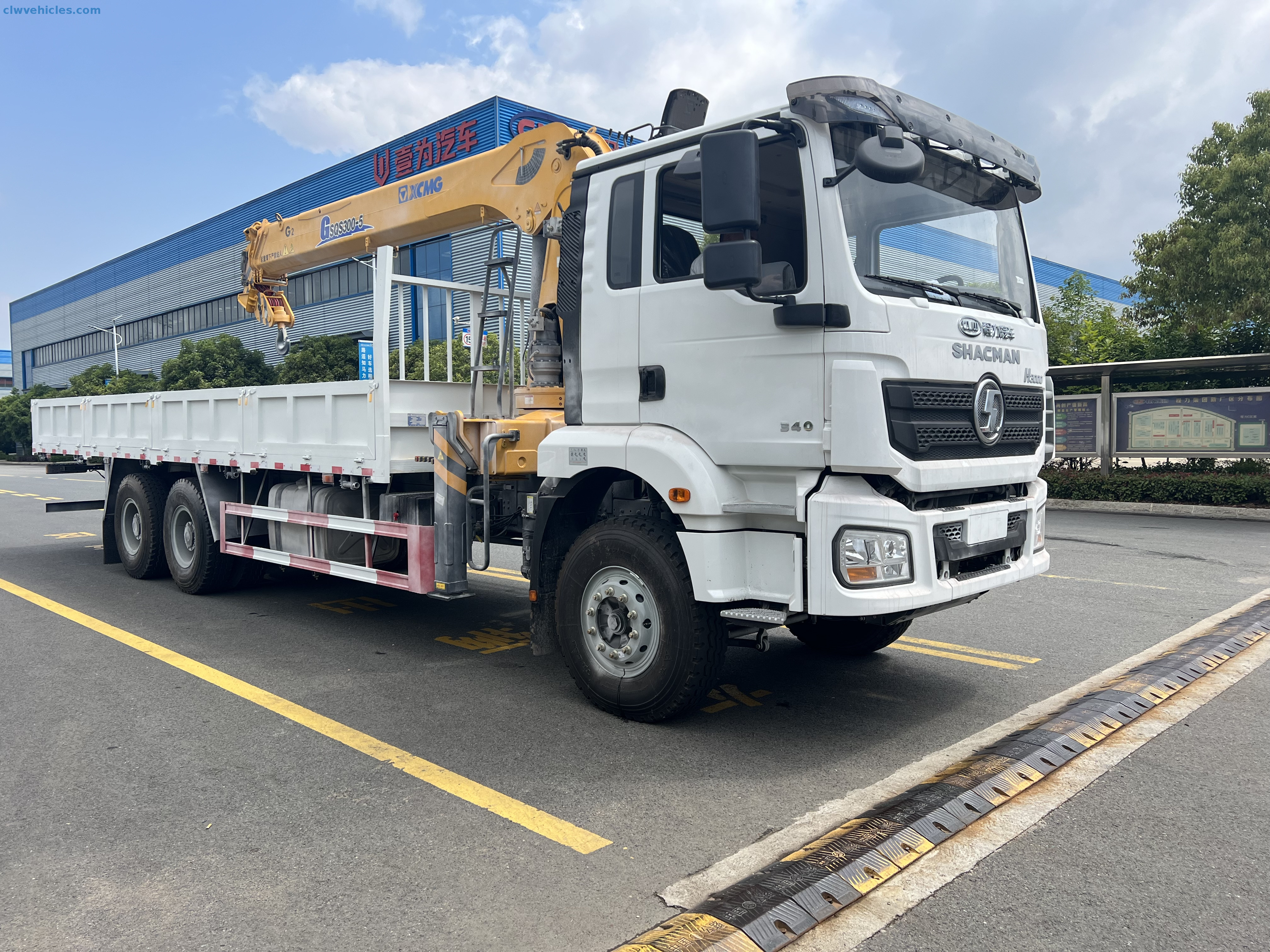

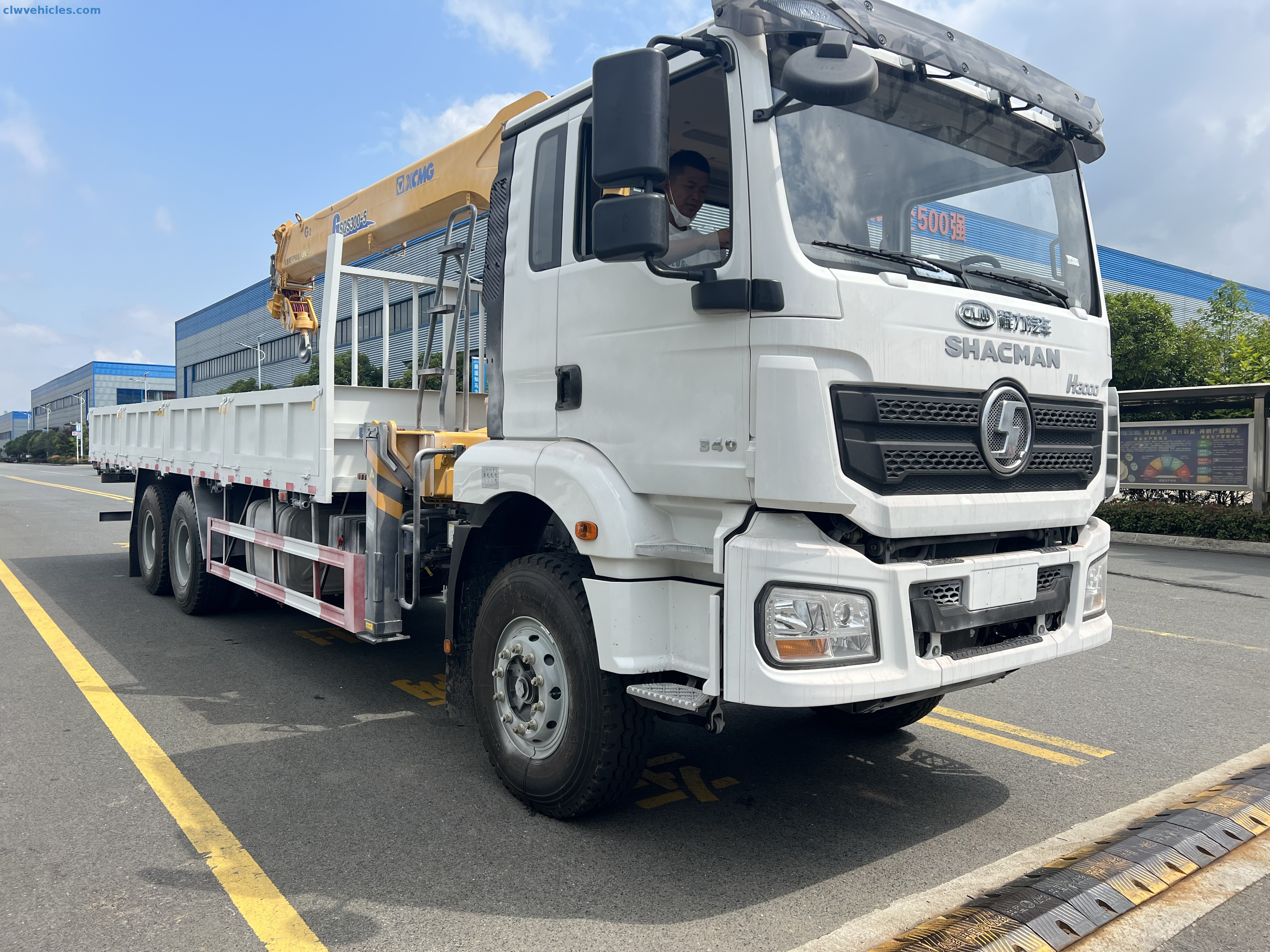

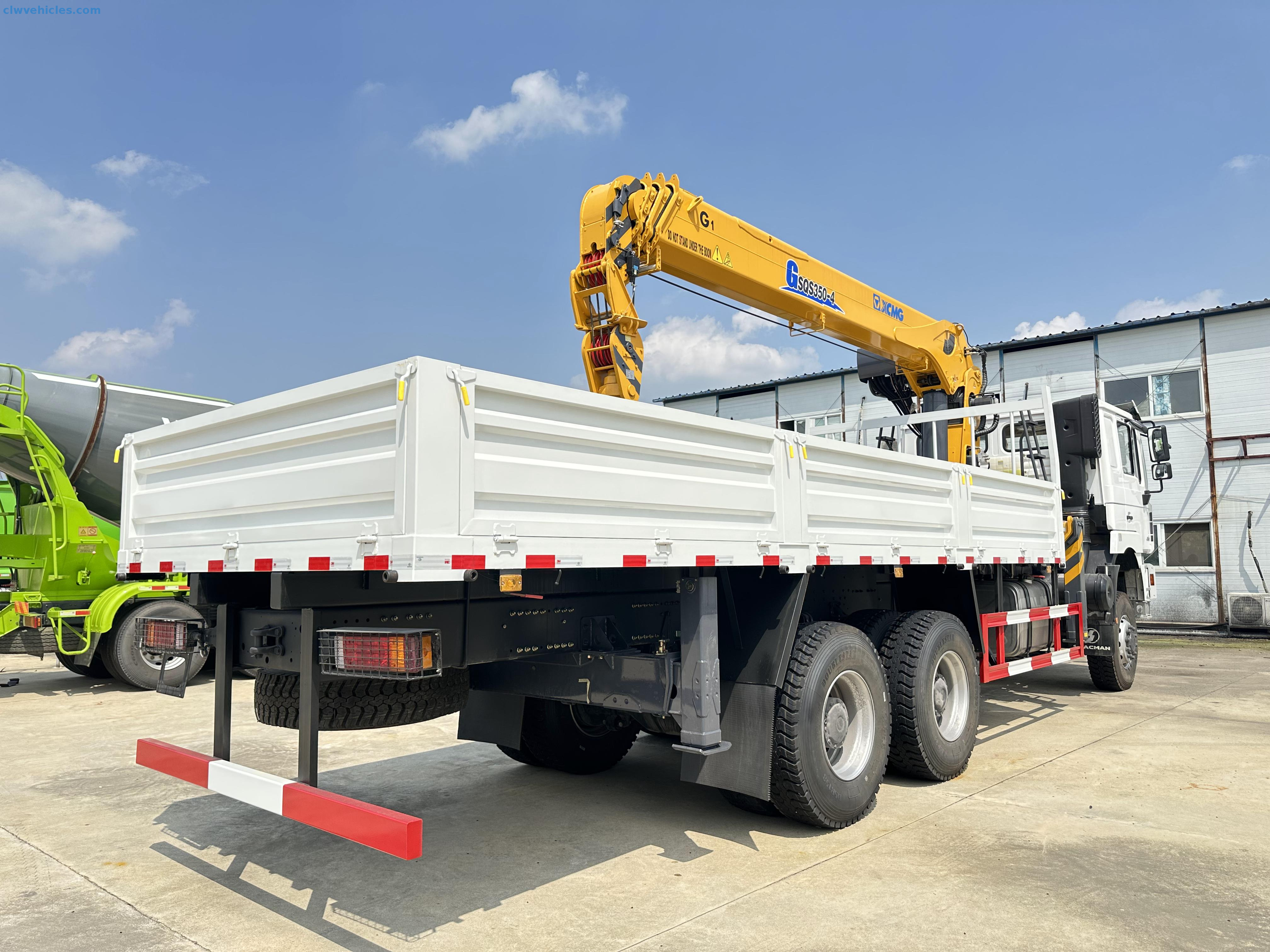

The Shacman 6×4 Cargo Truck with Telescopic Boom Crane is an all-in-one workhorse that unites powerful cargo transport with advanced lifting performance. Engineered by CLW Group, this truck is built for those who need to move heavy loads and handle complex lifting jobs efficiently—without deploying multiple vehicles.

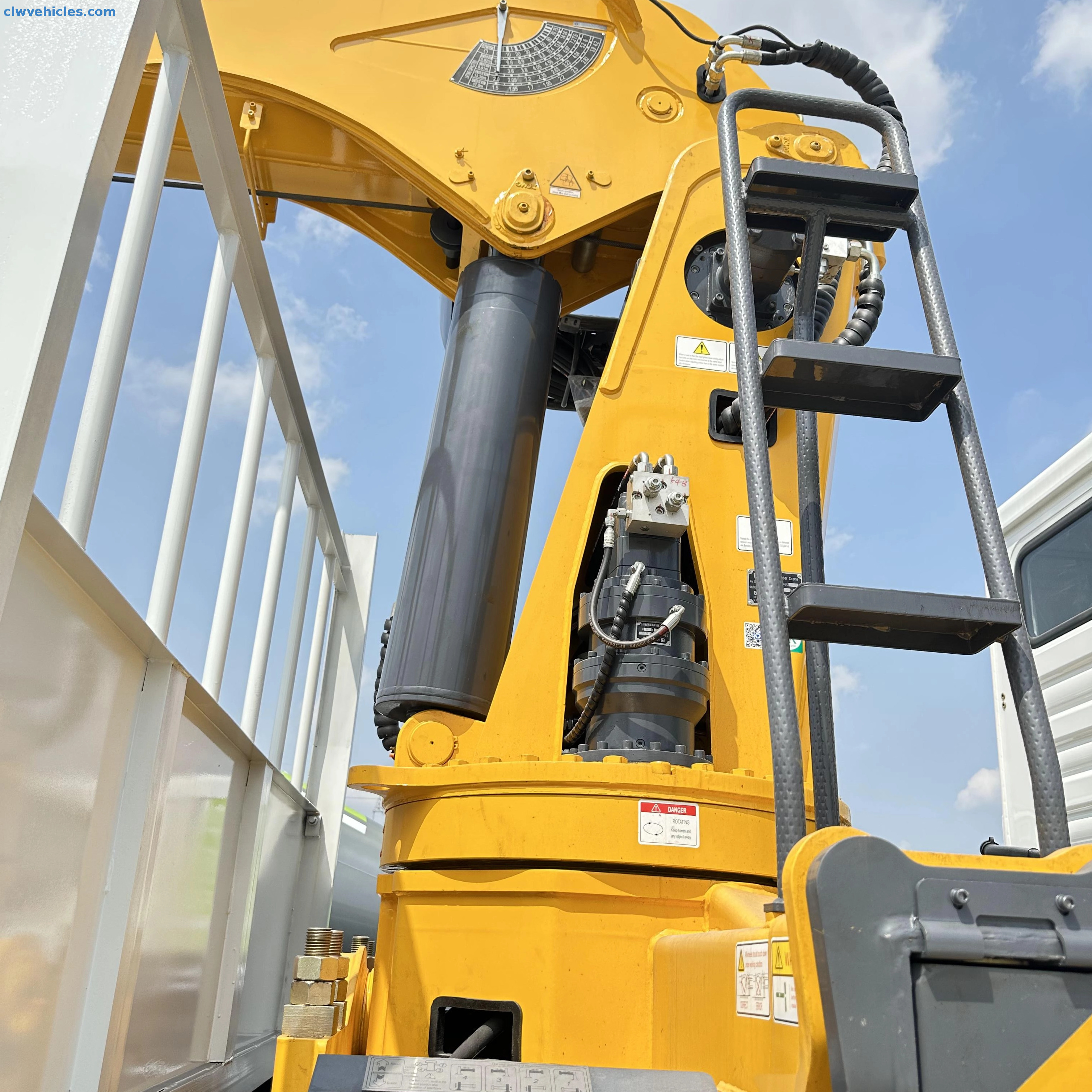

Equipped with a GSQS350-4 telescopic boom crane, this model delivers a 350 kN·m lifting moment and lifts up to 14,000 kg, with a maximum outreach of 17 meters and 360° rotation. Whether installing telecom poles, loading machinery, or handling bulk materials, this truck crane ensures accuracy, power, and speed.
The Shacman chassis supports a 25,000 kg GVW and features a WP10.340E32 340HP diesel engine paired with a FAST 12-speed gearbox, offering the torque and control needed for both highway travel and off-road worksites. With a 7.2-meter cargo bed, it's perfect for transporting large equipment or construction materials while providing crane power on-site.
Hydraulics are powered by dual pumps (63 + 50 L/min) delivering smooth, responsive lifting performance. The four-section telescopic boom and V-type outriggers ensure stability, quick setup, and reliable performance even under demanding conditions.
The Shacman 6×4 telescopic boom crane truck is your all-in-one solution for construction, logistics, and energy sector applications—redefining versatility and productivity.
Powerful 14-Ton Crane Capacity – Handles heavy loads with precision using a GSQS350-4 telescopic crane and 350 kN·m lifting moment.
Extended 17m Reach – Four-section boom provides superior range and 360° slewing for maximum operational flexibility.
Dual-Purpose Efficiency – Combines transport and lifting in one vehicle, saving fleet costs and setup time.
Strong 340HP Shacman Engine – The WP10.340E32 turbo-diesel delivers strong torque and long-term reliability.
Fast and Smooth Hydraulics – Twin hydraulic pumps (63+50 L/min) with 26 MPa pressure ensure quick, stable performance.
Easy Operation & Maintenance – Simple controls, power steering, and quick outrigger deployment enhance safety and ease of use.
Durable Cargo Bed – A 7.2m x 2.45m deck accommodates oversized machinery and materials securely.
Heavy-Duty Build – 11.00R20 tires, reinforced suspension, and robust chassis ensure strength in the harshest conditions.
Construction & Infrastructure: Lifting and placing building materials, concrete panels, and steel components.
Utility & Power Maintenance: Installation of streetlights, poles, and transmission towers.
Mining & Quarry Operations: Moving bulk materials, heavy equipment, and components.
Industrial Logistics: Transporting and loading generators, transformers, and machines in factories.
Municipal Works: Versatile use in road maintenance, public infrastructure, and emergency support.
Q1: What's the maximum lifting capacity of the crane?
A1: The GSQS350-4 crane can lift up to 14,000 kg with a 350 kN·m lifting moment.
Q2: What is the maximum reach of the boom?
A2: The telescopic boom extends up to 17 meters with 360° full rotation.
Q3: Can the truck carry cargo while equipped with the crane?
A3: Yes, it's designed for dual use—transporting goods and performing lifting operations.
Q4: Is the crane powered by a separate engine?
A4: No, the hydraulic system is powered directly by the truck's engine, ensuring efficiency and simplicity.
Q5: Can the crane be customized for higher lifting capacity?
A5: Yes, CLW Group offers optional crane configurations based on customer requirements.
Main Technical Parameters:
| Vehicle Description | Brand | CLW Goup |
| GVW(kg) | 25000 | |
| Curb Weight(kg) | 16890 | |
| Overall Dimension(mm) | 10800*2550*3750 | |
| Wheelbase(mm) | 4750+1400 | |
| Front/Rear Overhang(mm) | 1525*3125 | |
| Axle Load(kg) | 7000/18000 | |
| Top Speed(km/h) | 89 | |
| Cargo Box Size(mm) | 7200*2450*600 | |
| Chassis Brand | Shacman | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | WP10.340E32 |
| HP | 340 | |
| Emission Standard | Eu 3 | |
| Displacement/Output(ml/kw) | 9726/250 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2200 | |
| Maximum Torque(N·m) | 1250 | |
| Maximum Torque Speed(rpm) | 1400-1600 | |
| Gearbox | FAST Brand 12Forward/2Reverse Gear | |
| Tyre | 11.00R20 18PR | |
| Crane | Crane Model | GSQS350-4 |
| Max Lifting Moment(kN.M) | 350 | |
| Max Lifting Capacity(kg) | 14000 | |
| Max Lifting Height(m) | 17 | |
| Slewing Angle( ° ) | 360 Full rotation | |
| Max oil flow of hydraulic system(L/min) | 63+50 | |
| Max pressure of hydraulic system(Mpa) | 26 | |
| Oil tank capacity(L) | 270 | |
| Installation space(mm) | 2474-7582 | |
Precautions for the operation of a straight boom truck-mounted crane:
I. Before operation
- Check the crane for firm connections, no damaged wire rope, normal hydraulic system, and ensure key parts are intact. Also check vehicle brakes and tire pressure. Confirm solid and flat ground.
II. During operation
- Follow procedures, stay focused. Ensure lifted object is firmly bound. Lift smoothly, avoid overloading. Watch for obstacles when extending/retracting boom. Be careful near maximum angles/radii. Observe for abnormalities. Be cautious in windy conditions.
III. After operation
- Retract and fix boom, turn off hydraulic system and park safely. Regularly maintain and train operators.
