Shacman L3000
CLW
CLW5120TBC3
Product Description：

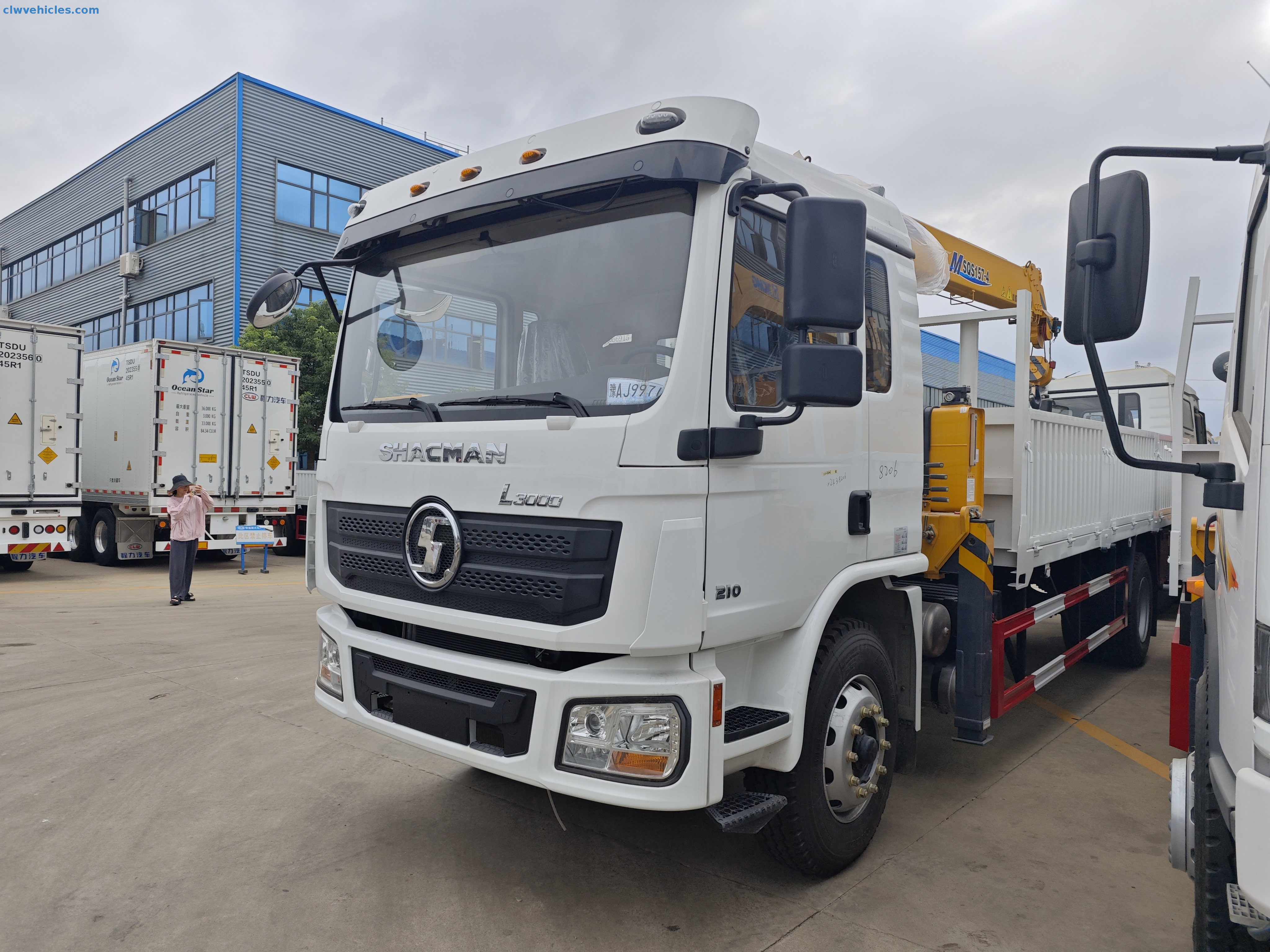

Shacman L3000 4x2 6.3-Ton Truck-Mounted Crane
Versatile Heavy-Lift Solution for Construction & Logistics
---
Key Specifications
Chassis & Powertrain
- Chassis Model: Shacman L3000 4x2 Heavy-Duty Platform
- Dimensions: 9000×2500×3680 mm (L×W×H)
- Wheelbase: 4200 mm
- Engine: B210 33 Diesel Engine
- Horsepower: 210 HP
- Displacement: 5.9L
- Transmission: 6-Speed Manual (6 Forward + 1 Reverse)
- Tires: 9.00R20 All-Terrain Tires
- Payload Capacity: 6.3 Tons
---
Crane & Cargo Body Configuration
Truck-Mounted Crane
- Standard Model: MSQS157-4 Hydraulic Crane
- Customization: Compatible with Other Brand/Model Cranes (Upon Request)
Cargo Body
- Dimensions: 6500×2400×600 mm (L×W×H)
- Material: Q235 High-Strength Steel
- Features:
- Integrated Toolbox for Equipment Storage
- Customizable Body/Cab Colors
- Reinforced Structure for Heavy Loads
---
Why Choose the Shacman L3000?
✅ Dual Functionality: Combines lifting and transport capabilities in one vehicle.
✅ Adaptable Design: Customizable crane and body colors to match fleet requirements.
✅ Robust Build: Q235 steel body ensures durability in harsh environments.
✅ Maneuverability: Optimized wheelbase (4200mm) for urban/rural operations.
✅ Cost Efficiency: 210HP engine balances power and fuel economy.
Main Technical Parameters:
| Vehicle Description | Brand | CLW |
| GVW(kg) | 18000 | |
| Curb Weight(kg) | 12100 | |
| Loading Weight(kg) | 5770 | |
| Overall Dimension(mm) | 9000*2500*3680 | |
| Wheelbase(mm) | 4200 | |
| Axle Load(kg) | 6500/11500 | |
| Top Speed(km/h) | 89 | |
| Cargo Box Size(mm) | 6300*2400*600 | |
| Chassis Brand | Shacman | |
| Chassis Model | SX5189JSQLA1 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | B210 33 |
| HP | 210 | |
| Emission Standard | Eu 3 | |
| Displacement/Output(ml/kw) | 5999/155 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2500 | |
| Maximum Torque(N·m) | 700 | |
| Maximum Torque Speed(rpm) | 1500 | |
| Gearbox | 6Forward/1Reverse Gear | |
| Tyre | 10.00R20 18PR | |
| Crane | Crane Model | MSQS157-4 |
| Max. lifting moment(T M) | 15.7 | |
| Max lifting capacity(kg) | 6300 | |
| Recommend Power(kw) | 20 | |
| Max oil flow of hydraulic system(L/min) | 40 | |
| Max pressure of hydraulic system(Mpa) | 20 | |
| Oil tank capacity(L) | 90 | |
| Installation space(mm) | 900 | |
Precautions for the operation of a straight boom truck-mounted crane:
I. Before operation
- Check the crane for firm connections, no damaged wire rope, normal hydraulic system, and ensure key parts are intact. Also check vehicle brakes and tire pressure. Confirm solid and flat ground.
II. During operation
- Follow procedures, stay focused. Ensure lifted object is firmly bound. Lift smoothly, avoid overloading. Watch for obstacles when extending/retracting boom. Be careful near maximum angles/radii. Observe for abnormalities. Be cautious in windy conditions.
III. After operation
- Retract and fix boom, turn off hydraulic system and park safely. Regularly maintain and train operators.
